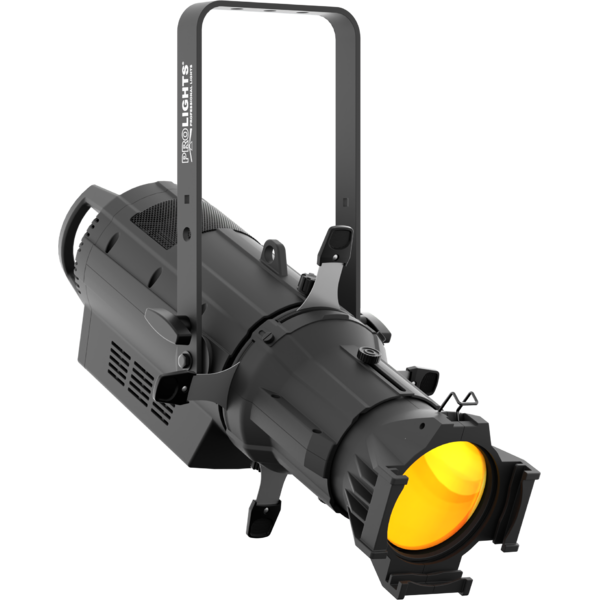

EclProfile FC

91x3W RGB + lime high power Full Colour LED ellipsoidal

EclProfile FC is a full colour LED ellipsoidal designed to deliver a full range of pastels, whites or saturates smoothly, consistently and both with or without gobos. The EclProfile FC 's RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the EclProfile FC is playing.

Main features:

  • RGB + Lime LED Ellipsoidal with HD dimming and extensive colour palette
  • High Definition optics for sharp gobo projection
  • Accepts industry standard accessories
See variants

PHOTO GALLERY

EclProfile FC
EclProfile FC
EclProfile FC
EclProfile FC
EclProfile FC
EclProfile FC

Technical specifications

LIGHT SOURCE
  • Source: 91x3W RGB + lime LEDs
  • Luminous flux: (5°) 3'538 lm - (10°) 4'088 lm - (14°) 3'811 lm - (19°) 4'273 lm - (26°) 4'210 lm - (36°) 5'321 lm - (50°) 4'287
  • Lux: (5°) 36'042 lx - (10°) 17'857 lx - (14°) 10'578 lx - (19°) 6'189 lx - (26°) 4'042 lx - (36°) 2'016 lx, (50°) 991lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / Z15 - 30° / Z25 - 50°
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGB + lime / full colour
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.700 K ~10.000K
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Special features: automatic software colour balance when fixture warms up - linear crossfade from a white to any color and virtual CTO app
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: Theater 1 / 3 / 5 / 17 channel - Tour 4 / 8 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
  • Output (at 230V): 6 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 342x506x530mm / 13.46''x19.92''x20.87''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
ECLFCBK
ECLFCBK (DISCONTINUED)
Black
ECLFCWH
ECLFCWH (END OF LIFE)
White

Accessories & Related Products

FCLECL
FCLECL
(optional)
Flight case for 8 pcs of ECLFC or ECLHDL series
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
ECLLB05BK
ECLLB05BK
(optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB14BK
ECLLB14BK
(optional)
14° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB19WH
ECLLB19WH
(optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB19BK
ECLLB19BK
(optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26BK
ECLLB26BK
(optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26WH
ECLLB26WH
(optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36WH
ECLLB36WH
(optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36BK
ECLLB36BK
(optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB50WH
ECLLB50WH
(optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50BK
ECLLB50BK
(optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLPRGHA
ECLPRGHA
(optional)
Gobo holder for ECL Profile fixtures, A size
ECLGH
ECLGH
(optional)
Gobo holder for ECL/ECLFC/ECLHDL profiler
ECLPRGH
ECLPRGH
(optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRIRIS
ECLPRIRIS
(optional)
Iris accessory for ECL Profile fixtures
ECLIRIS2
ECLIRIS2
(optional)
Steel iris diaphragm for ECLFC/ECLHDL profiler
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
ECLPROFILESEF1
ECLPROFILESEF1
(optional)
Soft edge filter and holder kit for ECL profile projectors series
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfc_A4_DATASHEET_(EN).pdf539KB
Letter datasheetEclfc_A4_DATASHEET_(IT).pdf525KB
Tender SpecificationEclfc_TENDER_SPECIFICATION.pdf4MB

User manual

File name File size Download
User manualEclfc_USER_MANUAL_ITEN.pdf5MB
User manualEclfc_Mounting_ETC_optics.pdf1003KB

DMX chart & personalities

File name File size Download
DMX chartEclfc_DMX_CHARTS.pdf66KB
ECLFC Firmware rev. 1.6
manufacturer fixture library (Link) Link
prolights_eclipsefc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipsefc_1ch.fdfDownload
eclipsefc_3ch.fdfDownload
eclipsefc_4ch.fdfDownload
eclipsefc_5ch.fdfDownload
eclipsefc_6ch.fdfDownload
eclipsefc_7ch.fdfDownload
eclipsefc_8ch.fdfDownload
eclipsefc_10ch.fdfDownload
eclipsefc_11ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@eclipse_fc@1_channel@initial.xmlpDownload
prolights@eclipse_fc@3_channel@initial.xmlpDownload
prolights@eclipse_fc@4_channel@initial.xmlpDownload
prolights@eclipse_fc@5_channel@initial.xmlpDownload
prolights@eclipse_fc@8_channel@initial.xmlpDownload
prolights@eclipse_fc@11_channel@initial.xmlpDownload
prolights@eclipse_fc@extended@tested_on_the_actual_fixture..xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipse fc theatre 1 channel.fix2Download
eclipse fc theatre 3 channel.fix2Download
eclipse fc theatre 5 channel.fix2Download
eclipse fc tour 4 channel .fix2Download
eclipse fc tour 8 channel.fix2Download
eclipse fc tour 11 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLFC_3D_SKETCHUP.zip7MB
3D revitECLFC_3D_REVIT.zip7MB
2DEclfc_CAD_2D.dwg6MB
3DECLFC_3D.zip8MB
Technical drawingEclfc_TECHNICAL_DRAWING.pdf705KB
VectorWorksVECTORWORKS_SYMBOLS.vwx3MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 07/03/2020 Firmware improving: Decreased the dimmer delay at dimmer begin for istant flash operation with very sharp bumps in intensity. Rev. 1
