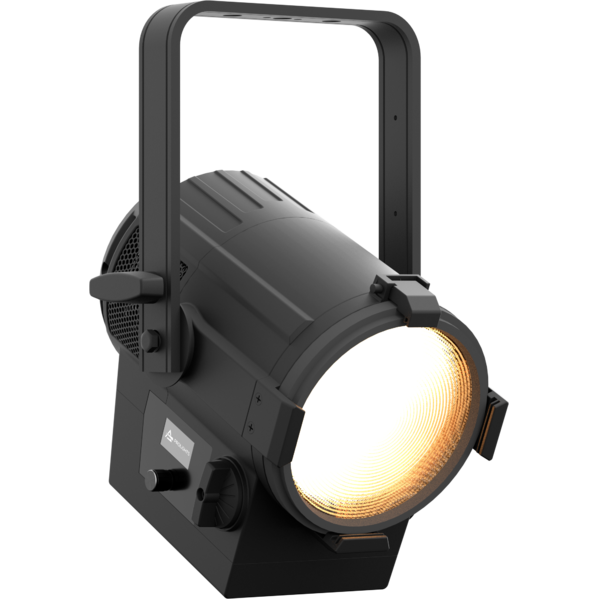

EclFresnel Jr

LED Fresnel with HB white source, to replace 650W lamp

EclFresnel Jr is the LED replacement for a standard tungsten 650 W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel Jr adds all the advantages of LED to the Fresnel.

Main features:

  • TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens options with 17° to 81° zoom range
  • Silent operation for studio and stage use
  • Battery ready, compatible with industry standard external batteries (optional)

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 70W high-power white LED
  • Source CCT: (TU) 3.000 K - (DY) 5.600K
  • Luminous flux: (TU) (17°) 2'859 lm; (81°) 4'631 @Full
  • Luminous flux: (DY) (17°) 3'656 lm ; (81°) 5'911 lm @ full
  • Lux: TU (17°) 1'293 lx - TU (81°) 205lx @5 m full
  • Lux: DY (17°) 1'624 lx - (81°) 254lx @5 m full
  • CRI: (TU) >97; (DY) >90
  • R9: (TU) >95; (DY) >53
  • TLCI: (TU) >97; (DY) >92
  • TM30 Rf: (TU) >94; (DY) >88
  • TM30 Rg: (TU) <103; (DY) >97
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 17° - 81° manual
  • Lens diameter: 150mm / 5.91''
  • Lens type: fresnel zoom lens
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 - 1 / 2 - 2 / 3 / 5ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Other: 16bit control of dimmer and colour
MOVEMENT
  • Pan: (pole operated version) 360° with manual regulation
  • Tilt: (pole operated version) 340° with manual adjustment
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 90W
  • Output (at 230V): 22 units on a single power line
  • Power factor: >0,95
BATTERY
  • Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
  • Recharge connection: connection for external battery throught XLR 4p
  • Other: Voltage range: 22,4V-33,6V
CONNECTIONS
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black (RAL 9004) or white (RAL 9010)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 235x360x260mm / 9.25''x14.17''x10.24''
  • Dimensions with PO system (WxHxD): 298x496x260mm / 11.73''x19.53''x10.24''
  • Weight: 6kg / 13.23lbs
  • Weight with PO system: 7,5kg / 16.53lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
Finishing
ECLFRESNELJTU
ECLFRESNELJTU
3.000 K
97
95
4'631 lm
Black
ECLFRESNELJTUWH
ECLFRESNELJTUWH (END OF LIFE)
3.000 K
97
95
4'631 lm
White
ECLFRESNELJDY
ECLFRESNELJDY
5.600 K
90
53
5'911lm
Black
ECLFRESNELJDYWH
ECLFRESNELJDYWH
5.600 K
90
53
5'911lm
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRSJBD
ECLFRSJBD
(Included)
Black&White& White barn door 8 directional flaps to adjust the light beam
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresnelj_A4_DATASHEET_(IT).pdf(16/06/2021)366KB
Letter datasheetEclfresnelj_A4_DATASHEET_(EN).pdf(31/10/2022)481KB
Tender SpecificationEclfresneljtu_TENDER_SPECIFICATION.pdf(20/07/2021)3MB
Tender SpecificationEclfresneljdy_TENDER_SPECIFICATION.pdf(20/07/2021)3MB

User manual

File name File size Download
User manualEclfresnelj_USER_MANUAL_EN.pdf(31/03/2025)5MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download
DMX chartEclfresnelj_DMX_CHARTS.pdf(03/05/2021)77KB

ECLFRESNELJTU Firmware rev. 1.1

manufacturer fixture library (Link) Link
prolights_eclipsefresneljtu.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneljtu@1ch.xmlDownload
prolights@eclipsefresneljtu@3ch.xmlDownload

ECLFRESNELJDY Firmware rev. 1.1

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Noise ReportEclfresneljtu_NOISE_REPORT.pdf(31/03/2025)635KB
Noise ReportEclfresneljdy_NOISE_REPORT.pdf(31/03/2025)635KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 04/01/2018
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 12/12/2018 Definitive stable version Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 12/12/2018 10 second default display backlight Rev. 1.0
