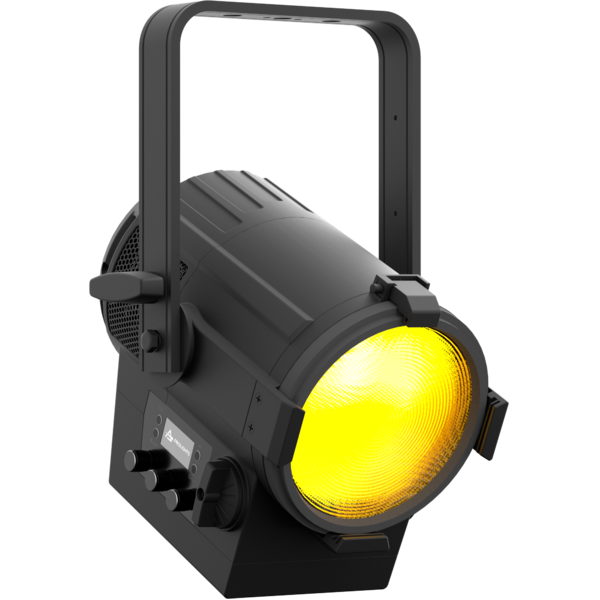

EclFresnel JrTW

LED Fresnel FC and Tunable White with colour correction, to replace 650W lamp

EclFresnel JrTW is an advanced LED replacement of traditional 650W Fresnel lamps, featuring 6 colour mixing delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction. The optical system harnesses the power of a 130W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with added ability to apply +/- green and magenta correction to match other sources of light. Featuring HDL dimming and tuning from 2.800 K to 10.000 K version with external battery capabilities, the EclFresnel JrTW delivers the performance and quality of output demanded from this level of luminaire.

Main features:

  • Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Silent operation for studio and stage use
  • Battery ready, compatible with industry standard external batteries (optional)
See variants

PHOTO GALLERY

EclFresnel JrTW
EclFresnel JrTW
EclFresnel JrTW
EclFresnel JrTW
EclFresnel JrTW
EclFresnel JrTW

Technical specifications

LIGHT SOURCE
  • Source: 130W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (16°) 1'610 lm - (80°) 2'952 @Full
  • Lux: (16°) 709 lx - (80°) 145lx @5 m full
  • CRI: 91 @3.200 K; 92 @5.600 K
  • R9: 95 @3.200 K; 93 @5.600 K
  • TLCI: 86 @5.600 K
  • TM30 Rf: 88 @3.200 K; 86 @5.600 K
  • TM30 Rg: 106 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 16° - 80° manual
  • Lens diameter: 6'' - 150mm / 0.24''
  • Lens type: fresnel zoom lens
COLOUR SYSTEM
  • Colour mixing: tunable white + colour
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body
  • Body colour: black (RAL9004), white finishing available (RAL9010)
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 106W
  • Output (at 230V): 22 units on a single power line
  • Power factor: >0,95
BATTERY
  • Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
  • Re-charge connection: connection for external battery throught XLR 4p
  • Other: Voltage range: 22,4V-33,6V
PHYSICAL
  • IP rating: IP20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 235x360x260mm / 9.25''x14.17''x10.24''
  • Weight: 6kg / 13.23lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT

Versions

Code
Finishing
ECLFRESNELJTW
ECLFRESNELJTW
Black
ECLFRESNELJTWWH
ECLFRESNELJTWWH
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRSJBD
ECLFRSJBD
(Included)
Black&White& White barn door 8 directional flaps to adjust the light beam
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresneljtw_A4_DATASHEET_(IT).pdf(04/05/2021)387KB
Letter datasheetEclfresneljt_A4_DATASHEET_(EN).pdf(31/10/2022)487KB
Tender SpecificationEclfresneljt_TENDER_SPECIFICATION.pdf(20/07/2021)3MB

User manual

File name File size Download
User manualEclfresneljtw_USER_MANUAL_EN.pdf(17/01/2025)5MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download
DMX chartEclfresneljtw_DMX_CHARTS.pdf(17/01/2025)147KB

ECLFRESNELJTW Firmware rev. 1.6

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsefrestw_12ch.hedDownload
prolights_eclipsefrestw_13ch.hedDownload
prolights_eclipsefrestw_16ch.hedDownload
prolights_eclipsefrestw_19ch.hedDownload
eclfresneltw_1ch.fdfDownload
eclfresneltw_2ch.fdfDownload
eclfresneltw_5ch1.fdfDownload
eclfresneltw_5ch2.fdfDownload
eclfresneltw_7ch1.fdfDownload
eclfresneltw_7ch2.fdfDownload
eclfresneltw_8ch.fdfDownload
eclfresneltw_9ch.fdfDownload
eclfresneltw_12ch.fdfDownload
eclfresneltw_13ch.fdfDownload
eclfresneltw_16ch.fdfDownload
eclfresneltw_19ch.fdfDownload
eclfresneltw_21ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@eclipse_fresnel_jtw@2_channel.xmlDownload
prolights@eclipse_fresnel_jtw@5_channel.xmlDownload
prolights@eclipse_fresnel_jtw@7_channel.xmlDownload
prolights@eclipse_fresnel_jtw@9_channel.xmlDownload
prolights@eclipse_fresnel_jtw@13_channel.xmlDownload
prolights@eclipse_fresnel_jtw@16_channel.xmlDownload
prolights@eclipse_fresnel_jtw@19_channel.xmlDownload
hdtwc_12ch_3_8.hog4showDownload
user created fresnel jtw 21ch rev 1.xmlDownload
manufacturer fixture library (Link) Link
eclipse fresnel jtw 9 channel.fix2Download
eclipse fresnel jtw 8 channel.fix2Download
eclipse fresnel jtw 7 channel 2.fix2Download
eclipse fresnel jtw 7 channel 1.fix2Download
eclipse fresnel jtw 5 channel 2.fix2Download
eclipse fresnel jtw 5 channel 1.fix2Download
eclipse fresnel jtw 21 channel.fix2Download
eclipse fresnel jtw 2 channel.fix2Download
eclipse fresnel jtw 19 channel.fix2Download
eclipse fresnel jtw 16 channel.fix2Download
eclipse fresnel jtw 13 channel.fix2Download
eclipse fresnel jtw 12 channel.fix2Download
eclipse fresnel jtw 1 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAEclfresneljt_3D.rfa(23/04/2021)784KB
3D sketchupECLFRESNELJT_3D_SKETCHUP.zip835KB
2DEclfresneljt_CAD_2D.dwg(23/04/2020)4MB
3DECLFRESNELJT_3D.zip1MB
2D cad symbolsEclfresneljt_CAD_2DSYMBOLS.dwg(23/04/2020)66KB
Technical drawingEclfresneljt_TECHNICAL_DRAWING.pdf(23/04/2020)367KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksECLFRESNELJT_SYMBOLS.zip1MB

Tech docs

File name File size Download
Noise ReportEclfresneljtw_NOISE_REPORT.pdf(09/12/2020)458KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 06/07/2023 New function:
  • Added 11CH DMX mode.
