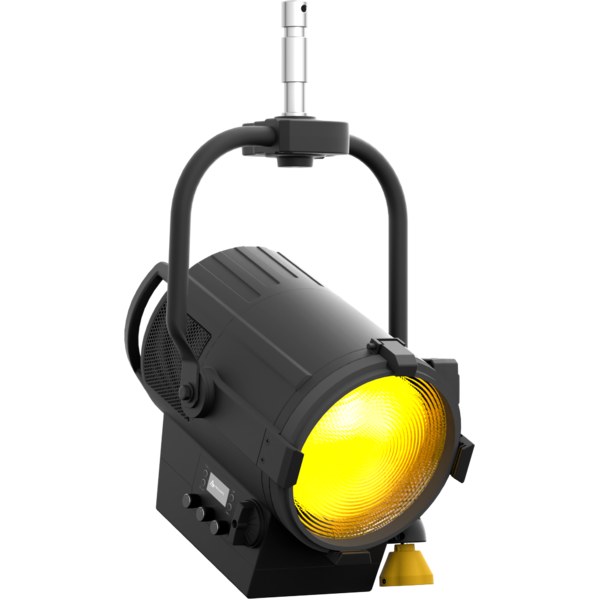

EclFresnel PTW

LED Fresnel pole operated FC and Tunable White with colour correction, to replace 1.000W lamp

EclFresnel PTW is an advanced LED replacement of traditional 1.000W Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction. The optical system harnesses the power of a 260 W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light. Featuring HDL dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel PTW delivers the performance and quality of output demanded from this level of luminaire.

Main features:

  • Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Silent operation for studio and stage use
See variants

PHOTO GALLERY

EclFresnel PTW
EclFresnel PTW
EclFresnel PTW
EclFresnel PTW
EclFresnel PTW
EclFresnel PTW

Technical specifications

LIGHT SOURCE
  • Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (17°) 4'653 lm - (91°) 7'896 @Full
  • Lux: (17°) 1'678 lx - (91°) 344lx @5 m full
  • CRI: 90 @3.200 K; 89 @5.600 K
  • R9: 80 @3.200 K; 87 @5.600 K
  • TLCI: 77 @5.600 K
  • TM30 Rf: 87 @3.200 K; 81 @5.600 K
  • TM30 Rg: 106 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 17° - 91° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: Fresnel zoom lens
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing:
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer and colour
BODY
  • Pan: 360° with manual regulation
  • Tilt: 340° with manual regulation
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: Sturdy die-cast aluminium body
  • Body colour: black (RAL 9004) or white (RAL 9010)
  • Other: spigot 28 mm
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 260W
  • Output (at 230V): 11 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: heat pipe with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
RAL
ECLFRESNELPTW
ECLFRESNELPTW
Black
RAL 9004
ECLFRESNELPTWWH
ECLFRESNELPTWWH
White
RAL 9010

Accessories & Related Products

9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
ECLFRSBD
ECLFRSBD
(Included)
Barn door with directional flaps to adjust the light beam
ECLFRSTPG
ECLFRSTPG
(Included)
Filter frame for ECLFRESNEL series
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresnelptw_A4_DATASHEET_(IT).pdf(04/05/2021)586KB
Letter datasheetEclfresnelpt_A4_DATASHEET_(EN).pdf(31/10/2022)568KB

User manual

File name File size Download
User manualEclfresnelptw_USER_MANUAL_EN.pdf(17/01/2025)5MB

DMX chart & personalities

File name File size Download
DMX chartEclfresnelptw_DMX_CHARTS.pdf(17/01/2025)152KB

ECLFRESNELPTW Firmware rev. 1.9

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsefrestw_12ch.hedDownload
prolights_eclipsefrestw_13ch.hedDownload
prolights_eclipsefrestw_16ch.hedDownload
prolights_eclipsefrestw_19ch.hedDownload
manufacturer fixture library (Link) Link
eclipsefresneltw_1ch.fdfDownload
eclipsefresneltw_2ch.fdfDownload
eclipsefresneltw_5ch1.fdfDownload
eclipsefresneltw_5ch2.fdfDownload
eclipsefresneltw_7ch.fdfDownload
eclipsefresneltw_9ch.fdfDownload
eclipsefresneltw_12ch.fdfDownload
eclipsefresneltw_13ch.fdfDownload
eclipsefresneltw_16ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipse_fres_tw_12ch@.xmlDownload
prolights@eclipse_fresnel_tw@2_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@5_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@7_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@9_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@13_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@16_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@19_channel@ma_library_update_v14.2.xmlpDownload
hdtwc_12ch.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipse fresnel tw 9 channel.fix2Download
eclipse fresnel tw 7 channel.fix2Download
eclipse fresnel tw 5 channel.fix2Download
eclipse fresnel tw 2 channel.fix2Download
eclipse fresnel tw 19 channel.fix2Download
eclipse fresnel tw 13 channel.fix2Download
eclipse fresnel tw 16 channel.fix2Download

Photometrics

File name File size Download
PhotometricsEclfresnelpt_PHOTOMETRICS_REPORT.pdf(15/05/2020)6MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings

File name File size Download
3D sketchupECLFRESNELPT_3D_SKETCHUP.zip6MB
2DEclfresnelpt_CAD_2D.dwg(14/05/2020)5MB
3DECLFRESNELPT_3D.zip2MB
Technical drawingEclfresnelpt_TECHNICAL_DRAWING.pdf(14/05/2020)600KB
VectorWorksECLFRESNELPT_SYMBOLS.zip3MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.9 STABLE 26/06/2023 New function:
  • Added 11CH DMX mode.
 Rev. 1
Rev. 2
Rev. 1.2
Rev. 1.1
