ECLFRESNELT
PROLIGHTS

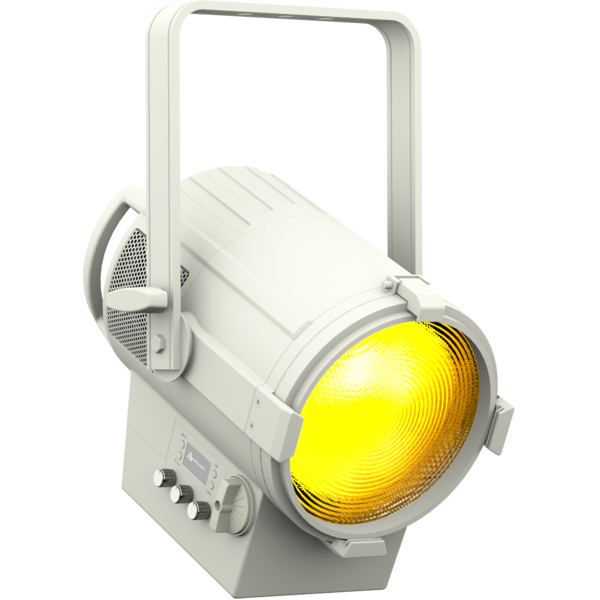

EclFresnel TW

LED Fresnel FC and Tunable White with colour correction, to replace 1.000W lamp

EclFresnel TW is an advanced LED replacement of traditional 1.000W Fresnel lamps.
Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light.
Featuring HDL dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel TW delivers the performance and quality of output demanded from this level of luminaire.

Main features:

  • Tunable White 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Silent operation for studio and stage use
See variants

PHOTO GALLERY

EclFresnel TW
EclFresnel TW
EclFresnel TW
EclFresnel TW
EclFresnel TW
EclFresnel TW

Technical specifications

LIGHT SOURCE
  • Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K ~ 10.000
  • Luminous flux: (17°) 4'653 lm - (91°) 7'896 @full
  • Lux: (17°) 1'678 lx - (91°) 344lx @5 m full
  • CRI: 90 @3.200 K; 89 @5.600 K
  • R9: 80 @3.200 K; 87 @5.600 K
  • TLCI: 77 @5.600 K
  • TM30 Rf: 87 @3.200 K; 81 @5.600 K
  • TM30 Rg: 106 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 17° - 91° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: Fresnel zoom lens
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing: tunable white + colour
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 260W
  • Standby power: 33,9 W
  • Output (at 230V): 17 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
  • Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 7,5kg / 16.53lbs
  • Weight with PO system: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
ECLFRESNELTW
ECLFRESNELTW
Black
ECLFRESNELTWWH
ECLFRESNELTWWH
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures
ECLFRSBD
ECLFRSBD
(included)
Barn door with directional flaps to adjust the light beam
FCLECLFRS
FCLECLFRS
(optional)
Flight case for 4x ECLFRESNEL
ECLFRSTPG
ECLFRSTPG
(included)
Filter frame for ECLFRESNEL series
EFSBUFDS
EFSBUFDS
(optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresnelt_A4_DATASHEET_(EN).pdf533KB
Letter datasheetEclfresneltw_A4_DATASHEET_(IT).pdf523KB
Tender SpecificationEclfresnelt_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfresneltw_DMX_CHARTS.pdf200KB
ECLFRESNELTW Firmware rev. 1.8
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsefrestw_12ch.hedDownload
prolights_eclipsefrestw_13ch.hedDownload
prolights_eclipsefrestw_16ch.hedDownload
prolights_eclipsefrestw_19ch.hedDownload
eclfresneltw_1ch.fdfDownload
eclfresneltw_2ch.fdfDownload
eclfresneltw_5ch1.fdfDownload
eclfresneltw_5ch2.fdfDownload
eclfresneltw_7ch1.fdfDownload
eclfresneltw_7ch2.fdfDownload
eclfresneltw_8ch.fdfDownload
eclfresneltw_9ch.fdfDownload
eclfresneltw_12ch.fdfDownload
eclfresneltw_13ch.fdfDownload
eclfresneltw_16ch.fdfDownload
eclfresneltw_19ch.fdfDownload
eclfresneltw_21ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipse_fres_tw_12ch@.xmlDownload
prolights@eclipse_fresnel_tw@2_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@5_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@7_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@9_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@13_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@16_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@19_channel@ma_library_update_v14.2.xmlpDownload
eclfresneltw_12ch.zipDownload
eclfresneltw_5ch1.zipDownload
eclfresneltw_5ch2.zipDownload
eclfresneltw_19ch.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipse fresnel tw 9 channel.fix2Download
eclipse fresnel tw 7 channel.fix2Download
eclipse fresnel tw 5 channel.fix2Download
eclipse fresnel tw 2 channel.fix2Download
eclipse fresnel tw 19 channel.fix2Download
eclipse fresnel tw 16 channel.fix2Download
eclipse fresnel tw 13 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLFRESNELT_3D_SKETCHUP.zip884KB
3D RFAEclfresnelt_3D.rfa720KB
2DEclfresnelt_CAD_2D.dwg23MB
3DECLFRESNELT_3D.zip1MB
2D cad symbolsEclfresnelt_CAD_2DSYMBOLS.dwg104KB
Technical drawingEclfresnelt_TECHNICAL_DRAWING.pdf823KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLFRESNELT_SYMBOLS.zip1MB

Tech docs

File name File size Download
Noise ReportEclfresneltw_NOISE_REPORT.pdf490KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.9 STABLE 28/03/2023 New function:
  • Added 11CH DMX mode.
1.8 STABLE 07/10/2020 Changed default setting on White Balance function from OFF to ADJUST. Rev. 1
