ECLFRJPTW
PROLIGHTS

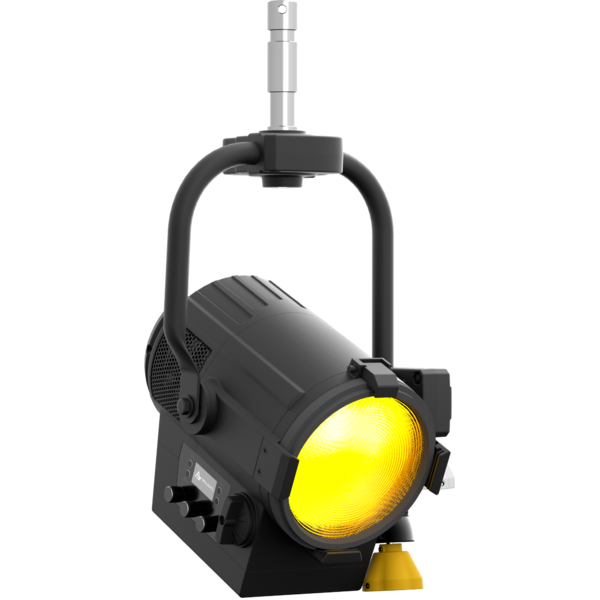

EclFresnel JrPTW

ORDER CODE: ECLFRJPTW

LED Fresnel pole operated FC and Tunable White with colour correction, to replace 650W lamp

EclFresnel JrPTW is an advanced LED replacement of traditional 650W Fresnel lamps, featuring 6 colour mixing delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction. The optical system harnesses the power of a 130W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with added ability to apply +/- green and magenta correction to match other sources of light. Featuring HDL dimming and tuning from 2.800 K to 10.000 K version with external battery capabilities, the EclFresnel JrPTW delivers the performance and quality of output demanded from this level of luminaire.

Main features:

  • Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Silent operation for studio and stage use
  • Battery ready, compatible with industry standard external batteries (optional)
See variants

PHOTO GALLERY

EclFresnel JrPTW
EclFresnel JrPTW
EclFresnel JrPTW
EclFresnel JrPTW

Technical specifications

LIGHT SOURCE
  • Source: 130W 6 colour custom LEDs source (red, orange, cyan, royal blue, green, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (16°) 1'610 lm - (80°) 2'952 @full
  • Lux: (16°) 709 lx - (80°) 145lx @5 m full
  • CRI: 91 @3.200 K; 92 @5.600 K
  • R9: 91 @3.200 K; 92 @5.600 K
  • TLCI: 86 @5.600 K
  • TM30 Rf: 88 @3.200 K; 86 @5.600 K
  • TM30 Rg: 106 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 16° - 80° manual
  • Lens diameter: 6'' - 150mm / 0.24''
  • Lens type: fresnel zoom lens
COLOUR SYSTEM
  • Colour mixing: tunable white + colour
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan angle: 360° with manual regulation
  • Tilt angle: 340° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: Spigot 28 mm
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 106W
  • Output (at 230V): 23 units on a single power line
  • Power factor: >0,95
BATTERY
  • Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
  • Re-charge connection: connection for external battery throught XLR 4p
  • Other: Voltage range: 22,4V-33,6V
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 298x496x260mm / 11.73''x19.53''x10.24''
  • Weight: 7,5kg / 16.53lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSJBP4
ECLFRSJBP4
(Optional)
Battery pack kit for EclFresnelJ serie
ECLFRSPG
