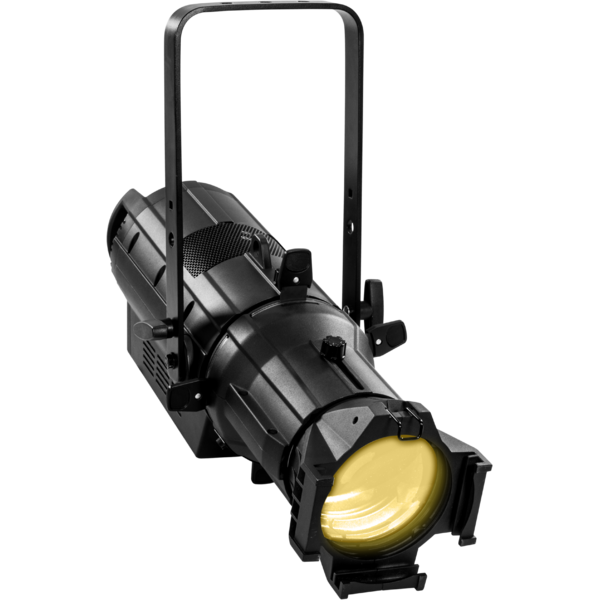

EclProfile HD

200W high power LED ellipsoidal with white source

EclProfile HDL is a true LED replacement for the traditional 750 W Tungsten ellipsoidal luminaire. The optical system harnesses the power of a 200W COB LED to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing.
Featuring HDL dimming and available in 3.100 K or 5.000 K, the EclProfile HDL delivers the performance and quality of output demanded from this level of the luminaire.

Main features:

  • Warm or cold White LED ellipsoidal with HD dimming and high CRI
  • High Definition optics for sharp gobo projection
  • Accepts industry standard accessories

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 200W high-power white LED
  • CCT: TU 3.045 K - DY 5.000
  • Luminous flux: (26°) TU 12'323 lm - DY 15'526
  • Lux: TU: (19°) 19'235 lx - (26°) 13'738 lx - (36°) 8'578 lx - (50°) 3'601lx @3 m
  • Lux: DY: (19°) 24'769 lx - (26°) 17'749 lx - (36°) 10'992lx - (50°) 5'109lx @3 m
  • CRI: (TU) > 90; (DY) > 80
  • Other: TLCI: (TU) 19°: 90,5 - 26°: 89,7 - 36°: 92 - 50°: 90
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / Z15-30° / Z25-50°
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 2 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 226W
  • Max power consumption (at 120V): 229W
  • Output (at 230V): 7 units on a single power line
PHYSICAL
  • IP rating: IP20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 342x506x530mm / 13.46''x19.92''x20.87''
  • Weight: 9,2kg / 20.28lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Housing
ECLHDDYBK
ECLHDDYBK (END OF LIFE)
5.000 K
> 80 Ra
Black
ECLHDDYWH
ECLHDDYWH (END OF LIFE)
5.000 K
> 80 Ra
White
ECLHDTUBK
ECLHDTUBK (END OF LIFE)
3.045 K
> 90 Ra
Black
ECLHDTUWH
ECLHDTUWH (END OF LIFE)
3.045 K
90 Ra
White

Accessories & Related Products

C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
FCLECL
FCLECL
(Optional)
Flight case for 8 pcs of ECLFC or ECLHDL series
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
ECLLB05BK
ECLLB05BK
(Optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB19WH
ECLLB19WH
(Optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB19BK
ECLLB19BK
(Optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26BK
ECLLB26BK
(Optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26WH
ECLLB26WH
(Optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36BK
ECLLB36BK
(Optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB36WH
ECLLB36WH
(Optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50BK
ECLLB50BK
(Optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB50WH
ECLLB50WH
(Optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLIRIS2
ECLIRIS2
(Optional)
Steel iris diaphragm for ECLFC/ECLHDL profiler
ECLGH
ECLGH
(Optional)
Gobo holder for ECL/ECLFC/ECLHDL profiler
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualEclhd_USER_MANUAL_ITEN.pdf(24/04/2020)5MB
User manualEclhddybk_USER_MANUAL_ITEN.pdf(24/04/2020)5MB
User manualEclhddybk_Mounting_ETC_optics.pdf(11/12/2023)1003KB
User manualEclhddywh_Mounting_ETC_optics.pdf(11/12/2023)1003KB
User manualEclhdtuwh_Mounting_ETC_optics.pdf(11/12/2023)1003KB
User manualEclhdtubk_Mounting_ETC_optics.pdf(11/12/2023)1003KB

DMX chart & personalities

File name File size Download
DMX chartEclhd_DMX_CHARTS.pdf(24/04/2020)50KB

ECLHDDYBK Firmware rev. 1.0

manufacturer fixture library (Link) Link
prolights_eclipsehddy.d4Download
manufacturer fixture library (Link) Link

ECLHDTUBK Firmware rev. 1.0

manufacturer fixture library (Link) Link
prolights_eclipsehdtu.d4Download
manufacturer fixture library (Link) Link
prolights_eclipsehdtu_2ch.hedDownload
prolights_eclipsehdtu_5ch.hedDownload
prolights_eclipsehdtu_1ch.hedDownload

Photometrics

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 14/11/2015 Definitive stable version
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 14/11/2015 Definitive stable version
