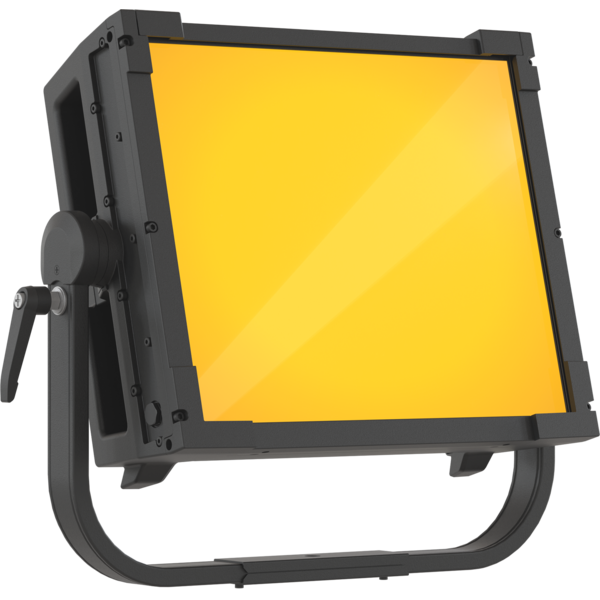

EclPanel IPSoft1x1 new

ORDER CODE: ECLPANELIPSOFT1X1

1x1 Soft Source LED Panel, IP65 with 300W power and 6 colors source

The EclPanel IPSoft1x1 is a 1x1 format IP65 Soft Light, featuring high quality of light in all weather conditions.

EclPanel IPSoft range is engineered with a 6-color LED light source controllable in 4 section, maximizing the light flux and delivering a beautiful soft projection with outstanding quality and rich color spectrum.

Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.

Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.

SPEKTRA

Main features:

  • 300W 6 color Soft Light in 1x1 format
  • IP65 water and dust resistant
  • 4 section pixel control and built-in lighting effects for film applications
  • Silent operation with multiple fan modes
See variants

PHOTO GALLERY

EclPanel IPSoft1x1
EclPanel IPSoft1x1
EclPanel IPSoft1x1
EclPanel IPSoft1x1

Technical specifications

LIGHT SOURCE
  • Source: 300W 6 colour LEDs source
  • Luminous flux: (HB) 32'640 lm - (HQ) 28'471 lm @3.200 K
  • Luminous flux: (HB) 32'544 lm - (HQ) 27'321 lm @5.600 K
  • Lux: (HB) 514 lx - (HQ) 447lx @5 m 3.200 K
  • Lux: (HB) 512 lx - (HQ) 428lx @5 m 5.600K
  • CRI: 95,6 @3.200K; 96 @5.600 K
  • R9: 93,8 @3200K; 96 @5.600 K
  • TLCI: 85 @3200K; 92 @5.600 K
  • TM30 Rf: > 92 @3.200K; > 92 @5.600 K
  • TM30 Rg: < 106 @3.200K; < 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 102°
  • Field angle: 157°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, Gel, HSI, Source Emulation
  • CCT: CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation
  • White presets: 1.850 K - 20.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: color space selection, linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Stand Alone: selectable mode through 4 RGB backlight push-encoders
  • Pixel control: 4 section control
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: 3.5" with new UI
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Other: Ethernet pass through in case of failure
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 6 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 300W
  • Standby power: 110V (60Hz): 13,2W; 230V (50Hz): 12,9W
  • Output (at 230V): 9 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Seetronic RJ45 IN/OUT
  • Power connection: IP65 Seetronic powerCON TRUE IP65 IN/OUT
  • Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V
  • Dimensions (WxHxD): 529x433x142mm / 20.83''x17.05''x5.59''
  • Weight: 12kg / 26.46lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products
