ECLPARFC
PROLIGHTS
end of life

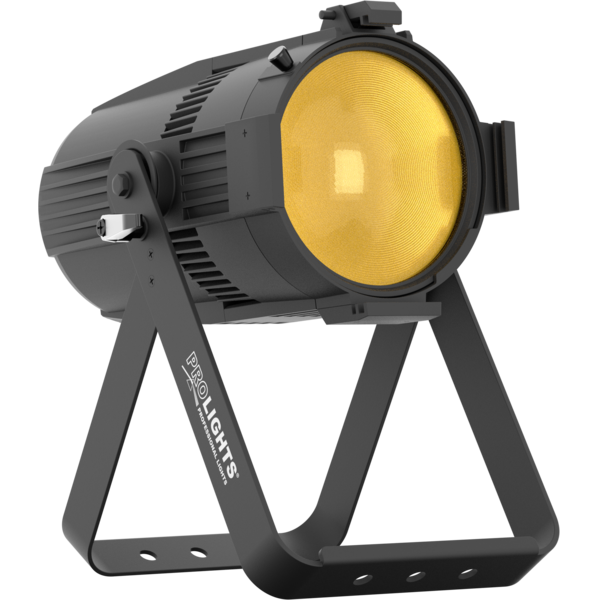

EclPar FC

ORDER CODE: ECLPARFC

150W RGB + Warm White HQ and flexible LED PAR

EclPar FC is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TVs and corporate applications. EclPar FC features a 150W RGB + Warm White and delivers a superior white CTC with +/- tint control, red-shift (CRI > 95 and R9 > 98 @3.200 K) and colour mixing. The fixture includes an extensive range of accessories including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar FC features a smooth 16-bit dimming as well as RDM control and adjustable PWM providing eye-candy.

Main features:

  • 150W RGB + Warm White delivering precise whites, +/-green correction (CRI > 95 and R9 > 98 @3.200 K) and colour mixing
  • Flex lens system: 24° on-board - 73° included - 40° optional
  • Silent operation and adjustable PWM
See variants

PHOTO GALLERY

EclPar FC
EclPar FC
EclPar FC
EclPar FC

Technical specifications

LIGHT SOURCE
  • Source: 150W RGB + Warm White LEDs
  • Source CCT: 2.800 K - 6.500K
  • Luminous flux: (24°) 5'983 lm - (73°) 5'774 @Full
  • Lux: (24°) 1'040 lx - (73°) 166lx @5 m full
  • CRI: 95 @3.200 K; 92 @5.600 K
  • R9: 98 @3.200 K; 96 @5.600 K
  • TLCI: 85 @5.600 K
  • TM30 Rf: 92 @3.200 K; 90 @5.600 K
  • TM30 Rg: 105 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on board) 24° or (included) 73°
  • Field angle: (on board) 28° or (included) 104°
  • Lens diameter: 163mm / 6.42''
  • Lens type: fresnel lens
  • Additional optics: 24° lens on board - 73° lens included - 40° lens optional - egg crate optional - barndoors optional - gel frame holder included
  • Other: 12° lens not available
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 6.500K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: (theatre) 1 / 2 / 4 / 5 / 6 / 10 / 15 / 17 ch - (tour) 4 / 6 / 10 / 15ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 150W
  • Output (at 230V): 14 units on a single power line
  • Power factor: > 0.92
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 316x404x317mm / 12.44''x15.91''x12.48''
  • Weight: 5,7kg / 12.57lbs
INSTALLATION
  • Suspension and fixing: any position with quick-lock omega brackets
  • Hardware on-board: on board mechanics for rigging to the ceiling
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECLPARBD
ECLPARBD
(Optional)
Barn door with directional flaps to adjust the light beam for ECLPAR series
FCLECLPAR
FCLECLPAR
(Optional)
Flightcase for 6 pcs of ECLPAR
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
ECLPARLENS24
ECLPARLENS24
(Included)
24° lens for ECLPAR projectors series
ECLPARLENS40
ECLPARLENS40
(Optional)
40° lens for ECLPAR projectors series
ECLPAREC
ECLPAREC
(Optional)
Egg crate for ECLPAR projectors series
ECLPARLENS65
ECLPARLENS65
(Included)
73° lens for ECLPAR projectors series
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclparfc_A4_DATASHEET_(IT).pdf(05/05/2021)415KB
Letter datasheetEclparfc_A4_DATASHEET_(EN).pdf(03/09/2021)419KB
Tender SpecificationEclparfc_TENDER_SPECIFICATION.pdf(21/10/2020)4MB

User manual

File name File size Download
User manualEclparfc_USER_MANUAL.pdf(11/12/2020)3MB

DMX chart & personalities

File name File size Download
DMX chartEclparfc_DMX_CHARTS.pdf(11/12/2020)64KB

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAEclparfc_3D.rfa(23/04/2021)500KB
3D SKPEclparfc_3D.skp(23/07/2021)502KB
2DEclparfc_CAD_2D.dwg(23/04/2020)8MB
3DEclparfc_CAD_3D.dwg(19/07/2021)588KB
2D cad symbolsEclparfc_CAD_2DSYMBOLS.dwg(23/04/2020)32KB
Technical drawingEclparfc_TECHNICAL_DRAWING.pdf(23/04/2020)478KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(04/10/2021)496KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 31/05/2021
1.4 STABLE 18/08/2020 Improved fan management Rev. 1.0
