ECLPARIPMVW
PROLIGHTS

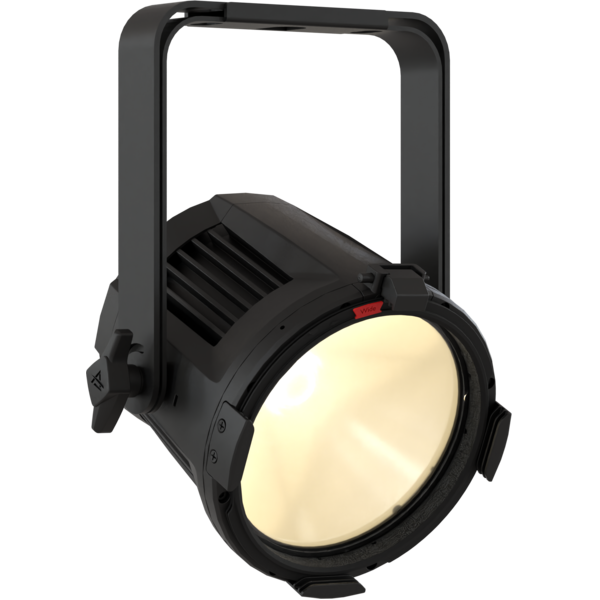

EclPar IPMVW

100W IP65 Variable White single source LED PAR

EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control.
Its LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.
The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas  silent operations are required.
The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

Main features:

  • 100W Variable White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° and 60° optional
  • IP65 for exterior application, fan free
See variants

PHOTO GALLERY

EclPar IPMVW
EclPar IPMVW
EclPar IPMVW
EclPar IPMVW
EclPar IPMVW

Technical specifications

LIGHT SOURCE
  • Source: 100W Variable White LED
  • Luminous flux: (15°) 4'571 lm; (30°) 4'329 lm; (60°) 4'414 @Full
  • Lux: (15°) 3'072 lx; (30°) 451 lx; (60°) 163lx @5 m full
  • CRI: 97,6 @full; 97,1 @2'700K; 96,4 @6'500K
  • R9: 95 @full; 83,7 @2'700K; 94,1 @6'500K
  • TLCI: 99 @full; 97 @2'700K; 98 @6'500K
  • TM30 Rf: 93,3 @full; 93,7 @2'700K; 91,5 @6'500K
  • TM30 Rg: 100,5 @full; 97,1 @2'700K; 98,1 @6'500K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 15° - (opt) 30°, 60°
  • Field angle: (on-board) 24°
  • Lens diameter: 172mm / 6.77''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 4 / 5 / 9 / 11ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 117W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
  • Weight: 4,1kg / 9.04lbs
INSTALLATION
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Other: Front mount holder for accessories as barn door, filter frame
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
BOX CONTENT

Versions

Code
Finishing
ECLPARIPMVWBK
ECLPARIPMVWBK
Black

Accessories & Related Products

FCLECLPARIPM
FCLECLPARIPM
(Optional)
Flight case for 6 pcs of ECLPARIPM series
EPIPMBAG1U
EPIPMBAG1U
(Optional)
Empty ABS case for 1 pc of ECLPARIPM series
EPIPMOS25BRK
EPIPMOS25BRK
(Optional)
Optional bracket kit, OS25PLUS compatible, for ECLPARIPM series
ECLPARIPMB4DBK
ECLPARIPMB4DBK
(Optional)
Barn door with 4 directional flaps to adjust the light beam for ECLPARIPM, black
ECLPARIPMBDBK
ECLPARIPMBDBK
(Optional)
Barn door with 8 directional flaps to adjust the light beam, ECLPARIPM, black
ECLPARIPMWKBK
ECLPARIPMWKBK
(Optional)
CRMX Timo Fx kit for ECLPARIP serie, black
EPIPMLENS15
EPIPMLENS15
(Included)
ECLPARIPM series 15° lens
EPIPMLENS30
EPIPMLENS30
(Optional)
ECLPARIPM series 30° lens
EPIPMLENS60
EPIPMLENS60
(Optional)
ECLPARIPM series 60° lens
EPIPMFHBK
EPIPMFHBK
(Optional)
Filter holder for ECLPARIPM series, black
EPIPMFILT1020
EPIPMFILT1020
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x20°
EPIPMFILT1040
EPIPMFILT1040
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x40°
EPIPMFILT1060
EPIPMFILT1060
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 10°x60°
EPIPMFILT3060
EPIPMFILT3060
(Optional)
Light diffusion filter for ECLPARIPM series, asymmetric 30°x60°
EPIPMFSNOOTBK
EPIPMFSNOOTBK
(Optional)
Full snoot for ECLPARIPM series, black
EPIPMFSNOOTL16BK
EPIPMFSNOOTL16BK
(Optional)
16cm lenght full snoot for ECLPARIPM series, black
EPIPMHLOUVREBK
EPIPMHLOUVREBK
(Optional)
Honeycomb louvre for ECLPARIPM series, black
EPIPMCLOUVREBK
EPIPMCLOUVREBK
(Optional)
Concentric louvre for ECLPARIPM series, black
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958215L03
958215L03
(Optional)
3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclparipmvw_LETTER_DATASHEET_(EN).pdf(15/12/2023)483KB
Letter datasheetEclparipmvw_A4_DATASHEET_(EN).pdf(15/12/2023)483KB
Tender SpecificationEclparipmvw_TENDER_SPECIFICATION.pdf(27/11/2023)3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclparipmvw_DMX_CHARTS.pdf(10/01/2024)118KB

ECLPARIPMVW Firmware rev. 1.1.03.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclparipmvw_3D.skp(09/05/2023)437KB
2D cad symbolsEclparipmvw_CAD_2DSYMBOLS.dwg(25/08/2023)25KB
3DEclparipmvw_CAD_3D.dwg(09/05/2023)566KB
2DECLPARIPMVW_2D.zip8MB
Technical drawingECLPARIPMVW_TECHNICAL DRAWINGS.zip896KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(16/11/2023)491KB

Tech docs

File name File size Download
Noise ReportEclparipmvw_NOISE_REPORT.pdf(20/11/2023)637KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.03.0 STABLE 23/10/2025 Improvement:
  • Improved Stand Alone section.
  • Improved Stand Alone PIDs in RDM.
