ECLPENDANTSVW
PROLIGHTS

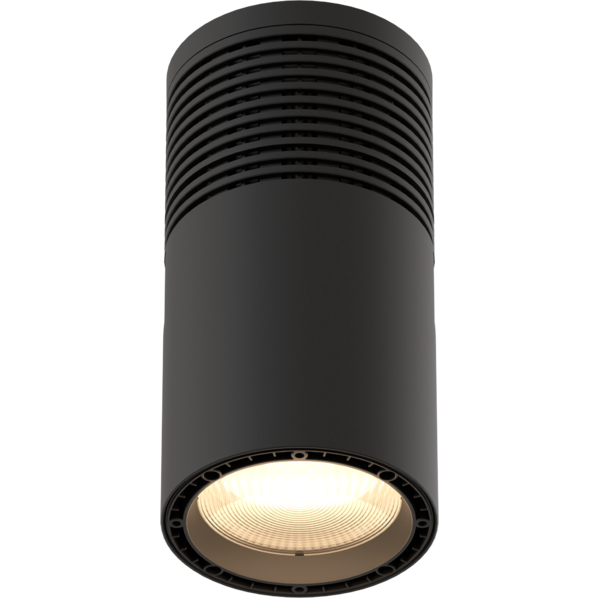

EclPendant SVW

50W Variable White House light with passive cooling

The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.

Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.

User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.

Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.



* Please note: The hanging bracket is not included with the product.

5 YEARS WARRANTY

Main features:

  • House light with 50W Variable White LED source with passive cooling
  • 100-240 VAC or 48 VDC power input. Control via DALI, DMX, RDM
  • Extensive mounting option, optics and accessories available
See variants

PHOTO GALLERY

EclPendant SVW
EclPendant SVW
EclPendant SVW
EclPendant SVW

Technical specifications

LIGHT SOURCE
  • Source: 50W Variable White LED
  • Source CCT: 2'700K - 6'500KK
  • Luminous flux: (2'700K) 2'751 lm; (6'500K) 3'580 lm; (FULL) 3'230
  • Lux: (2'700K) 651 lx; (6'500K) 850 lx; (FULL) 768lx @5 m
  • CRI: 96,8 @2'700K; 96,1 @6'500K; 95,8 @ full
  • R9: 97,9 @2'700K; 95,2 @6'500K; 82,7 @ full
  • TLCI: 98 @2'700K; 96 @6'500K; 98 @ full
  • TM30 Rf: 95,2 @2'700K; 90,3 @6'500K; 92,3 @ full
  • TM30 Rg: 102,3 @2'700K; 99,3 @6'500K; 102,1 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 100mm / 3.94''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CCT control
  • Colour wheel: built-in white presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DALI Type8, DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 5 / 9 / 13ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Screw terminal block
  • Signal connection: Screw terminal block
  • Wireless Connection: optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible (Order code SP018409)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption (230V): 60W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black (RAL 9004) or white (RAL 9010)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 135x300x135mm / 5.31''x11.81''x5.31''
  • Weight: 3kg / 6.61lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTSVWBK
ECLPENDANTSVWBK
Black
ECLPENDANTSVWWH
ECLPENDANTSVWWH
White

Accessories & Related Products

SP018409
SP018409
(Optional)
WIRELESS PCB CRMX - W-DMX TiMo Fx
PLCPW7500D65B
PLCPW7500D65B
(Optional)
Power PVC cable H05VV-F 3G0,75, 1 meter lenght, black
PLCPW7500D65W
PLCPW7500D65W
(Optional)
Power PVC cable H05VV-F 3G0,75, 1 meter lenght, white
ECLPENDSLENS20
ECLPENDSLENS20
(Included)
ECLPENDANTS series 20° lens
ECLPENDSLENS40
ECLPENDSLENS40
(Optional)
ECLPENDANTS series 40° lens
ECLPENDSLENS60
ECLPENDSLENS60
(Optional)
ECLPENDANTS series 60° lens
ECLPENDSHGBRKBK
ECLPENDSHGBRKBK
(Optional)
Hanging bracket for ECLPENDANTS series, black
ECLPENDSHGBRKWH
ECLPENDSHGBRKWH
(Optional)
Hanging bracket for ECLPENDANTS series, white
ECLPENDSRECSKITBK
ECLPENDSRECSKITBK
(Optional)
Ceiling recessed kit for ECLPENDANTS series, black
ECLPENDSRECSKITWH
ECLPENDSRECSKITWH
(Optional)
Ceiling recessed kit for ECLPENDANTS series, white
ECLPENDSHSNOOTBK
ECLPENDSHSNOOTBK
(Optional)
Half snoot for ECLPENDANTS series, black
ECLPENDSHSNOOTWH
ECLPENDSHSNOOTWH
(Optional)
Half snoot for ECLPENDANTS series, white
ECLPENDSFSNOOTBK
ECLPENDSFSNOOTBK
(Optional)
Full snoot for ECLPENDANTS series, black
ECLPENDSFSNOOTWH
ECLPENDSFSNOOTWH
(Optional)
Full snoot for ECLPENDANTS series, white
ECLPENDSHLOUVREBK
ECLPENDSHLOUVREBK
(Optional)
Honeycomb louvre for ECLPENDANTS series, black
ECLPENDSHLOUVREWH
ECLPENDSHLOUVREWH
(Optional)
Honeycomb louvre for ECLPENDANTS series, white
ECLPENDSCLOUVREBK
ECLPENDSCLOUVREBK
(Optional)
Concentric louvre for ECLPENDANTS series, black
ECLPENDSCLOUVREWH
ECLPENDSCLOUVREWH
(Optional)
Concentric louvre for ECLPENDANTS series, white
ECLPENDSBDBK
ECLPENDSBDBK
(Optional)
Barndoor with 4 directional flaps to adjust the light beam for ECLPENDANTS,black
ECLPENDSBDWH
ECLPENDSBDWH
(Optional)
Barndoor with 4 directional flaps to adjust the light beam for ECLPENDANTS,white
ECLPENDSCEILKITBK
ECLPENDSCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTS series, black
ECLPENDSCEILKITWH
ECLPENDSCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTS series, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKABK
ECLPENDWALLBRKABK
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDWALLBRKAWH
ECLPENDWALLBRKAWH
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
PLCDX53D5
PLCDX53D5
(Optional)
120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
PLCPD7501P14D
PLCPD7501P14D
(Optional)
Power & DMX 120 Ohm, 1 meter length, not suitable for track adapter connection
PLCPD7501P68D
PLCPD7501P68D
(Optional)
Power & DMX 120 Ohm
PLCYA7501P14D
PLCYA7501P14D
(Optional)
YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpendantsvw_LETTER_DATASHEET_(EN).pdf(25/08/2025)416KB
Letter datasheetEclpendantsvw_A4_DATASHEET_(ITA).pdf(25/08/2025)417KB
Letter datasheetEclpendantsvw_A4_DATASHEET_(EN).pdf(25/08/2025)418KB
Tender SpecificationEclpendantsvw_TENDER_SPECIFICATION.pdf(19/02/2024)219KB

User manual

File name File size Download
User manualEclpendantsvw_USER_MANUAL_EN.pdf(25/09/2024)6MB
User manualEclpendantsvw_General_Safety_Information.pdf(30/08/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartEclpendantsvw_DMX_CHARTS.pdf(27/02/2024)181KB

ECLPENDANTSVW Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclpendant_s_vw.hog5libDownload
eclpendant_s_vw.hog4libDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclpendantsvw_3D.skp(29/12/2023)608KB
2DECLPENDANTSVW_2D.zip9MB
3DEclpendantsvw_CAD_3D.dwg(29/12/2023)99KB
2D cad symbolsECLPENDANTSVW_2DSYMBOLS.zip89KB
Technical drawingECLPENDANTSVW_TECHNICAL DRAWINGS.zip2MB
VectorWorksECLPENDANTSVW_SYMBOLS.zip2MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download
Noise ReportEclpendantsvw_NOISE_REPORT.pdf(20/05/2024)578KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 27/06/2024 Fixed Bug:
  • Device freezes every time you enter the Information/Wireless Quality menu. A reboot is required.

Info Request

News

Music & Lights announces the upcoming arrival of 3,000 sqm of URMIII for the Italian market.
April 09, 2026
Music & Lights announces the upcoming arrival of 3,000 sqm of URMIII for the Italian market.
Music & Lights , exclusive distributor for the Italian market of Unilumin Rental solutions, announces the upcoming arrival of 2,000 sqm of URMIII P2.6 U-Shield   and 1,000 sqm of URMIII P3.9 Outdoor. Two complementary stocks, indoor and outdoor, designed
Astra Profile500LTIP Chosen for Finland's 27th KONGRESSI Meetings & Events
April 08, 2026
Astra Profile500LTIP Chosen for Finland's 27th KONGRESSI Meetings & Events
Now in its 27th edition, KONGRESSI meetings & events , one of Finland 's leading b2b events for the meetings and events industry, brought together the key buyers, professionals and service providers of the sector at Helsinki Expo and Convention Centre
Music & Lights at MIR 2026 with the Latest Innovations and a Large Demo Area
April 07, 2026
Music & Lights at MIR 2026 with the Latest Innovations and a Large Demo Area
Music & Lights will be exhibiting at MIR 2026 , the leading Italian trade show dedicated to multimedia integration and professional entertainment technologies, taking place at the Rimini Expo Center from 12 to 14 April 2026. At Stand A3/087, the largest
PROLIGHTS Returns to MIR 2026 with the Premiere of SunBar FLX
April 07, 2026
PROLIGHTS Returns to MIR 2026 with the Premiere of SunBar FLX
PROLIGHTS will be exhibiting at MIR 2026 , the leading Italian trade show for multimedia integration and professional entertainment technologies, held at the Rimini Expo Center from 12 to 14 April. At Stand A3/087, visitors will have the opportunity to
PROLIGHTS launches SunBar FLX: IP65 linear hybrid strobe and flood fixture
March 30, 2026
PROLIGHTS launches SunBar FLX: IP65 linear hybrid strobe and flood fixture
PROLIGHTS launches SunBar FLX , a linear IP65 hybrid LED strobe and wash fixture that expands the Sun family for high-impact strobes and modular blinder looks. Combining versatility, free-form modularity and extreme output, SunBar FLX is designed for
Kings League Italia returns with a PROLIGHTS lighting system bridging sport and streaming
March 26, 2026
Kings League Italia returns with a PROLIGHTS lighting system bridging sport and streaming
The Second Split of Kings League Italia , the seven-a-side football tournament streamed live across multiple platforms, took place at Fonzies Arena in Cologno Monzese , with a PROLIGHTS lighting system at the heart of a production built around one of
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
March 24, 2026
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
Under The Bridge Festival is a one-day open-air music event held beneath the Spijkenisserbrug, the iconic bridge that gives the festival its name and its unmistakable industrial backdrop. With five stages and six zones spanning EDM, house, techno and
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
March 19, 2026
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
The observation tower at Skolnity Ski & Bike Park in Wisła , Poland, part of the Wieża Widokowa network managed by Grupa Pingwina, has been equipped with a permanent architectural lighting installation featuring PROLIGHTS fixtures, supplied by Show
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
March 17, 2026
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
Teatro Scala in Quito , one of Ecuador's foremost venues for high-level artistic productions, has equipped its stage with a comprehensive PROLIGHTS lighting system, implemented by Sonotec , the official PROLIGHTS distributor in Ecuador.  The installation
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
March 12, 2026
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
Philadelphia's Walnut Street Theatre is one of the most historic venues in American theatre. Founded in 1808, it is the longest continually operating theatre in the English-speaking world and hosts a diverse program of productions each season, welcoming
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
March 10, 2026
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
Thirty years after the release of Het is een Nacht , Dutch singer-songwriter Guus Meeuwis headlined the AFAS DOME in Antwerp , one of Belgium's leading indoor arenas, for the first time with a major solo show. Across two memorable nights, his greatest
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
Subscribe to our Newsletter
Loading...
