EVO90F
PROLIGHTS

EVO90F

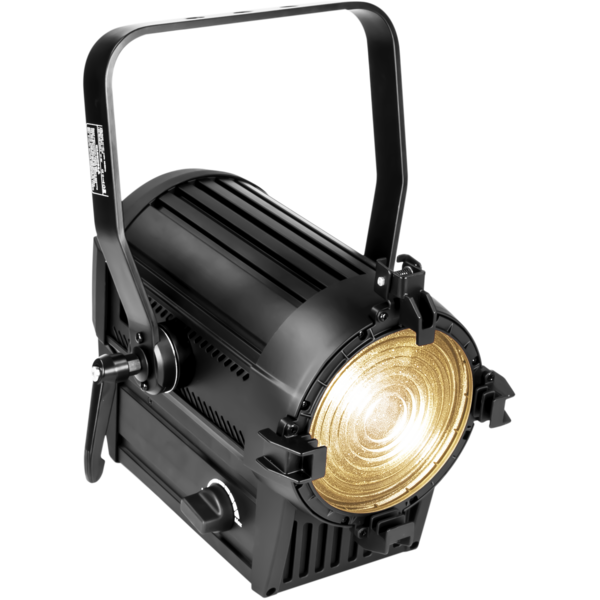

EVO90F is a Fresnel fixture with LED source engineered to exceed conventional projectors in performance and power, creating a real opportunity to replace traditional 500 W halogen projectors. Available in Tungsten (3100K) and Daylight (5600K) versions, EVO90F reproduces the projection uniformity and dimmer linearity of conventional projectors. EVO90F response is exactly that of a conventional projector, results are natural and shadows have same behaviour of single-source spots.

Main features:

  • 9x10 W high power CREE LEDs
  • Available in Tungsten (3100K) and Daylight (5600K) Color temperature variants
  • Manual linear zoom from 10° - 60°
  • No need for dimmers nor lamp replacement, LED lifespan >50.000h
  • Flicker-free for cameras, TV-studios friendly
  • No UV/IR emissions

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 9x10W high-power white LED
  • CCT: TU 3100 K - DY 5600
  • Luminous flux: TU 3090lm - DY 3708
  • Lux: (10°) TU 3020lux - DY 3620lx @3 m
  • CRI: TU >83Ra - DY >70
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 10°~60° manual
  • Lens type: high-quality glass lens optics
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 1/2channel
  • Display: LED display user interface
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 105W
  • Output (at 230V): 16 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 281x388x325mm / 11.06''x15.28''x12.8''
  • Weight: 5,5kg / 12.13lbs

Versions

Code
Col. Temperature
EVO90FDY
EVO90FDY (END OF LIFE)
5600K
EVO90FTU
EVO90FTU (END OF LIFE)
3100K

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualEvo90f_USER_MANUAL_ITEN.pdf6MB

DMX chart & personalities

File name File size Download
EVO90F Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_evo90f.d4Download
manufacturer fixture library (Link) Link
prolights_evo90f_dos.hedDownload
prolights_evo90f_stdp.hedDownload
prolights_evo90f_uno.hedDownload
manufacturer fixture library (Link) Link
evo90fdy_1ch.fdfDownload
evo90fdy_2ch.fdfDownload
evo90fdy_3ch.fdfDownload
evo90ftu_1ch.fdfDownload
evo90ftu_2ch.fdfDownload
evo90ftu_3ch.fdfDownload
evo90f_uno.1ch.sslDownload
evo90f_dos.2ch.sslDownload
evo90f_std.p.3ch.sslDownload
manufacturer fixture library (Link) Link
prolights@evo_90f@dos@initial.xmlpDownload
prolights@evo_90f@std.p@initial.xmlpDownload
prolights@evo_90f@uno@initial.xmlpDownload
manufacturer fixture library (Link) Link
evo 90f dos.fix2Download
evo 90f std.p.fix2Download
evo 90f uno.fix2Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 24/04/2018
