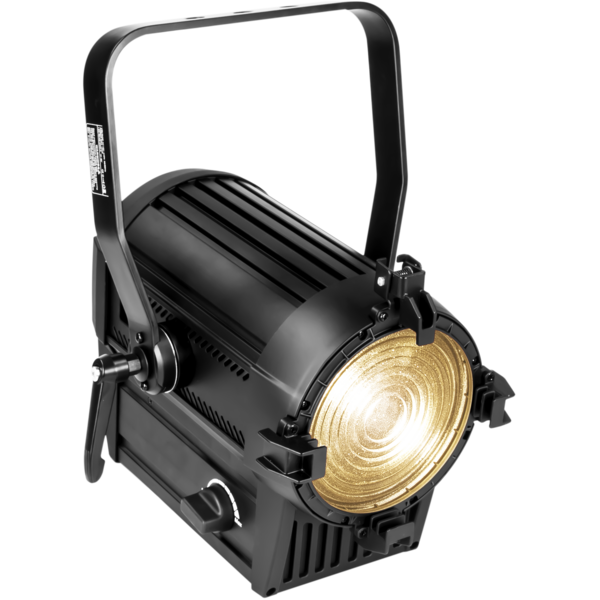

EVO90F
ORDER CODE: EVO90F
Share me

Immagine Principale
  • EVO90F
  • EVO90F
  • EVO90F
  • EVO90F
  • Code Col. Temperature Avail.
    EVO90FDY
    5600K
    EVO90FTU
    3100K

    EVO90F is a Fresnel fixture with LED source engineered to exceed conventional projectors in performance and power, creating a real opportunity to replace traditional 500 W halogen projectors. Available in Tungsten (3100K) and Daylight (5600K) versions, EVO90F reproduces the projection uniformity and dimmer linearity of conventional projectors. EVO90F response is exactly that of a conventional projector, results are natural and shadows have same behaviour of single-source spots.

    Features:
    9x10 W high power CREE LEDs
    Available in Tungsten (3100K) and Daylight (5600K) Color temperature variants
    Manual linear zoom from 10° - 60°
    No need for dimmers nor lamp replacement, LED lifespan >50.000h
    Flicker-free for cameras, TV-studios friendly
    No UV/IR emissions

    LIGHT SOURCE
    • Source:
      9x10
      W
      high-power white LED
    • CCT:
      TU 3100 K - DY 5600
      K
    • Luminous flux:
      TU 3090lm - DY 3708
      lm
    • Lux:
      (10°) TU 3020lux - DY 3620
      lx
      @3 m
    • CRI:
      TU >83Ra - DY >70
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      10°~60
      °
      manual
    • Lens type:
      high-quality glass lens optics
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      1/2
      channel
    • Display:
      LED display user interface
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      5
      selectable dimming modes available
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      105
      W
    • Output (at 230V):
      16
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 3p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      281x388x325
      mm
    • Weight:
      5,5
      kg
    ITEMS REF.
    Accessory Code
    Description
    EVO90F (optional)
    {CODEs}EVO90BD
    DISCONTINUED
    *Barndoor with 4 directional flaps to adjust the light beam, for EVO90F
    EVO90F (optional)
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    ARCLED338PIX (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    {CODEs}C60
    DISCONTINUED
    *Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
