FLATPAR3H
TRIBEby TRIBE
end of life

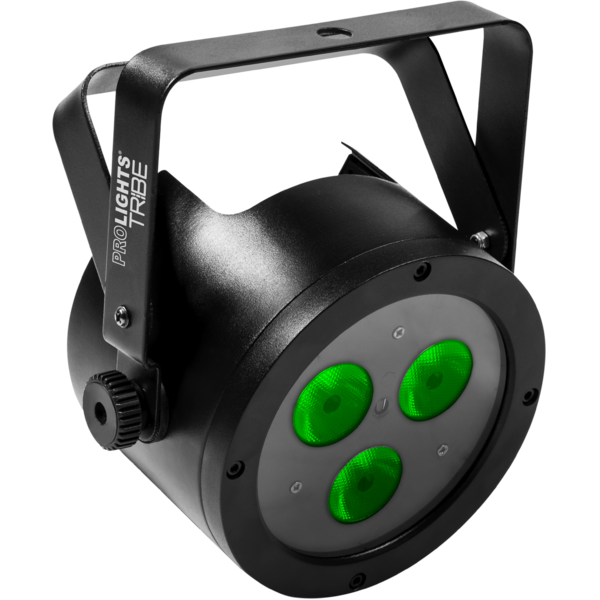

FlatPar 3H

ORDER CODE: FLATPAR3H

3x8W RGBWAP/FC PAR LED

FlatPar 3H is a super-slim LED PAR conceived to break ground with a new generation in its' range thanks to the innovative light-source based on 6 colours, RGBWAP/FC.
FlatPar 3H has been designed with signal and power connections on the sides and a flat bottom, makng it very useful for floor applications and as compact and powerful wall-washer. Its round shape and die-cast aluminium housing with tempered glass panel makes FlatPar 3H a nice design tool which can also be used for in-sight applications at every kind of event such as as conferences, wedding parties, fashion events and exhibitions.

Main features:

  • 3x8W RGBWAP/FC LED
  • Flicker-free operations
  • Compact and powerful wall-washer
  • Silent operation and HD dimming system

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 3x8W RGBWAP LEDs
  • CCT: W: 6.200
  • Luminous flux: 651,27
  • Lux: 337lx @3 m full
  • CRI: 70
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Field angle: 44°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBWAP / FC
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 6 / 8 / 10channel
  • Display: LED display user interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 28 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 25,5W
  • Max power consumption (at 120V): 25,5W
  • Output (at 230V): 47 units on a single power line
  • Output (at 120V): 25 units on a single power line
PHYSICAL
  • IP rating: IP30
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 187x152x187mm / 7.36''x5.98''x7.36''
  • Weight: 1,68kg / 3.7lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
LUMIPARIRCH
LUMIPARIRCH
(Included)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
ARCLUMIL25D38
ARCLUMIL25D38
(Included)
Optic lens 15°, D.38mm
ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetFlatpar3h_A4_DATASHEET.pdf227KB

User manual

File name File size Download
User manualFlatpar3h_USER_MANUAL_ITEN.pdf4MB

DMX chart & personalities

File name File size Download

FLATPAR3H Firmware rev. 1.4

manufacturer fixture library (Link) Link
prolights_flatpar3h.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
flatpar3h_6ch.fdfDownload
flatpar3h_8ch.fdfDownload
flatpar3h_12ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@flatpar_3h@6_channel@initial.xmlpDownload
prolights@flatpar_3h@8_channel@initial.xmlpDownload
prolights@flatpar_3h@12_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
flatpar 3h 6 channel.fix2Download
flatpar 3h 8 channel.fix2Download
flatpar 3h 12 channel.fix2Download

CAD symbols & drawings

File name File size Download
3D SKPFlatpar3h_3D.skp671KB
3DFlatpar3h_CAD_3D.dwg545KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 28/10/2015 Improved firmware functionality.
