FLATPAR3Q
TRIBEby TRIBE
end of life

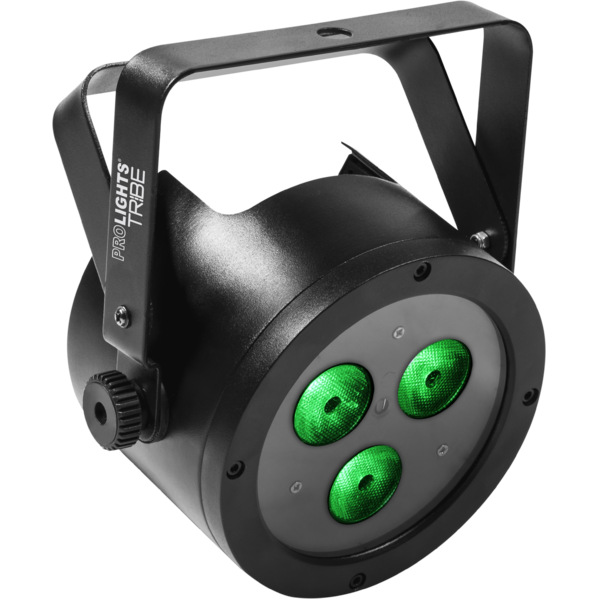

FlatPar 3Q

ORDER CODE: FLATPAR3Q

3x8W RGBA/FC PAR LED

FlatPar 3Q is a super-slim LED PAR, conceived to be a multi-purpose wash light which can be used for every kind of event and install with RGBA/FC. FlatPar 3Q has been designed with signal and power connections on the sides and a flat bottom, makng it very useful for floor applications and as compact and powerful wall-washer. Its round shape and die-cast aluminium housing with tempered glass panel makes FlatPar 3Q a nice design tool which can also be used for in-sight applications at every kind of event such as conferences, wedding parties, fashion events and exhibitions.


Main features:

  • 3x8W RGBA/FC LED
  • Flicker-free operations
  • Compact and powerful wall-washer
  • Silent operation and HD dimming system

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 3x8W RGBA LEDs
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Field angle: 44°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBA / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 9channel
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 25W
  • Output (at 230V): 30 units on a single power line
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 187x152x187mm / 7.36''x5.98''x7.36''
  • Weight: 1,6kg / 3.53lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
LUMIPARIRCH
LUMIPARIRCH
(included)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
ARCLUMIL25D38
ARCLUMIL25D38
(included)
Optic lens 15°, D.38mm
ARCLUMIL45D38
ARCLUMIL45D38
(optional)
Optic lens 45°, D.38mm
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetFlatpar3q_A4_DATASHEET.pdf224KB

User manual

File name File size Download
User manualFlatpar3q_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
FLATPAR3Q Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_flatpar3q.d4Download
manufacturer fixture library (Link) Link
prolights_flatpar3q_4ch.hed Download
manufacturer fixture library (Link) Link
flatpar3q_4ch.fdf Download
flatpar3q_9ch.fdf Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 28/10/2015 Improved firmware functionality.
