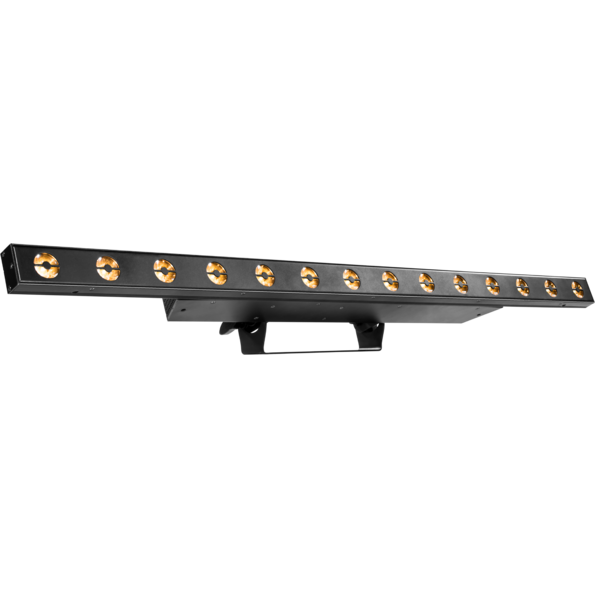

Halu Strip

ORDER CODE: HALUSTRIP

Halu Strip is a LED batten for 3D volumetric graphic projections. The cutting-edge optic design combines warm white 2.800 K LED source with special 8° optic reflectors which generates a long through projection of sharp beams in the air. It offers great flexibility of control with various static pattern, dynamic pattern, with speed, index, rotation, background and foreground control, dimmer fade which can be controlled by DMX.

Main features:

  • 14x3 W CREE Warm White LEDs, with a 2.800 K colour temperature
  • 8° tight light beams through high definition optic collimator
  • Pixel control: individual control of each single LED
  • Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and backgrounddimmer dimmer fade, speed and rotation
See variants

PHOTO GALLERY

Halu Strip
Halu Strip
Halu Strip

Technical specifications

LIGHT SOURCE
  • Source: 14x3W Warm White LED
  • CCT: 2.800
  • Luminous flux: 1'186
  • Lux: 3'750lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 7°
  • Field angle: 8°
  • Pixel pitch: 72mm / 2.83''
  • Lens type: HD anti-reflection lenses with achromatic coating
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 5 / 14 / 19channel
  • Pixel control: pixel2pixel control
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 49W
  • Max power consumption (at 120V): 48W
  • Output (at 230V): 24 units on a single power line
PHYSICAL
  • IP rating: 40
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 1000x169x58mm / 39.37''x6.65''x2.28''
  • Weight: 3,5kg / 7.72lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualHalustrip_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartHalustrip_DMX_CHARTS.pdf63KB
HALUSTRIP Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_halustrip.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
halustrip_5ch.fdfDownload
halustrip_14ch.fdfDownload
halustrip_19ch.fdfDownload
manufacturer fixture library (Link) Link
prolights_halustrip_ma2.zipDownload
manufacturer fixture library (Link) Link
halustrip 5 channel.fix2Download
halustrip 14 channel.fix2Download
halustrip 19 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
2DHalustrip_CAD_2D.dwg516KB
3DHalustrip_CAD_3D.dwg5MB
Technical drawingHalustrip_TECHNICAL_DRAWING.pdf150KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 03/12/2018 10 second default display backlight Rev. 1
