LIVE15A
DAD

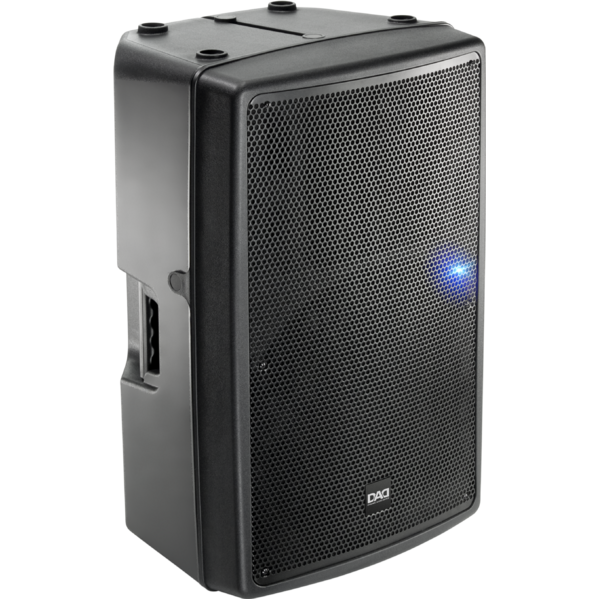

LIVE15A

ORDER CODE: LIVE15A

Active loudspeaker, AB-class bi-amp, 2-way 380 W+70 W, 124dB SPL

Main features:

  • Low frequency: 15'' woofer/3''v.c.
  • High frequency: 1'' driver/1.7''v.c.
  • Frequency response: 45-18000 Hz (±3dB)
  • Reproduction of voice and music for live and recorded performances
  • Polypropylene enclosure, designed for stage-monitor application
  • For indoor/outdoor sound installations where quality and sound pressure are required
  • For portable PA systems, mobile DJ sets and voice/multimedia applications
See variants

PHOTO GALLERY

LIVE15A
LIVE15A
LIVE15A
LIVE15A
LIVE15A

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 15'' woofer/3''v.c.
  • High frequency: 1'' driver/1.7''v.c.
FEATURES
  • Built-in amp LF/HF: 380+70 /4/8Ohm
  • SPL max: 128dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 122/128dB @1m (free field)
  • Frequency response: 45-18000Hz (±3dB)
  • Coverage angle HxV: 80x60°
  • Cross over frequency: 2600Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: AB class
  • Power: 380+70W /4/8Ohm
  • Input sensitivity: -2 dBu (0,6Vrms) adjustable
  • Protection: limiter temp.
  • User controls: mic, line, master, eq LF-HF
  • Processor: analog
  • Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: 4mm / 0.16'' polypropilene
  • Sospension system: eyebolt, 35 mm pole mount
  • Angle: 45° monitor applications
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 475x740x400mm / 18.7''x29.13''x15.75''
  • Weight: 30kg / 66.14lbs

Versions

Accessories & Related Products

AS255
AS255
(Optional)
Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
ACCA5462
ACCA5462
(Optional)
M8x25mm. Eye-bolt suitable for suspension of loudspeakers
