LIVEPACK1000

ORDER CODE: LIVEPACK1000

Main features:

---

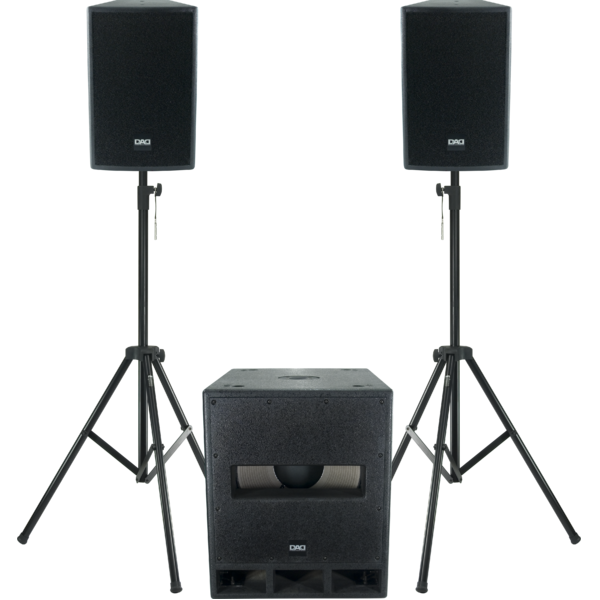

Active audio system, 1 subwoofer and 2 tops, AB-class bi-amp, 3-way 600W+2x200W, 130dB
Components:

• Tops: 8'' woofer with 2'' voice coil; HF compression driver with 1'' throat and 1.3'' voice coil; 80°x60° (HxV) constant-directivity waveguide
• Subwoofer: 15'' long-excursion woofer with 4'' voice coil, dual-reflex configuration
Electronics:

• 1000W (600W SW + 2x200W LF+HF) AB-class bi-amp, 3 separate modules placed into the subwoofer
• Analogue processor with balance, crossover, equalization, phase alignment and limiter
• User control panel: 2 Mic input channels, balanced L-R input, unbalanced L-R input, LPF adjustment (80-180Hz), balanced output with HPF adjustment (3 options: 22Hz, 80Hz, 125Hz)
• Master and LF volume controls, LF-HF equalization, signal, limiter and protection indicators
• Phase reverse switch, to avoid possible phase cancellations in multi-subwoofer installations or when using satellite loudspeakers with non-standard phasing
Subwoofer cabinet construction:

• 18mm multilayer birch plywood
• 35mm pole-mount adapter for stands, side-handles for transportation
• 16 fastening points (M10 type) for suspension
Connections:

• XLR in/out and RCA input connections; AC VDE in
Applications:

• Plug and play system, high flexibility in portable and mobile audio applications
• Reproduction of voice and music for live and recorded performances
• For portable PA systems, mobile DJ sets and voice/multimedia applications
• For indoor/outdoor sound installations where quality and sound pressure are required
