LUMA700
PROLIGHTS
discontinued

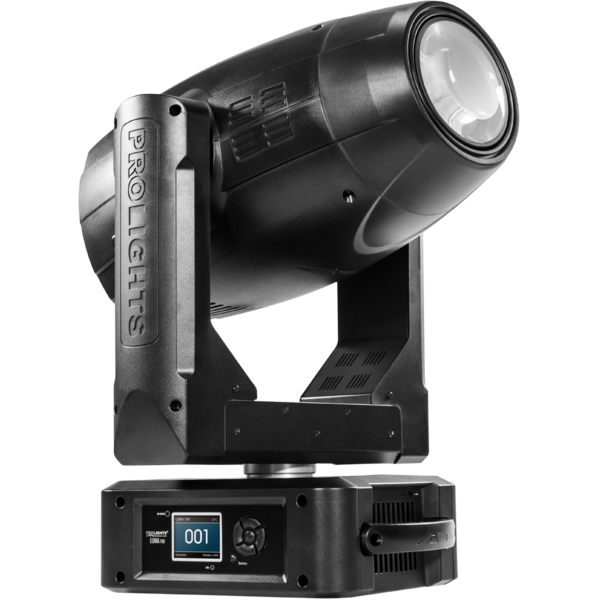

Luma 700

ORDER CODE: LUMA700

270W moving LED spot with zoom and CMY mixing

Luma 700 is a 270W 7.000 K LED spot luminaire designed to replace the 700W discharge fixture used in theatres, concerts, events and broadcast. The custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 6,8° to 47,5° zoom range.

Main features:

  • Full CMY colour mixing system with separate linear CTO, plus colour wheel
  • Rotating and static gobo wheels, plus prism, iris and linear frost
  • HD dimming
See variants

PHOTO GALLERY

Luma 700
Luma 700
Luma 700
Luma 700

Technical specifications

LIGHT SOURCE
  • Source: 270W high-power white LED
  • CCT: 7.000
  • Luminous flux: (6,8°) 4'890 lm - (47,5°) 7'234 @full
  • Lux: (6,8°) 19'060 lx - (47,5°) 882lx @5 m full
  • Source life expectancy: > 20.000 h
OPTICS
  • Zoom: 6,8° - 47,5° motorised linear zoom
  • Lens diameter: 120mm / 4.72''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised with auto-focus
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • Colour wheel: 8 colour filters
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 26,5 mm - image: 20 mm - thickness: 1,1 mm
  • Fixed gobos: 6 fixed gobos + open, interchangeable
  • Gobo size: outer: 26,8 mm - image: 20 mm - thickness: 1,1 mm
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
BODY
  • Pan angle: 630° - 540°
  • Tilt angle: 267°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, W-DMX
  • DMX channels: 19 / 21 / 28 / 29channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 355W
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 355x663x235mm / 13.98''x26.1''x9.25''
  • Weight: 23kg / 50.71lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
OS24D13
OS24D13
(included)
Quick-lock omega bracket, M12 hole
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLuma700_A4_DATASHEET.pdf538KB

User manual

File name File size Download
User manualLuma700_USER_MANUAL_ITEN.pdf19MB

DMX chart & personalities

File name File size Download
DMX chartLuma700_DMX_CHARTS.pdf1MB
LUMA700 Firmware rev. 1.2.00
manufacturer fixture library (Link) Link
prolights_luma700.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_luma700_19ch.hedDownload
prolights_luma700_21ch.hedDownload
prolights_luma700_28ch.hedDownload
prolights_luma700_29ch.hedDownload
manufacturer fixture library (Link) Link
luma700_19ch.fdfDownload
luma700_21ch.fdfDownload
luma700_28ch.fdfDownload
luma700_29ch.fdfDownload
luma700_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@luma_700@bas-8@initial.xmlpDownload
prolights@luma_700@bas-16@initial.xmlpDownload
prolights@luma_700@extended@initial.xmlpDownload
prolights@luma_700@standard@initial.xmlpDownload
manufacturer fixture library (Link) Link
luma700_hog3.zipDownload
luma700_bas16.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
luma 700 bas-8.fix2Download
luma 700 bas-16.fix2Download
luma 700 extended.fix2Download
luma 700 standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFALuma700_3D.rvt551KB
2DLuma700_CAD_2D.dwg2MB
3DLuma700_CAD_3D.dwg1MB
2D cad symbolsLuma700_CAD_2DSYMBOLS.dwg89KB
Technical drawingLuma700_TECHNICAL_DRAWING.pdf472KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx355KB

Tech docs

File name File size Download
Color DocumentLuma700_COLOR.pdf779KB
Gobos DocumentLuma700_GOBOS.pdf1MB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2.00 STABLE 25/09/2018 Improved Tilt movement. Improved gobo wheel movement. Rev. 1
