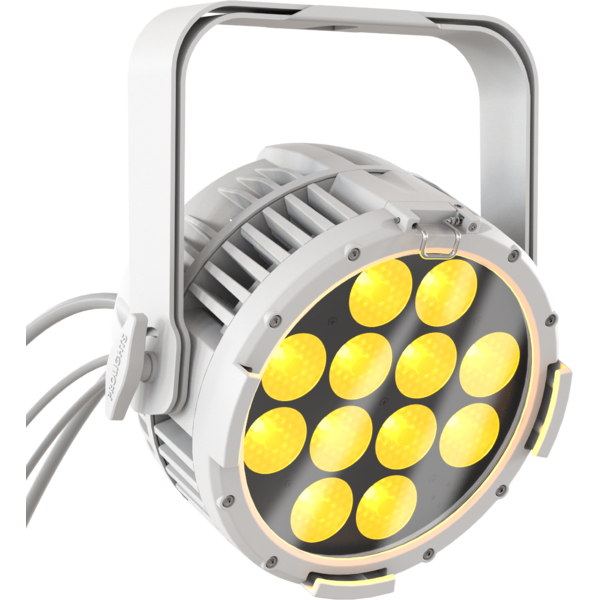

LumiPar 12Arc

12x9W RGBW compact IP65 LED PAR

LumiPar 12 Arc is a bright and flexible IP LED PAR made for architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.

Main features:

  • IP65 die-cast aluminium housing
  • 12x9W RGBW LED PAR
  • Fan-free and flicker-free
  • Filter frame included

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 12x9W RGBW LEDs
  • Luminous flux: (20°) 5'364 lm - (45°) 5'231
  • Lux: (20°) 1'401lx @5 m full
  • Lux: (45°) 484lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: available in 20° or 45°
  • Field angle: 36° or 60°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 4 / 6 / 11channel
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: white (RAL 9010)
  • Other: display cover
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 115W
  • Max power consumption (at 120V): 115W
  • Output (at 230V): 33 units on a single power line
  • Output (at 120V): 18 units on a single power line
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • IK rating: 07
  • Cooling: fan-free with natural convection
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 305x326x177mm / 12.01''x12.83''x6.97''
  • Weight: 6,2kg / 13.67lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT

Versions

Code
Finishing
LUMIPAR12ARC20D
LUMIPAR12ARC20D
White
LUMIPAR12ARC45D
LUMIPAR12ARC45D
White

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
ARCLUMIL15D45
ARCLUMIL15D45
(Optional)
Optic lens 15°, D.45mm
ARCLUMIL25D45
ARCLUMIL25D45
(Included)
Optic lens 25°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Included)
Optic lens 45°, D.45mm
LUMIPAR12IPBD
LUMIPAR12IPBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame not included
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipar12arc_A4_DATASHEET_(EN).pdf(19/06/2024)574KB

User manual

File name File size Download
User manualLumipar12arc_USER_MANUAL_ITEN.pdf(22/08/2019)2MB
User manualLumipar12arc_General_Safety_Information_EN.pdf(17/01/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartLumipar12arc_DMX_CHARTS.pdf(22/08/2019)46KB

Photometrics

Tech docs

File name File size Download
Noise ReportLumipar12arc_NOISE_REPORT.pdf(18/01/2024)589KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 25/04/2023 Improvement:
  • "Back Light" default set to 10s.
Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 26/04/2023 Improvement:
  • "Back Light" default set to 10s.
Rev. 1.0
