LUMIPAR12UH
PROLIGHTS
discontinued

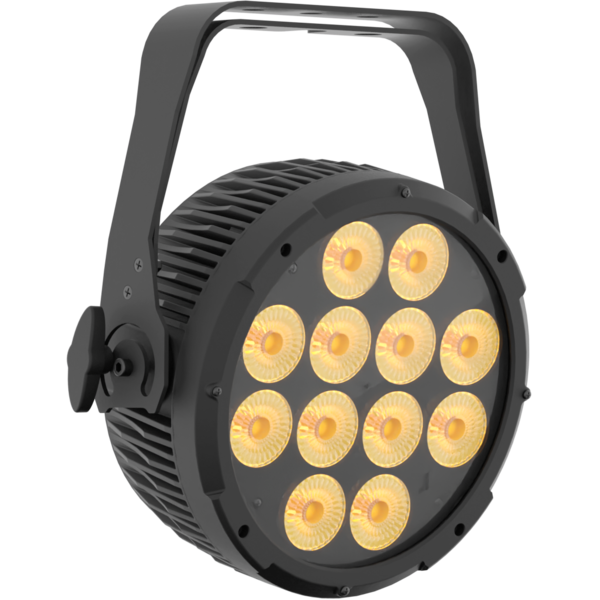

LumiPar 12UH

12x8W RGBWAP / FC high-power PAR LED

LumiPar 12UH is a super-slim PAR LED designed for professional use and as a powerful wash light with the ability to perform an outstanding chromatic capacity through the new optical design and light source based on 6 colours mixing. LumiPar 12UH is compatible with the infrared remote controller, for intuitive and interactive use without need any external DMX units and can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Main features:

  • 12x8W RGBWAP / FC high-power LED
  • Superior optical design to ensure advanced chromatic synthesis
  • Flicker-free operations with selectable PWM
  • USB port for USB WIFI transreceiver (optional)
  • Silent operation and HD dimming system
See variants

PHOTO GALLERY

LumiPar 12UH
LumiPar 12UH
LumiPar 12UH
LumiPar 12UH
LumiPar 12UH
LumiPar 12UH

Technical specifications

LIGHT SOURCE
  • Source: 12x8W RGBWAP LEDs
  • Luminous flux: 2'537
  • Lux: 963,5lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Field angle: 45°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 25° (inc) - 45° (opt)
COLOUR SYSTEM
  • Colour mixing: RGBWAP / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 6 / 11channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 83W
  • Max power consumption (at 120V): 84,5W
  • Output (at 230V): 30 units on a single power line
  • Output (at 120V): 16 units on a single power line
PHYSICAL
  • IP rating: 44
  • IK rating: 07
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: variants available
  • Dimensions (WxHxD): 200x200x100 - (250x300x100)mm / 7.87''x7.87''x3.94''
  • Weight: 3,3kg / 7.28lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Power
DMX
LUMIPAR12UH3
LUMIPAR12UH3 (DISCONTINUED)
IEC
3p
LUMIPAR12UH3P
LUMIPAR12UH3P (DISCONTINUED)
PowerCON
3p

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm
<b>WIFI</b>-USB
WIFI-USB
(Optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
LUMIPARIRCH
LUMIPARIRCH
(Optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipar12uh_A4_DATASHEET_(EN).pdf200KB
Letter datasheetLumipar12uh_A4_DATASHEET_(IT).pdf202KB

User manual

DMX chart & personalities

File name File size Download
LUMIPAR12UH Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_lumipar12uh.d4Download
manufacturer fixture library (Link) Link
prolight_lumipar12uh_6ch.hed Download
prolight_lumipar12uh_11ch.hed Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DLUMIPAR12UH_2D.zip9MB
Technical drawingLUMIPAR12UH_TECHNICAL DRAWINGS.zip467KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 05/08/2016 Improved power management. Improved temperature management.
