LumiPar 12UQPro

12x8W RGBW/FC wash light super-slim PAR LED

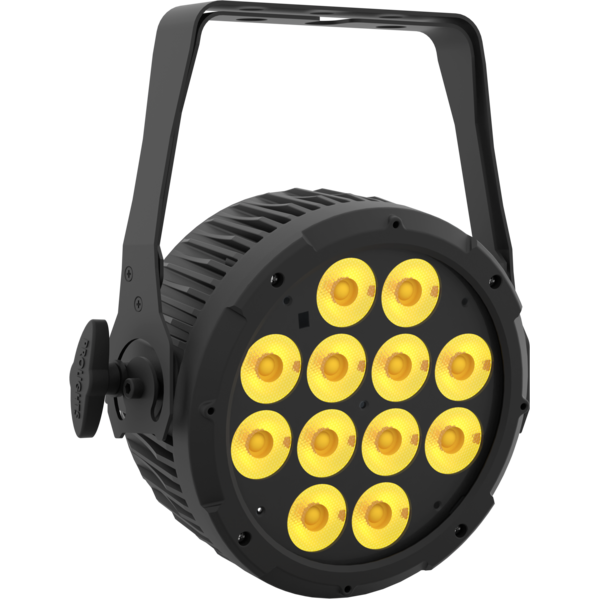

Lumipar 12UQPro is a super-slim par LED designed for professional use to be a powerful wash light and perform an outstanding chromatic capacity through the new optical design and light source based on 4 colours mixing. Lumipar 12UQPro is compatible with the infrared remote controller for intuitive and interactive use without need any external DMX units and can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Main features:

12x8W RGBW/FC high-power LED
Superior optical design to ensure advanced chromatic synthesis
Flicker-free operations
USB port for USB WIFI transceiver (optional)
Silent operation and HD dimming system

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 12x8W RGBW LEDs
CCT: W: 6.600
Luminous flux: 2'689
Lux: 2'871lx @3 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 15°
Lens diameter: 31mm / 1.22''
Additional optics: 15° (on-board) - 45° (opional)

COLOUR SYSTEM

Colour mixing: RGBW / FC
Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 4 / 9channel
Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
IR: infrared sensor controlled by remote
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 77W
Max power consumption (at 120V): 78W
Output (at 230V): 11 units on a single power line
Output (at 120V): 9 units on a single power line

PHYSICAL

IP rating: 44
IK rating: 07
Cooling: passive cooling and fan-free
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Data: USB port for USB WIFI transmitter (optional)
Signal connection: variants available
Power connection: variants available
Dimensions (WxHxD): 253x200x237mm / 9.96''x7.87''x9.33''
Weight: 3,3kg / 7.28lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

Versions

Code

Power

DMX

LUMIPAR12UQPRO3 (DISCONTINUED)

VDE

3p in/out

LUMIPAR12UQPRO5

Powercon in/out

3p+5p in/out

Accessories & Related Products

C6002B

(optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

RSR0630B

(optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

TOUR53413L03

(optional)

Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

TOUR53415L03

(optional)

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

ARCLUMIL45D38

(optional)

Optic lens 45°, D.38mm

WIFI-USB

(optional)

USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX

WIFI-Box

(optional)

DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT

WD-Box

(optional)

Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg

LUMIPARIRCH

(optional)

RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series

Upbox 1

(optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

UPBOXPRO

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

	File name	File size	Download
	Lumipar12uqpro_A4_DATASHEET_(EN).pdf	410KB
	Lumipar12uqpro_A4_DATASHEET_(IT).pdf	196KB

User manual

	File name	File size	Download
	Lumipar12uqpro_USER_MANUAL_ITEN.pdf	2MB

DMX chart & personalities

	File name	File size	Download
	Lumipar12uqpro_DMX_CHARTS.pdf	44KB

LUMIPAR12UQPRO Firmware rev. 1.5

prolights_lumipar12uq.d4

Download

manufacturer fixture library (Link)	Link
prolight_lumipar12uq_4ch.hed	Download
prolight_lumipar12uq_9ch.hed	Download
prolights_lumipar12uqpro_4ch.hed	Download
prolights_lumipar12uqpro_9ch.hed	Download

lumipar 12uq 4 channel.fix2	Download
lumipar 12uq 9 channel.fix2	Download

LUMIPAR12UQPRO Firmware rev. 1.4

prolights_lumipar12uq.d4

Download

manufacturer fixture library (Link)	Link
prolight_lumipar12uq_4ch.hed	Download
prolight_lumipar12uq_9ch.hed	Download
prolights_lumipar12uqpro_4ch.hed	Download
prolights_lumipar12uqpro_9ch.hed	Download

lumipar 12uq 4 channel.fix2	Download
lumipar 12uq 9 channel.fix2	Download

Photometrics

	File name	File size	Download
	prolights_lumipar12uqpro5_ies_files.zip	20KB
	prolights_lumipar12uqpro5_ldt_files.zip	18KB
	Lumipar12uqpro5_PHOTOMETRICS.pdf	590KB
	Lumipar12uqpro5_PHOTOMETRICS_REPORT.pdf	3MB
	Download DIALux product catalogue	-

CAD symbols & drawings

	File name	File size	Download
	Lumipar12uqpro5_3D.rfa	7MB
	LUMIPAR12UQPRO_2D.zip	9MB
	LUMIPAR12UQPRO_TECHNICAL DRAWINGS.zip	564KB
	LUMIPAR12UQPRO_SYMBOLS.zip	2MB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide

Revision	Release date	Firmware changelog	HW Compatibility
Update Tool: UPBOX1UP5 UPBOXPRO
Check hardware changelog before downloading firmware
1.5 STABLE	31/03/2021	Added Led Frequency selector.
1.4 STABLE	05/08/2016	Improved power management. Improved temperature management.	Rev. 1 Rev. 1.0
