LUMIPAR6UQ
TRIBEby TRIBE
discontinued

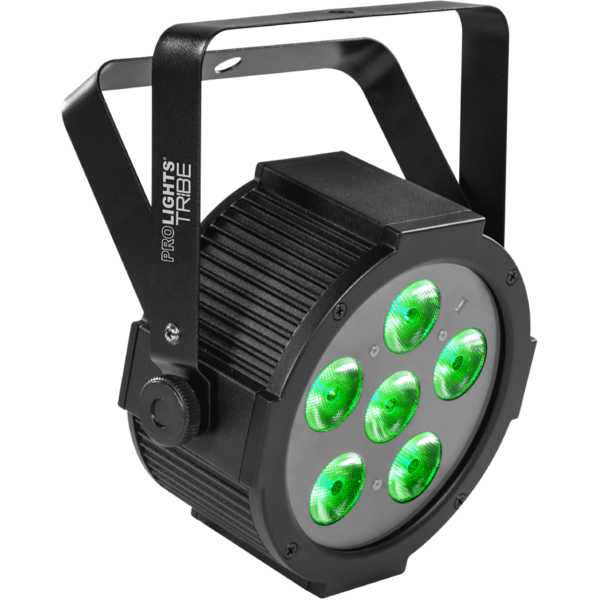

LumiPar 6UQ

ORDER CODE: LUMIPAR6UQ

6x4W RGBW/FC high-power PAR LED

LumiPar 6UQ is a super-slim PAR LED designed to be a multi-use wash light for events and club installations. Equipped with 6x4W high-efficiency RGBW/FC LED light sources, conceived to create bright, intense and saturated colours. LumiPar 6UQ is compatible with the infrared remote controller, for intuitive and interactive use without the need of any external DMX units. LumiPar 6UQ can be also controlled wirelessly through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Main features:

  • 6x4W RGBW/FC high-power LED
  • Superior optical design to ensure advanced chromatic synthesis
  • Flicker-free operations
  • USB port for USB WIFI transceiver (optional)
  • Silent operation and HD dimming system

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 6x4W RGBW LEDs
  • Luminous flux: 1'030
  • Lux: 916,7lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 14°
  • Field angle: 30°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 25° (inc) - 45° (op)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 9channel
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 48W
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 210x173x200mm / 8.27''x6.81''x7.87''
  • Weight: 1,6kg / 3.53lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipar6uq_A4_DATASHEET.pdf370KB

User manual

File name File size Download
User manualLumipar6uq_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
LUMIPAR6UQ Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_lumipar6uq_9ch.hedDownload
prolights_lumipar6uq_4ch.hedDownload

Photometrics

File name File size Download

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 12/07/2016 Improved firmware functionality with 24 bytes consoles.
