LUMIPAR7IP
PROLIGHTS

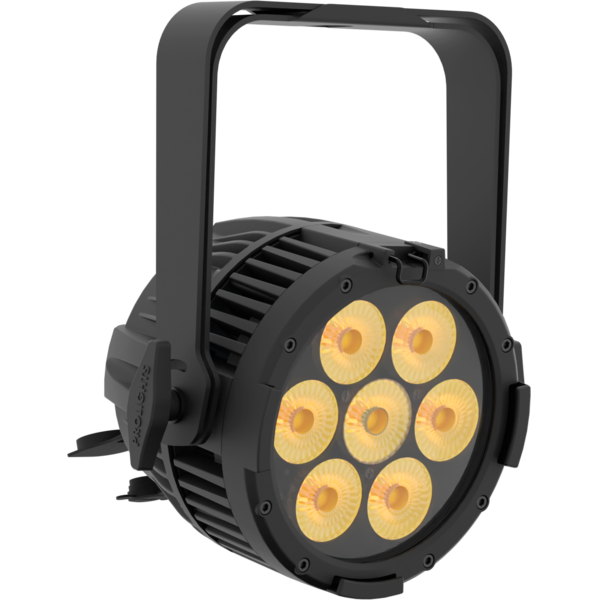

LumiPar 7IP

7x9W RGBW compact IP65 LED PAR

LumiPar 7IP is a compact and flexible IP LED PAR made for small concerts and theatres, and to perform as architectural accent luminaire for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and totally fanless being totally silent during its operation.

Main features:

  • IP65 die-cast aluminium housing
  • 7x9W RGBW LED PAR
  • Fanless and flicker-free operation for IMAG and broadcast
  • Filter frame included
See variants

PHOTO GALLERY

LumiPar 7IP
LumiPar 7IP
LumiPar 7IP
LumiPar 7IP
LumiPar 7IP

Technical specifications

LIGHT SOURCE
  • Source: 7x9W RGBW LEDs
  • Luminous flux: (20°) 2'945 lm - (45°) 3'835
  • Lux: (20°) 1'923lx @3 m full
  • Lux: (45°) 654lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: available in 20° or 45°
  • Field angle: 36° or 60°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 4 / 6 / 11channel
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 65W
  • Max power consumption (at 120V): 64W
  • Output (at 230V): 32 units on a single power line
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: fan-free with natural convection
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 240x286x154mm / 9.45''x11.26''x6.06''
  • Weight: 3,64kg / 8.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Optics
LUMIPAR7IP20D
LUMIPAR7IP20D
20°

Accessories & Related Products

ARCLUMIL15D45
ARCLUMIL15D45
(Optional)
Optic lens 15°, D.45mm
ARCLUMIL25D45
ARCLUMIL25D45
(Optional)
Optic lens 25°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Optional)
Optic lens 45°, D.45mm
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipar7ip_A4_DATASHEET_(IT).pdf(30/04/2021)172KB
Letter datasheetLumipar7ip_A4_DATASHEET_(EN).pdf(03/09/2021)172KB

User manual

File name File size Download
User manualLumipar7ip_USER_MANUAL_ITEN.pdf(22/08/2019)2MB
User manualLumipar7ip20d_USER_MANUAL_ITEN.pdf(22/08/2019)2MB
User manualLumipar7ip45d_USER_MANUAL_ITEN.pdf(22/08/2019)2MB

DMX chart & personalities

File name File size Download
DMX chartLumipar7ip_DMX_CHARTS.pdf(22/08/2019)46KB

LUMIPAR7IP Firmware rev. 1.3

manufacturer fixture library (Link) Link
prolights_lumipar7ip.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_lumipar7ip_4ch.hedDownload
prolights_lumipar7ip_6ch.hedDownload
prolights_lumipar7ip_11ch.hedDownload
manufacturer fixture library (Link) Link
prolights@lumipar7ip@4ch.xmlDownload
prolights@lumipar7ip@6ch.xmlDownload
prolights@lumipar7ip@11ch.xmlDownload
manufacturer fixture library (Link) Link

LUMIPAR7IP Firmware rev. 1.2

manufacturer fixture library (Link) Link
prolights_lumipar7ip.d4Download
manufacturer fixture library (Link) Link
prolights_lumipar7ip_4ch.hedDownload
prolights_lumipar7ip_6ch.hedDownload
prolights_lumipar7ip_11ch.hedDownload
prolights@lumipar7ip@4ch.xmlDownload
prolights@lumipar7ip@6ch.xmlDownload
prolights@lumipar7ip@11ch.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
2DLumipar7ip_CAD_2D.dwg(25/02/2021)11MB
Technical drawingLumipar7ip_TECHNICAL_DRAWING.pdf(25/02/2021)397KB
VectorWorksLUMIPAR7IP_SYMBOLS.zip956KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 08/02/2023 New functions:
  • Added RDM functionality

Fixed bugs:
  • Fixed display bug on power off
1.2 STABLE 17/12/2018 10 second default display backlight
