Lumipix 12Q

ORDER CODE: LUMIPIX12Q

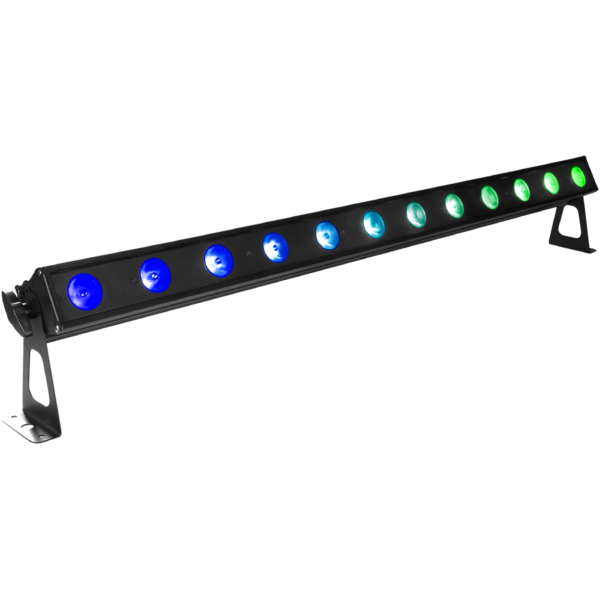

LUMIPIX12Q is a linear 100 cm LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LUMIPIX12Q a flexible and versatile solution for every kind of application or in venues as the architectural, cyclorama, wall-washer, pixel effect, blinder.

Main features:

12x8 W RGBW / FC high-power LED
Pixel control of every individual LED
Flicker free operations
Silent operation and linear dimming system

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 12x8W RGBW LED
Luminous flux: 2'992
Lux: 1'990lx @3 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 25°
Field angle: 36°
Lens diameter: 38mm / 1.5''
Additional optics: 45° (optional)

COLOUR SYSTEM

Colour mixing: RGBW / FC
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy aluminum profile
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 4 / 9 / 10 / 48channel
Pixel control: pixel2pixel control
Display: LCD display
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 5 selectable dimming modes available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 103W
Max power consumption (at 120V): 106W
Output (at 230V): 16 units on a single power line

PHYSICAL

IP rating: 20
Cooling: passive cooling and fan-free
Suspension and fixing: bracket for hanging and positioning
Signal connection: 3p IN/OUT
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 1055x82x164mm / 41.54''x3.23''x6.46''
Weight: 4,3kg / 9.48lbs

VIDEOS

Accessories & Related Products

ARCLUMIL25D38

(included)

Optic lens 15°, D.38mm

ARCLUMIL45D38

(optional)

Optic lens 45°, D.38mm

Upbox 1

(optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

UPBOXPRO

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

	File name	File size	Download

User manual

	File name	File size	Download
	Lumipix12q_USER_MANUAL_ITEN.pdf	2MB

DMX chart & personalities

	File name	File size	Download
	Lumipix12q_DMX_CHARTS.pdf	67KB

LUMIPIX12Q Firmware rev. 1.4

manufacturer fixture library (Link)	Link
prolights_lumipix12q.d4	Download

manufacturer fixture library (Link)

Link

manufacturer fixture library (Link)	Link
lumipix12q_4ch.fdf	Download
lumipix12q_6ch.fdf	Download
lumipix12q_8ch.fdf	Download
lumipix12q_48ch.fdf	Download

lumipix12q_4ch.ssl	Download
lumipix12q_6ch.ssl	Download
lumipix12q_8ch.ssl	Download

manufacturer fixture library (Link)

Link

prolights@lumipix_12q@4_channel@ma_library_update_v13.1.xmlp	Download
prolights@lumipix_12q@6_channel@ma_library_update_v13.1.xmlp	Download
prolights@lumipix_12q@8_channel@ma_library_update_v13.1.xmlp	Download
prolights@lumipix_12q@48_channel@ma_library_update_v13.1.xmlp	Download

manufacturer fixture library (Link)

Link

manufacturer fixture library (Link)

Link

manufacturer fixture library (Link)

Link

manufacturer fixture library (Link)	Link
lumipix 12q 4 channel.fix2	Download
lumipix 12q 6 channel.fix2	Download
lumipix 12q 8 channel.fix2	Download
lumipix 12q 48 channel.fix2	Download

manufacturer fixture library (Link)

Link

Photometrics

	File name	File size	Download
	prolights_lumipix12q_blue_25°.ies	64KB
	prolights_lumipix12q_full_25°.ies	64KB
	prolights_lumipix12q_green_25°.ies	64KB
	prolights_lumipix12q_red_25°.ies	64KB
	prolights_lumipix12q_white_25°.ies	64KB
	Download DIALux product catalogue	-

CAD symbols & drawings

	File name	File size	Download
	Lumipix12q_3D.rvt	381KB
	Lumipix12q_CAD_2D.dwg	1MB
	Lumipix12q_CAD_2DSYMBOLS.dwg	57KB
	Lumipix12q_TECHNICAL_DRAWING.pdf	185KB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB
	VECTORWORKS_SYMBOLS.vwx	464KB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide

Revision	Release date	Firmware changelog
Update Tool: UPBOX1UP5 UPBOXPRO
Check hardware changelog before downloading firmware
1.4 STABLE	12/09/2016	Improved power management. Improved temperature management.
