LUMIPIX6TRI
TRIBEby TRIBE
end of life

LUMIPIX6TRI

ORDER CODE: LUMIPIX6TRI

Main features:

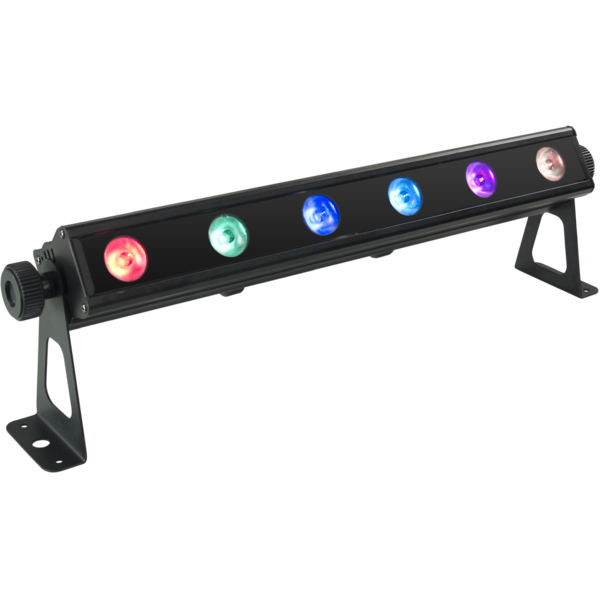

    LUMIPIX6TRI is a linear color changer fitted with high luminous efficiency 6 Tri-color LED in the size of 0,5m. The management system is customizable, in line with the requirements of use, from 3 to 18 channels management mode "Pixel control", for the independent control of each individual LED.
    LUMIPIX6TRI offers advanced capabilities in the generation of effects, such as video or LED arrays-activated music.

    Light source and optics
    • 6 x 3W RGB/FullColor high-efficiency LEDs
    • Lux: 1300@2m
    • Beam angle: 20°
    • Field angle: 34°
    • White temperature presets: 3200K~10'000K
    • Color synthesis: RGB/FullColor mixing for a limitless color range
    • LEDs average life span: >50'000h

    Electronics and features
    • User panel through LCD display
    Several DMX selectable configurations (3,4,6,7,9,18 channels) for advanced or basic controlling
    3 channels: RGB
    4 channels: RGB, dimmer
    6 channels: RGB (2 section)
    7 channels: RGB, macro, strobe, auto, dimmer
    9 channels: RGB (3 section)
    18 channels: RGB (x6 pixel)
    • Auto mode: 5 built-in programs with execution speed adjustment
    • Static color mode: selection of static color
    • Master/Slave mode: for synchronized operation of more units linked in a chain
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)

    Structure and power supply
    • Internal protection: IP33
    • High-strength aluminum body designed to facilitate heat dissipation
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Power output to link more units in a chain: up to 10 fixtures at 230V
    • Average power consumption: 51W (up to 35 fixtures power output)
    • Weight: 2,2 kg
    • Dimensions (WxHxD): 560x64x165 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipix6tri_USER_MANUAL_ITEN.pdf2MB
