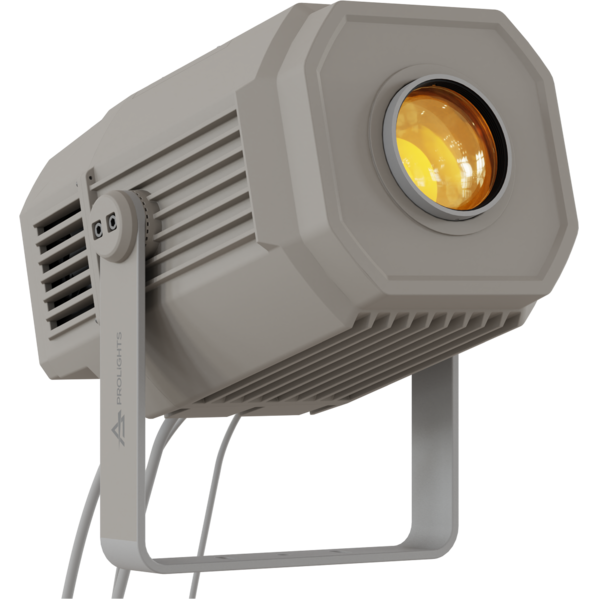

Mosaico L

ORDER CODE: MOSAICOL

300W IP66 zoomable LED image projector with an animation wheel and framing shutters

The Mosaico L is a bright outdoor LED image projector, designed for long-range image, textures and logo projections.
Built in a durable IP66 die-cast housing, the Mosaico L offers a phenomenal output of 11,700 lumens and an extensive set of features including a rotating animation wheel, 7 interchangeable gobos, and motorized framing shutters that precisely focus within a certain projection area.
It has an exceptional zoom range, from 7° to 49°, making it versatile in both near-field and long-throw installations, or even for static and animated facade building lighting.

5 YEARS WARRANTY

Main features:

  • IP66 for long-lasting installations, with minimal maintenance needed
  • 7°- 49° linear zoom system, for both near and long throw installation
  • 300W White LED engine (8,000K), with up to 11'700 lumen output
  • Extensive feature set including 7 colour-filters on wheel, 7 interchangeable rotating gobos, animation wheel and motorized framing shutters
See variants

PHOTO GALLERY

Mosaico L
Mosaico L
Mosaico L
Mosaico L

Technical specifications

LIGHT SOURCE
  • Source: 300W high-power white LED
  • Source CCT: 8.000K
  • Luminous flux: (7°) 8'536 lm - (49°) 11'729 @Full
  • Lux: (7°) 28'230 lx - (49°) 867lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 7°- 49° motorised linear zoom
  • Lens diameter: 110mm / 4.33''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised 8/16-bit
COLOUR SYSTEM
  • Colour mixing: cold white LED with colour wheel
  • Colour wheel: open + 7 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer control
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: magnetic interchangeable animation wheel with CW and CCW rotation
  • FX generator: shutter macros with adjustable speed
  • Circular prism: 3f-f with bi-directional rotation, indexing
  • Frost: linear 0-100%
  • Special features: record scenes and create chases and shows throughout these scenes
GOBOS
  • Rotating gobos: open + 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 23 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX + WDMX
  • DMX channels: 22 / 32 / 43ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Stand Alone: Stand Alone programmer and playback
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1~30 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: W-DMX transreceiver
  • Adaptors: XLR and BARE END 16A adaptors included
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 440W
  • Output (at 230V): 6 units on a single power line
  • Standby power: 58 W
  • Power factor: > 0,98
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: IK09 impact rating
  • Cooling: heat pipe with low-noise fan
  • Housing: Weatherproof IP66 construction
  • Finish: grey (RAL 9006)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 362x428x451mm / 14.25''x16.85''x17.76''
  • Weight: 25kg / 55.12lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
  • Other: Inspectable cover window for gobos replacement and maintenance
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
GBVMAP001
GBVMAP001
(Optional)
Gobo Mapping, F size, black and white (gobo holder included)
FCLMOSAICOL
FCLMOSAICOL
(Optional)
Flightcase for 2 pcs of MOSAICOL
MOSBRACK
MOSBRACK
(Optional)
MOSLCCW2
MOSLCCW2
(Optional)
Optional color wheel 2 for MOSAICOL
MOSLCCW1
MOSLCCW1
(Optional)
Optional color wheel 1 for MOSAICOL
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMosaicol_LETTER_DATASHEET_(EN).pdf(15/01/2026)457KB
Letter datasheetMosaicol_A4_DATASHEET_(IT).pdf(15/01/2026)433KB
Letter datasheetMosaicol_A4_DATASHEET_(EN).pdf(15/01/2026)429KB
Tender SpecificationMosaicol_TENDER_SPECIFICATION.pdf(17/01/2023)4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartMosaicol_DMX_CHARTS.pdf(16/10/2023)174KB

MOSAICOL Firmware rev. 1.6

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMosaicol_3D.skp(11/02/2022)276KB
2DMosaicol_CAD_2D.dwg(08/03/2022)3MB
3DMosaicol_CAD_3D.dwg(11/02/2022)524KB
2D cad symbolsMosaicol_CAD_2DSYMBOLS.dwg(11/02/2022)53KB
Technical drawingMosaicol_TECHNICAL_DRAWING.pdf(08/03/2022)207KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(11/02/2022)422KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Color DocumentMosaicol_COLOR.pdf(08/03/2022)451KB
Gobos DocumentMosaicol_GOBOS.pdf(08/03/2022)934KB
General safety infoMosaicol_A4_GOBOS_CUSTOM_GUIDELINES(IT).pdf(03/06/2025)5MB
General safety infoMosaicol_A4_GOBOS_CUSTOM_GUIDELINES(EN).pdf(03/06/2025)5MB
General safety infoMosaicol_GOBO-MAPPING-DESIGN.pdf(12/04/2023)236KB
Noise ReportMosaicol_NOISE_REPORT.pdf(05/07/2024)590KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 30/10/2025 Improvement:
  • Improved Prism management
 Rev. 1.0
