OMEGAX26BE
PROLIGHTS

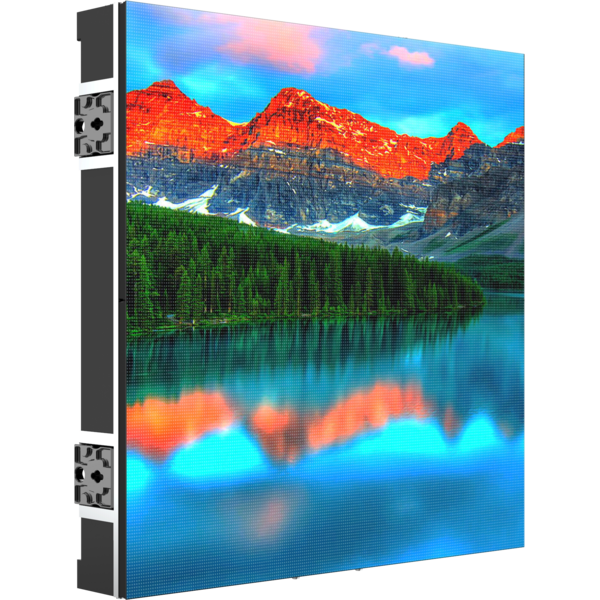

OmegaPix 26BE

ORDER CODE: OMEGAX26BE

2.6 mm pixel pitch indoor rental LED screen

OmegaPix 26BE is a revolutionary indoor 2,6 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and superior video image quality.

Mechanical / assembly features:

  • Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
  • Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
  • Front service of magnetic replacement of the LED module for immediate service
  • Climbable, designed for a quick maintenance access
  • Hot swapping of the back panel to replace PSU & electronics
  • Assisted mounting magnets allowing for a one-man quick setup
  • Ground stacking accessories available
  • Corner protection for additional safe transport in case
  • Velcro edged to avoid any gaps
  • Fly bars are suitable for both hanging or ground stacking application


Components / electronic features:

  • Premium Components
  • Module with memory to store calibration database
  • Magnetic front and back LED module replacement
  • Black&White& White mask for superior contrast and rentability
  • 18 bit+ greyscale (4x high than the market average)
  • Rotation function enabled
  • New Novastar A8s receiver
  • IP powerCON IN/OUT
  • IP dataCoN IN/OUT
  • CE, EMC, UL approved


Image quality:

  • New Novastar A8s receiving card
  • 18 bit+ greyscale, x4 higher than the market average. Effectively improved greyscale performance under low-brightness, showing more exquisite and expressive images
  • ClearView technology used adjusting the texture, size and contrast of images in different areas to further enhance the image details
  • Smart gamma correction: gamma correction is automatically applied according to the display brightness, achieving a better greyscale performance and providing clearer pictures
  • Rotation enabled: rotation of panels recognised by software @ 360°
  • RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported

Main features:

  • 2.6 mm pixel pitch indoor rental LED Screen
  • Seamless 90° angles
  • Curve configurations, concave and convex
  • Fly bar hanging/stacking
  • New Novastar A8s with 18bit+, ClearView and image rotation
See variants CONFIGURATOR

PHOTO GALLERY

OmegaPix 26BE
OmegaPix 26BE
OmegaPix 26BE
OmegaPix 26BE

Technical specifications

VIDEO
  • Driver chip type: MBI 5253
  • LED source: SMD 2121 full black
  • Pixel pitch: 2.6mm / 0.1''
  • Panel resolution: 192x192pixels
  • Module resolution: 96x96pixels
  • Luminous flux: 1.000nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 2.760Hz
  • Drive Mode: 1/32 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 147.456LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000 h
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 160W
  • Avg power consumption (panel): 53W
  • Max power consumption (sqm): 640W
  • Avg power consumption (sqm): 160W
  • Standby power consumption (pannello): 20W
  • Max rated current/panel:: AC 220 V / 0,55 A
  • Working temperature: -10°C/+45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: rotation, 22bit+, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: IP data Seetronic IN
  • Signal output: IP data Seetronic OUT
MECHANICS
  • Other specifics: curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×90.6mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 9kg / 19.84lbs
  • Weight per square meter: 36kg / 79.37lbs
  • Hanging Panel Quantity ≤: 20
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: concave 2°, 5°, 10° - convex 2°, 5°
CERTIFICATIONS / REPORTS
  • Compliance: CE, EMC, UL

Versions

Accessories & Related Products

<b>OmegaPix</b> 26C45RBE
OmegaPix 26C45RBE
(Optional)
45° R indoor LED mod, SMD2121 BF, p2,6mm, 50x50cm, 192x192pix, 1.000 nit, 9 kg
<b>OmegaPix</b> 26C45LBE
OmegaPix 26C45LBE
(Optional)
45° L indoor LED mod, SMD2121 BF, p2,6mm, 50x50cm, 192x192pix, 1.000 nit, 9 kg
OXFCM8026
OXFCM8026
(Optional)
Flightcase for 8 pcs OMEGAX26B-39B series LED-display, 1.200x600x806 mm
OXDCL01
OXDCL01
(Optional)
Data cable for OMEGAX LED display series assembled with RJ45, Seetronic, IP65, L.1,4 m
OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm
OXHGB01
OXHGB01
(Optional)
Fly bar and GroundBar for OMEGAX26B and OMEGAX39T systems, 1 column
OXHGB02
OXHGB02
(Optional)
Fly bar and GroundBar for OMEGAX26B and OMEGAX39T systems, 2 column
OXBS21
OXBS21
(Optional)
Back narrow vertical support 2 in 1
OXBS41
OXBS41
(Optional)
Back narrow vertical support 4 in 1
OXBSC
OXBSC
(Optional)
Back support connectors
OXCJ88
OXCJ88
(Optional)
Cabinet curve plate concave, 2°
OXCJ85
OXCJ85
(Optional)
Cabinet curve plate concave, 5°
OXCJ80
OXCJ80
(Optional)
Cabinet curve plate concave, 10°
OXCJ92
OXCJ92
(Optional)
Cabinet curve plate convex, 2°
OXCJ95
OXCJ95
(Optional)
Cabinet curve plate convex, 5°
OXCJB
OXCJB
(Optional)
Ground system back horizontal support for OMEGAPIX series LED wall
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
NOVAMCTRLR5
NOVAMCTRLR5
(Optional)
Video processor sender, res. 3840x1080, 8xRJ45 out, 4.6 kg
FMTOOL
FMTOOL
(Optional)
Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)
MRTOOL
MRTOOL
(Optional)
Mask Replacement TOOL for OMEGAX26B and OMEGAX26BE
OXXJ
OXXJ
(Optional)
Metal joint used to connect 4 pcs OMEGAX or SIGMAX cabinets, M10 hole

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetOmegax26be_A4_DATASHEET_(IT).pdf(05/05/2021)1MB
Letter datasheetOmegax26be_A4_DATASHEET_(EN).pdf(05/05/2021)2MB
Letter datasheetOmegax26be_OMEGAPIX_SERIES_BROCHURE.pdf(13/04/2023)12MB

User manual

File name File size Download
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualOmegax26be_Led_screen_connector_compatibi.pdf(14/10/2025)879KB
User manualOmegax26be_Led_Screen_User_Manual_EN.pdf(21/10/2022)3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DOmegax26be_CAD_2D.dwg(17/05/2021)925KB
Technical drawingOmegax26be_TECHNICAL_DRAWING.pdf(17/05/2021)300KB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_23_LIBRARY.vwx(12/07/2023)7MB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_18_LIBRARY.vwx(12/07/2023)11MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareHADZ190339 - 2760 Hz.zip(09/12/2025)10KB
SoftwareHADZ191913A - 2760Hz.zip(09/12/2025)10KB
SoftwareAUR2C2642 - 2760Hz(09/12/2025)142KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.7.0.64 STABLE 05/11/2022 Firmware version for batch AUR2C2642 and above (A8S-N)...not for all previous batches HADZ191913A and HADZ190339 (A8S).
4.7.0.85 STABLE 02/11/2022 Definitive Stable Version for batch A8S when used on batch AUR2C2642 and above.
4.5.0.56 STABLE 01/02/2017 Definitive Stable Version.
