NOVAMCTRLR5
NOVASTAR

NOVAMCTRLR5

ORDER CODE: NOVAMCTRLR5

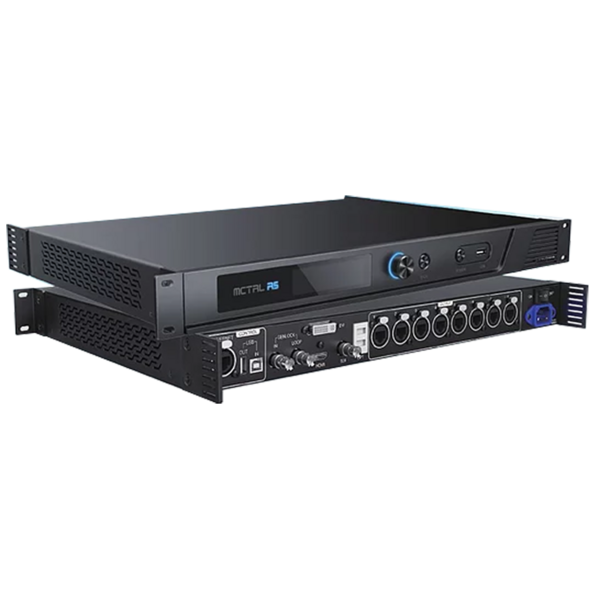

NOVAMCTRLR5 is an independent master controller developed by NovaStar with an epoch-making significance. The loading capacity of a single unit is up to 3840x1080@60Hz, which is able to meet the on-site requirements of oversized LED displays. NOVAMCTRLR5 makes it easier to create stunning rotation visual effects for users.NOVAMCTRLR5 also can be used as two independent Full-HDL controllers, which makes it more flexible to load LED displays. The design of NOVAMCTRLR5 is innovative. It allows configuring a display at any time without PC. Various video inputs such as HDLMI, dual-link DVI, SDI etc. and outputs of 8-channel Neutrik Gigabit Ethernet ports as well as 2-channel optical fibre ports are supported.


Caratteristiche principali:

  • Complete video input interfaces: 6G SDI, HDMI1.4 x 1, dual-link DVI x 2
  • Supports 8-channel Neutrik gigabit ethernet outputs and 2-channel optical fibre outputs and maximum loading capacity of a single unit up to 3840x1080 @60Hz
  • Image rotation can be realized at any area in the screen with any angle. It will much easier with cabinet, ports and screen rotation operation
  • Innovative design to enable smart configuration which has greatly shortened the time for stage preparation
  • NovaStar's G4 engine to create stable and flicker-free pictures without scanning lines, and bring smooth images with a good sense of layering
  • Supports NovaStar's latest pixel-by-pixel calibration technology, the process of which is fast and efficient
  • Enables white balance calibration and colour gamut mapping based on the different features of LED on the display to ensure the real restoration of colour
  • Screen configuration can be done at any time without PC
  • Manual adjustment of screen brightness, which makes it much easier and quicker
  • Multiple controllers are able to be cascaded for uniform control.
  • Input
  • 1 x SDI: Max. supported resolution:3840×1080 @60Hz, Max. width and height are 3840
  • 1 x HMDI: Max. supported resolution:3840×1080 @60Hz, Max. width and height are 3840
  • 2 x Dual-link DVI: Max. supported resolution:3840x1080 @60Hz and 3840×2160 @30Hz
  • Output
  • 8 x RJ45: Neutrik gigabit ethernet port
  • 2 x OPT: optical fibre port, single mode and double fibre, LC port, 1310 mm
  • OPT1 is used for transferring the data of port 1-8
  • OPT2 is the backup channel of OPT1
  • Either gigabit ethernet port or optical fibre port can be used at the same time. Two types of ports cannot be used to connect devices simultaneously
  • Control
  • 1 x ETHERNET: control interface
  • 2 x USB: control interface of the upper computer and cascading interface
  • Overall Specifications
  • Input power: AC 100-240V, 50/60Hz
  • Overall power consumption: 25W
  • Operating temperature: -20~60℃
  • Dimensions(L×W×H): 482.6×330×45 mm
  • Weight: 4.6 kg

PHOTO GALLERY

Specifiche tecniche

Varianti

Accessori e prodotti correlati

NOVACVT10S
NOVACVT10S
(Opzionale)
NOVASTAR, Convertitore single mode fibra ottica, 2 OPT in, 10 RJ45 out
NOVACVT10M
NOVACVT10M
(Opzionale)
NOVASTAR, Convertitore multi mode fibra ottica, 2 OPT in, 10 RJ45 out
NOVACVT4K-S
NOVACVT4K-S
(Opzionale)
NOVASTAR, Convertitore single mode fibra ottica, 4 OPT in, 16 RJ45 out

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareNovaLCT-MarsV4.9.092MB
SoftwareSmartLCTV3.4.082MB
SoftwareSmartLCTV3.4.0107MB

Firmware


Istruzioni per l'aggiornamento firmware

1 Scaricare il firmware (solo l'ultima versione è scaricabile - per maggiori info contattare support@prolights.it)

2 Scaricare il software per l'aggiornamento UpBox_Tool

3 Seguire le istruzioni presenti nella seguente guida
-------------------------------------------------------------------------------
Note:
  • Gli aggiornamenti firmware richiedono il tool UPBOXPRO compatibile con tutti i prodotti Prolights
  • E' possibile utilizzare UPBOX1 e UPBOX2 *DISCONTINUI* controllando la compatibilità nella scheda qui sotto
  • Il software UpBox_Tool è compatibile con tutte le interfacce di aggiornamento
  • Per aggiornare le schede di rete con file .EHEX è necessario un cavo di rete e il software Professional UploaderE' possibile utilizzare la seguente guida
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revisione Data Rilascio Firmware changelog HW Compatibility
1.0.2.1 STABLE 25/06/2018
