Onyx

100W high power white LED beam moving light

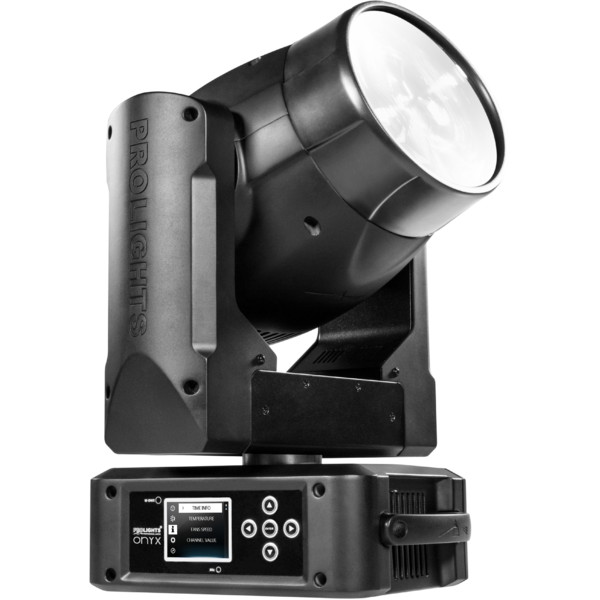

Onyx is a beam moving head featuring a lightweight and compact body, equipped with a 100W White LED source which allows a superior light output and performances comparing with traditional lamp-based fixtures. Bright, lightweight and noiseless, this unit has been designed to generate a pure and high concentrated beam, halo free and parallel.
Onyx is ideal to enlarge the number of point light without increasing the budget for the investments and for those who want to handle a compact fixture with unprecedented performance and efficiency, reducing the management costs in terms of consumption, logistics, stocking and lamp replacement

Main features:

  • 100W high power white LED
  • High efficiency optical system with a smooth-surface lens to generate a parallel beam effect
  • Projection angle: 2°
  • Effect section equipped with: rotating 8 f circular prism and frost
  • Colour system: 8 dichroic filters + open
  • Gobos group composed of 11 fixed metal gobos

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 100W 6 colour custom LEDs source (red, green, blue, cyan, mint, pc amber)
  • CCT: 6.500
  • Luminous flux: 2'300
  • Lux: 34'500lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 2°
  • Lens diameter: 150mm / 5.91''
  • Lens type: fresnel lens
COLOUR SYSTEM
  • Colour wheel: 8 colour filters
  • Macros: linear, half colours, colour bounce
DYNAMIC EFFECTS
  • Fixed gobos: 11 fixed gobos + open
  • Circular prism: 8f with bi-directional rotation
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Pan angle: 540° / 630°
  • Tilt angle: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 10 / 12 / 13 / 16channel
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 20 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 150W
  • Output (at 230V): 16 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 294x460x200mm / 11.57''x18.11''x7.87''
  • Weight: 8,5kg / 18.74lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Code
Housing
ONYXBK
ONYXBK (DISCONTINUED)
Black
ONYXWH
ONYXWH (END OF LIFE)
White

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
FCLSHINE332
FCLSHINE332
(Optional)
Flight case for 4pcs of RUBY / ONYX / CRYSTAL / RUBYFCX
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetOnyx_A4_DATASHEET.pdf485KB

User manual

DMX chart & personalities

File name File size Download
ONYX Firmware rev. 1.0.03
manufacturer fixture library (Link) Link
prolights_onyx.d4Download
manufacturer fixture library (Link) Link
prolights_onyx_10ch.hedDownload
prolights_onyx_12ch.hedDownload
prolights_onyx_13ch.hedDownload
prolights_onyx_16ch.hedDownload
manufacturer fixture library (Link) Link
onyx_10ch.fdfDownload
onyx_12ch.fdfDownload
onyx_13ch.fdfDownload
onyx_16ch.fdfDownload
onyx_ssl.zipDownload
onyx_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@onyx@basic-8bit@ma_library_update_v13.1.xmlpDownload
prolights@onyx@basic-16bit@ma_library_update_v13.1.xmlpDownload
prolights@onyx@extended@ma_library_update_v13.1.xmlpDownload
prolights@onyx@standard@ma_library_update_v13.1.xmlpDownload
manufacturer fixture library (Link) Link
onyx_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
onyx basic-8bit.fix2Download
onyx basic-16bit.fix2Download
onyx extended.fix2Download
onyx standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DOnyx_CAD_2D.dwg749KB
3DOnyx_CAD_3D.dwg944KB
Technical drawingOnyx_TECHNICAL_DRAWING.pdf161KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.03 STABLE 19/05/2017 Improved Firmware functionality. Rev. 1
Rev. 2

Info Request
