PIXBAR3E
PROLIGHTS
discontinued

PIXBAR3E

ORDER CODE: PIXBAR3E

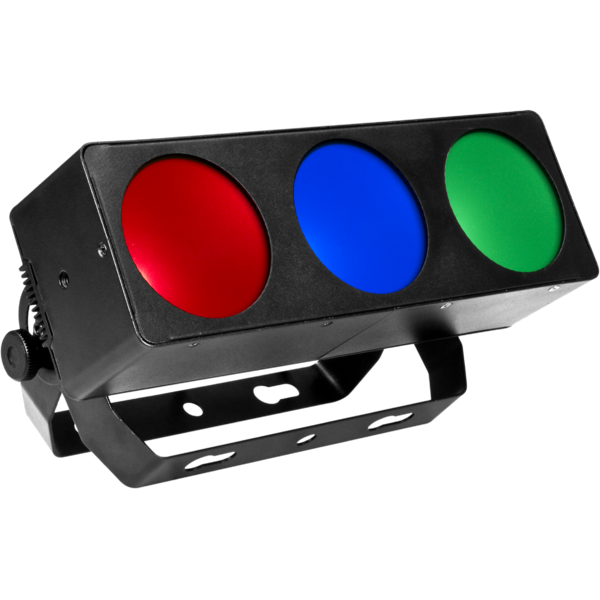

PIXBAR3E is a linear bar composed of 3x15 W RGB/FC COB LED, equipped with pixel-control to provide an enhanced generation of effects, overcoming the concept of a mere illuminator. The special parables joined optics in combination with LED 15W COB (chip-on-board) give to PIXBAR3E unprecedented light output able to dazzle the audience. Each LED of PIXBAR3E can be controlled independently, giving to the designers an advanced stage-generation eye-candy effects, animations pixel-mapping, video playback and blinder. The bracket allows the installation on a truss, making PIXBAR3E a projector with an extremely flexible and versatile design, ideal for clubs, tours, broadcast and scenery.

Main features:

  • 3x15W COB RGB / FC LED
  • LED + parabolic reflector featuring wide beam coverage like classic DWE lamps
  • Pixel control: individual control of each single LED
  • Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation
See variants

PHOTO GALLERY

PIXBAR3E
PIXBAR3E
PIXBAR3E
PIXBAR3E
PIXBAR3E

Technical specifications

LIGHT SOURCE
  • Source: 3x15W RGB LED
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 60°
  • Pixel pitch: 115mm / 4.53''
  • Lens type: parabolic reflector in combination with HD fresnel lens
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: sturdy aluminum profile
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 5 / 9 / 10 / 13channel
  • Pixel control: pixel2pixel control
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 45W
  • Output (at 230V): 24 units on a single power line
PHYSICAL
  • IP rating: 33
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Signal connection: 3p IN/OUT
  • Power connection: IEC 10 A IN/OUT
  • Dimensions (WxHxD): 344x115x254mm / 13.54''x4.53''x10''
  • Weight: 3,6kg / 7.94lbs
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualPixbar3e_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
PIXBAR3E Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_pixbar3e.d4Download
manufacturer fixture library (Link) Link
prolight_pixbar3e_3ch.hedDownload
prolight_pixbar3e_5ch.hedDownload
prolight_pixbar3e_9ch.hedDownload
manufacturer fixture library (Link) Link
pixbar3e_3ch.fdfDownload
pixbar3e_5ch.fdfDownload
pixbar3e_9ch.fdfDownload
pixbar3e_10ch.fdfDownload
pixbar3e_13ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@pixbar_3e@3_channel@initial.xmlpDownload
prolights@pixbar_3e@5_channel@initial.xmlpDownload
prolights@pixbar_3e@9_channel@initial.xmlpDownload
prolights@pixbar_3e@10_channel@initial.xmlpDownload
prolights@pixbar_3e@13_channel@ma_library_update_v15.0.xmlpDownload
manufacturer fixture library (Link) Link
pixbar 3e 3 channel.fix2Download
pixbar 3e 5 channel.fix2Download
pixbar 3e 9 channel.fix2Download
pixbar 3e 10 channel.fix2Download
pixbar 3e 13 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 18/04/2018 Improved firmware functionality.
