Pixpan 16

ORDER CODE: PIXPAN16

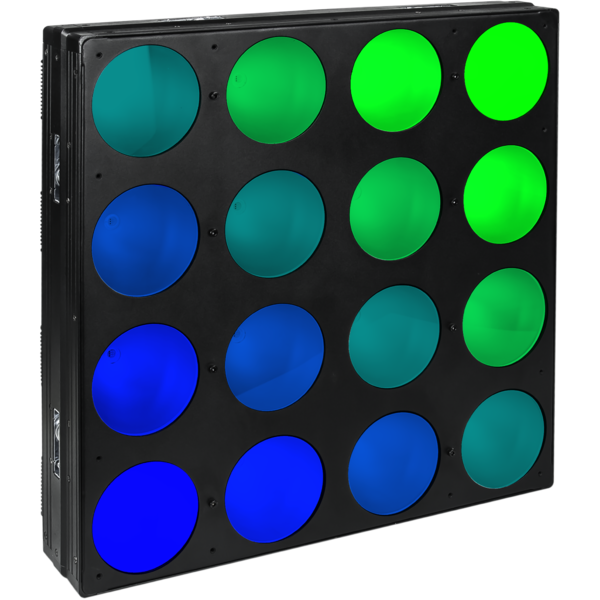

PIXPAN16 is a LED matrix consisting of 16x30 W RGB / FC COB LEDs, conceived to revolutionize the concept of pixel-control applied to lighting by LED sources.
The special optics reflectors in combination with 30 W COB (chip-on-board) LEDs give PIXPAN16 an unprecedented light output capable of impressing and dazzling the audience. Mechanical components of PIXPAN16 consist of locks and coupling inserts, allowing a highly versatile use in suspension on truss, stacked on the floor or in low-res LED wall composition.

Main features:

  • 16(4x4 matrix)x 30W COB RGB / FC LEDs
  • LED + parabolic reflector featuring wide beam coverage like classic DWE lamps
  • Pixel control: individual control of each single LEDs
  • Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation
See variants

PHOTO GALLERY

Pixpan 16
Pixpan 16
Pixpan 16

Technical specifications

LIGHT SOURCE
  • Source: 16x30W RGB COB LED
  • Luminous flux: 5'251
  • Lux: 827lx @3 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 47°
  • Field angle: 79°
  • Pixel pitch: 115mm / 4.53''
  • Lens type: parabolic reflector in combination with HD fresnel lens
COLOUR SYSTEM
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed static and dynamic patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 3 / 5 / 7 / 48ch
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
CONNECTIONS
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Signal connection: DMX 3p + 5p IN/OUT
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 390W
  • Output (at 230V): 5 units on a single power line
PHYSICAL
  • IP rating: IP44
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy aluminium profile
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 460x460x360mm / 18.11''x18.11''x14.17''
  • Weight: 8kg / 17.64lbs
INSTALLATION
  • Suspension and fixing: - bracket for truss rigging and hardware for connection of more units
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT

Versions
