PIXROLL10UTRI
TRIBEby TRIBE
discontinued

PIXROLL10UTRI

ORDER CODE: PIXROLL10UTRI

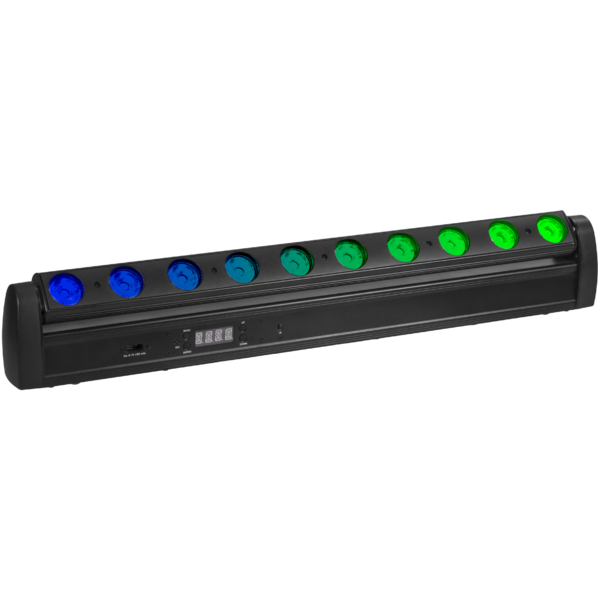

PIXROLL10UTRI is a motorised linear LED luminaire designed to be bright and add movements on the stage. The light source is composed of 10x7,2 W RGB / FC LED that can be controlled in the pixel2pixel mode with 250° motorised tilt inclination through DMX. The motorisation of the tilt axis allows the addition of numerous options to this light, such as the creation of partitions, barriers or mobile virtual doors.

Main features:

  • 10 x 7,2 W RGB / FC high-efficiency LED
  • Pixel control of every individual LED
  • Motorised tilt axis with rotation to 250°
  • Flicker-free operations
See variants

PHOTO GALLERY

PIXROLL10UTRI
PIXROLL10UTRI
PIXROLL10UTRI
PIXROLL10UTRI

Technical specifications

LIGHT SOURCE
  • Source: 10x7,2W RGB LEDs
  • Luminous flux: 2'150
  • Lux: 2'541lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 15°
  • Field angle: 25°
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Special features: motorised tilt 0° - 250°
BODY
  • Tilt range: 0° - 250°
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 5 / 6 / 8 / 10 / 17 / 32 / 36channel
  • Pixel control: pixel2pixel control
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +40° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 82,8W
  • Max power consumption (at 120V): 85W
  • Output (at 230V): 6 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 785x123x67mm / 30.91''x4.84''x2.64''
  • Weight: 4,3kg / 9.48lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualPixroll10utri_USER_MANUAL_ITEN.pdf2MB

    DMX chart & personalities

    File name File size Download
    PIXROLL10UTRI Firmware rev. 1.2
    manufacturer fixture library (Link) Link
    prolights_pixroll10utri_5ch.hedDownload
    prolights_pixroll10utri_6ch.hedDownload
    prolights_pixroll10utri_8ch.hedDownload
    prolights_pixroll10utri_10ch.hedDownload
    prolights_pixroll10utri_17ch.hedDownload
    prolights_pixroll10utri_32ch.hedDownload
    prolights_pixroll10utri_36ch.hedDownload
    manufacturer fixture library (Link) Link
    prolights@pixroll_10u_tri@5_channel@ma_library_update_v14.2.xmlpDownload
    prolights@pixroll_10u_tri@6_channel@ma_library_update_v14.2.xmlpDownload
    prolights@pixroll_10u_tri@8_channel@ma_library_update_v14.2.xmlpDownload
    prolights@pixroll_10u_tri@10_channel@ma_library_update_v14.2.xmlpDownload
    prolights@pixroll_10u_tri@17_channel@ma_library_update_v14.2.xmlpDownload
    prolights@pixroll_10u_tri@32_channel@ma_library_update_v14.2.xmlpDownload
    prolights@pixroll_10u_tri@36_channel@ma_library_update_v14.2.xmlpDownload

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download
    2DPixroll10utri_CAD_2D.dwg2MB
    3DPixroll10utri_CAD_3D.dwg7MB
    Technical drawingPixroll10utri_TECHNICAL_DRAWING.pdf264KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware


    Firmware update instructions

    1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

    2 Download the updater software UpBox_Tool

    3 Follow the instructions in the following guide
    -------------------------------------------------------------------------------
    Notes:
    • Firmware updates require the UPBOXPRO compatible with all Prolights products
    • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
    • UpBox_Tool  software is compatible with all UPBOX interfaces
    • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
    Update Tool: {Upbox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.2 STABLE 20/05/2017 Added a function: IR remote can control motor.
