by TRIBE

QUADRO18TRI

ORDER CODE: QUADRO18TRI

Main features:

---

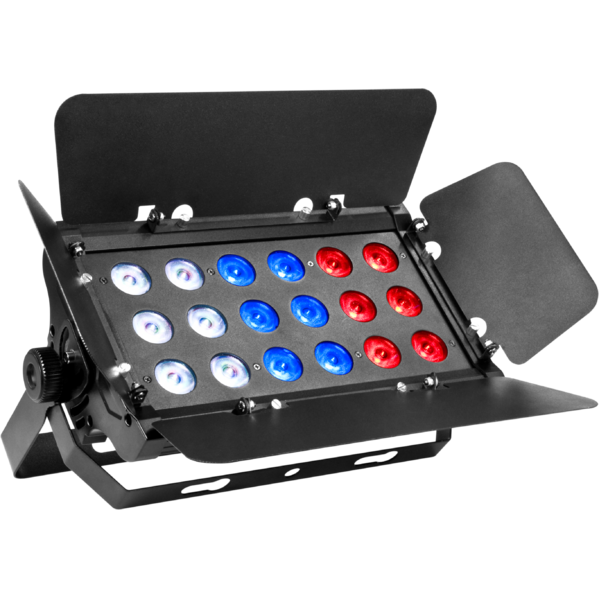

QUADRO18TRI is a LED projector with a superslim design and high luminous efficiency, through the use of 18LED 3W RGB with color calibration RGB/FullColor. The ultra-thin design and the fanless operation, make QUADRO18TRI an innovation, compared to the bulky-structured traditional projectors, providing greater versatility, quick installation and ease of transport. The electronic of QUADRO18TRI allows control of the LED panel into three independent sections, making it possible for operators to create dynamic color effects of the Stage.

Light source and optics

• 18x3W RGB/FC LEDs high brightness
• Beam angle: 16°
• Angle of view: 25°
• Preset white color temperature: 3200K ~ 10'000K
• Color synthesis: TriColor mixing (> 16 million colors)
• LEDs average life span:> 50,000 hours

Electronics and features

• Control Panel with LED display (4-digits)
• Several DMX configurations (3, 5, 9, 13 channels) for professional or simplified control
3 channels: RGB
5 channels: Dimmer, RGB, strobe
9-channel: Dimmer, RGB, strobe, macro, auto, speed, dimmer curves
13-channel: RGB (3pixel), car, speed, dimmer, strobe

• Adjusting dimmer curve: 4 selectable configurations
• Independent control in three sections of the LED panel
• Auto mode: 13 preset programs with automatic speed adjustment
• Color mode static: static reproduction of a color
• Master / Slave: For the control of several units linked in a chain
• Sound Mode: Switch music via the internal microphone, sensitivity control
• Linear passage "stepless" DMX values
• Frequency diode anti-flicker (400Hz) for video recordings

Structure and power supply

• Cast aluminum body, degree of protection: IP33
• Projector fanless and structure designed for heat dissipation by natural convection
• Double-bracket for mounting suspension or placement from the ground
• 4 barn-doors including adjustable and removable
• Wiring IN / OUT signal and power connections through XLR3p/VDE
• Power supply :100-240V 50/60Hz
• Average power consumption: 63W (output up to 16 projectors)
• Weight: 4,5 kg
• Dimensions (WxHxD): 389x197x187 mm
