REFLEX
PROLIGHTS
discontinued

REFLEX

ORDER CODE: REFLEX

Main features:

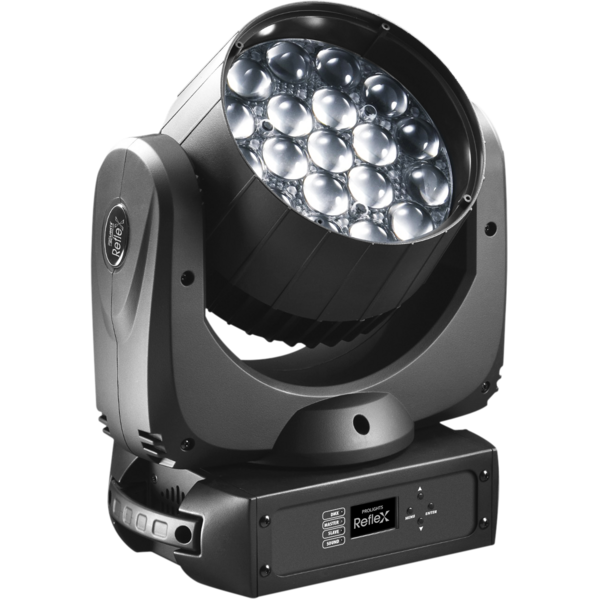

    REFLEX is latest innovative LED wash-beamer by Prolights, featuring a special single-lens optics with fully pre-mixed colors and a wide angle fast-zoom in amazingly compact dimensions.
    The peculiar single-lens optical system with plano-convex endings enhances the 19x10W Osram Ostar FullColor LED source through a reflecting technique implying colors to be pre-mixed in optical channels. A technical solution allowing a chromatic naturalism that is simply out of reach for LED-powered projectors of previous generations.
    REFLEX also features a 10°-60° unrivalled zoom to have fantastic beam effects with great definition or to angle wide for high-diffusion wash looks. Excellent efficiency and perfect chromatic uniformity are maintained throughout the zoom range.
    REFLEX delivers an output of nearly 4000 lumens in a highly compact unit weighing only 9 kgs, standing out as the moving head having highest performance/dimensions ratio.
    Extreme speed and precision of movements is guaranteed by the ultra-lightweight chassis and by usage of 3-step motors, allowing REFLEX to be as fast as the moving mirror of scanners in its movements.
    Projection of all color shades is remarkably natural and uniform, with brilliant saturated colors across beautiful pastels to different shades of color temperature for white.
    High efficiency of cooling system and optics allow REFLEX to be extremely silent even for those noise-sensitive environments like theatres and TV studios.
    Power consumption is limited to 240W only, daisy-chain of several fixtures on the same power line makes installation easier and faster.

    Light source and optics
    • 19 x 10W RGBW FullColor Osram Ostar LEDs
    • Lumens: 3950 lm
    • Lux @3m: 16'000
    • Colour synthesis: RGBW FullColor mixing (>16 million colours) for a limitless colour range and variable CTC control
    • White temperature presets: 3200K~10000K
    • Beam angle: 10°-60° Fast-Zoom
    • Electronic linear zoom with motorized and scrolling lens panel
    • LEDs average life span: >50'000 h

    Dimmer/Shutter/Strobe/Colors
    • 0-100% linear dimmer
    • 4 different dimming curves available
    • Independent shutter and fading effects with adjustable speed
    • Strobe: Electronic, 1-20 flash per second
    • Virtual color wheel with LEE and rainbow presets
    • CTC control through independent DMX channel
    • Backlit single-lens optics for stunning visual effects

    Electronics
    • Black&White& White LCD display for simplified access to control menu, configuration and DMX addressing
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (>400Hz)
    • DMX configuration: 15 channels
    • 2,4GHz Wireless DMX antenna receiver by Wireless Solution Sweden
    • Unit reset: through control panel or via DMX
    • Cooling: forced ventilation with variable-speed low-noise fans, no heat generation

    Structure and moving body
    • Hi-resistance polymer case designed for improved heat dissipation
    • Internal protection: IP33
    • Power cable (shuko 1,5mt) included
    • 3phase motor for precise and ultra-fast moves
    • Motion Angle: Pan = 540° Tilt = 220°
    • Pan/Tilt resolution: 8-bit or 16-bit:
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Suspension and fixing: any possible working position through "quick lock" omega brackets (included)

    Power supply
    • Power supply: 100-240V 50/60Hz
    • Connections: PowerCON IN/OUT
    • Power output allowing up to 8 units to be connected on a single power line (at 230V)
    • Max power consumption: 245W

    Weight and dimensions
    • Weight: 9,2 kg
    • Dimensions (WxHxD): 324x395x188 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualReflex_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
REFLEX Firmware rev. 21-12-14
manufacturer fixture library (Link) Link
prolights_reflex.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
reflex_15ch.fdfDownload
reflexs_15ch.fdfDownload
refelx.15ch.sslDownload
manufacturer fixture library (Link) Link
prolights@reflex@00@ma_library_update_v13.2.xmlpDownload
manufacturer fixture library (Link) Link
reflex_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
reflex s.fix2Download
reflex.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
21-12-14 STABLE 30/01/2018 Improved Retrasmitt function. MENU+UP+DOWN buttons and then ENTER button for adjust screen contrast after firmware upgrade. Adjust contrast with UP and DOWN buttons and then confirm with ENTER button.

Update with UPBOX1
