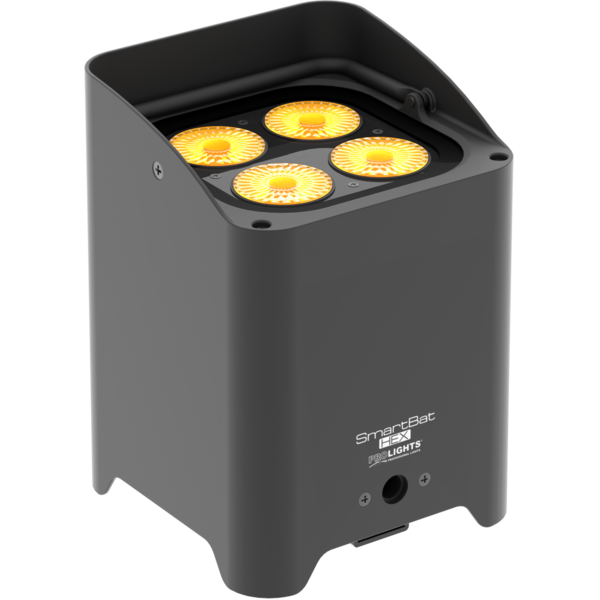

Smart BatHEX

Wireless battery operated portable uplighter, 4x12W RGBWAP/FC LEDs

Smart BatHEX is a wireless luminaire designed to compleely change the rules in the field of battery operated fixtures for event lighting, merging performance and good-design in a compact size and price that makes it affordable for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors mobile spp or through the IR controller - making it suitable for users of all levels.

Main features:

  • Wireless operated: through proprietary wireless DMX protocol or the SmartColors app (IOS and Android devices)
  • Long lasting battery life: 12h in colour changing mode / 8 h in FULL
  • Available in black or white
  • Adjustable foot support for tilt regulation (up to 20°)
See variants

PHOTO GALLERY

Smart BatHEX
Smart BatHEX
Smart BatHEX
Smart BatHEX
Smart BatHEX
Smart BatHEX

Technical specifications

LIGHT SOURCE
  • Source: 4x12W RGBWAP LEDs
  • Luminous flux: 1'007
  • Lux: 805,5lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 23°
  • Lens diameter: 42mm / 1.65''
  • Additional optics: 25° and 45° optional
COLOUR SYSTEM
  • Colour mixing: RGBWAP / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 6 / 8 / 12channel
  • Wireless Control: integrated, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +40°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 35W
  • Max power consumption (at 120V): 36W
BATTERY
  • Battery: 24V lithium
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: power cable
  • Re-charge time: 5h/max
  • Battery status: LED battery status indicator
PHYSICAL
  • IP rating: 33
  • Cooling: passive cooling and fan-free
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 138x186x145mm / 5.43''x7.32''x5.71''
  • Weight: 3,4kg / 7.5lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
SMARTBATHEXBK
SMARTBATHEXBK
Black
SMARTBATHEXWH
SMARTBATHEXWH
White

Accessories & Related Products

RSR0630B
RSR0630B
(facoltativo)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(facoltativo)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
LUMIPARIRCH
LUMIPARIRCH
(incluso)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
C6018B
C6018B
(facoltativo)
Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, black
<b>WIFI</b>-Box
WIFI-Box
(facoltativo)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(facoltativo)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
FCLSMARTBAT
FCLSMARTBAT
(facoltativo)
Flight case for 9 SMARTBAT, 613x480x507 mm, 22 kg
FCLSMARTBATE
FCLSMARTBATE
(facoltativo)
Flightcase for 9x SMARTBAT, 626x364x481 mm, 19 kg
SMARTCOVERMR
SMARTCOVERMR
(facoltativo)
Mirror housing for SMARTBAT projectors.
SMARTBATCOVER
SMARTBATCOVER
(facoltativo)
Nylon rain-proof cover for SMARTBAT projector
SMARTBATBAGI
SMARTBATBAGI
(facoltativo)
New nylon bag high resistance to contain 4 pcs SMARTBAT projectors.
ARCLUMIL25D42
ARCLUMIL25D42
(facoltativo)
Optic lens 25°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(facoltativo)
Optic lens 45°, D.42mm
<b>Upbox</b> 1
Upbox 1
(facoltativo)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(facoltativo)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartbathex_A4_DATASHEET_(EN).pdf144KB
Letter datasheetSmartbathex_A4_DATASHEET_(IT).pdf144KB

User manual

DMX chart & personalities

File name File size Download
DMX chartSmartbathex_DMX_CHARTS.pdf49KB
SMARTBATHEX Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_smartbathex.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
smartbathex_6ch.fdfDownload
smartbathex_8ch.fdfDownload
smartbathex_12ch.fdfDownload
manufacturer fixture library (Link) Link
SMARTBATHEX Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_smartbathex.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
smartbathex_6ch.fdf Download
smartbathex_8ch.fdf Download
smartbathex_12ch.fdf Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKPSmartbathex_3D.skp628KB
2DSmartbathex_CAD_2D.dwg695KB
Technical drawingSmartbathex_TECHNICAL_DRAWING.pdf86KB
VectorWorksSMARTBATHEX_SYMBOLS.zip432KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 02/12/2019 Improved Auto-Program.
1.1 STABLE 28/10/2015 Improved firmware functionality.
