SMARTBATPNEOPAC
PROLIGHTS

Smart BatPlusNEOPack

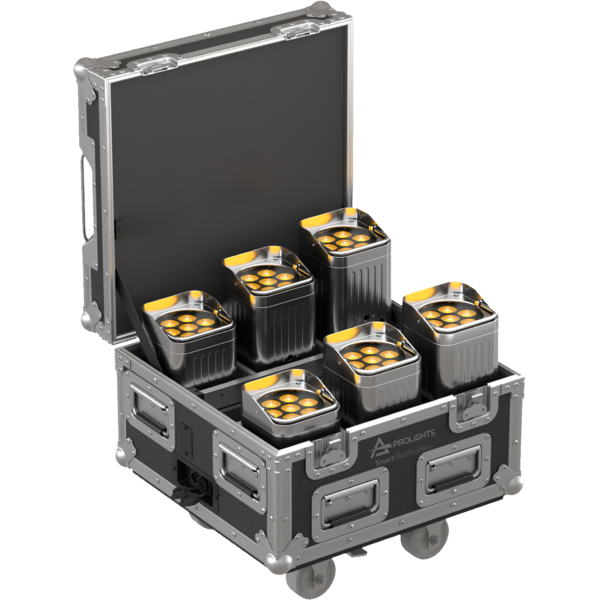

Pack with 6 SMARTBATPLUSNEO, battery charger flight case, IR controller, power cable

The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

The pack includes:

  • 6 x SMARTBATPLUSNEO
  • 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTBATPNEO)
  • 1 IR controller (PRL-IRC)
  • 1 PowerCON power cable

Main features:

  • Maximum power consumption during charging is 570W
  • Pack Weight: 50,5 kg

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x10W RGB + Warm White LED
  • Luminous flux: 2'927 lm @Full
  • Lux: 1'493lx @5 m full
  • CRI: Up to 90
  • R9: Up to 80
  • TLCI: Up to 80
  • TM30 Rf: > 90
  • TM30 Rg: < 107
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 11°
  • Field angle: 21°
  • Additional optics: see available accessories
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • White presets: 3.200 K -9.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: CRMX+W-DMX, RDM
  • DMX channels: 1 / 3 / 4 / 5 / 10 / 11 / 17ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • IR: infrared sensor controlled by remote
MOVEMENT
  • Tilt: (up to) 20° with adjustable foot support
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life: up to 3 / 6 / 8 / 12 / 18 / 24 h (selectable)
  • Recharge connection: magnetic fast-charge in case
  • Recharge time: 4h (max)
  • Battery level indicator: shown on display
CONNECTIONS
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: CRMX transreceiver
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
  • Max power consumption (230V): 66W
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black or mirror
  • Operating temperature: Ta 0 to +45 °C (+32 to +113 °F)
  • Dimensions (WxHxD): 138x180x147mm / 5.43''x7.09''x5.79''
  • Weight: 3,4kg / 7.5lbs
INSTALLATION
  • Suspension and fixing: M12 threaded insert for easy clamp installation
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus

Versions

Code
Finishing
SMARTBATPNEOPACK
SMARTBATPNEOPACK
Chrome
SMARTBATPNEOPACKB
SMARTBATPNEOPACKB
Black

Accessories & Related Products

FCLSMARTBATPNEO
FCLSMARTBATPNEO
(Included)
Flight case for 6 SMARTBATPLUSNEO, battery charger included
<b>IR</b> Controller
IR Controller
(Included)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
SBPNEOL10
SBPNEOL10
(Included)
Lens for SMARTBATPLUSNEO series, 10°
SBPNEOL20
SBPNEOL20
(Optional)
Lens for SMARTBATPLUSNEO series, 20°
SBPNEOL35
SBPNEOL35
(Optional)
Lens for SMARTBATPLUSNEO series, 35°
SBPNEOL60
SBPNEOL60
(Optional)
Lens for SMARTBATPLUSNEO series, 60°
SBPNEOFILT20
SBPNEOFILT20
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 20°
SBPNEOFILT40
SBPNEOFILT40
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 40°
SBPNEOFILT60
SBPNEOFILT60
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 60°
SBPNEOFILT1060
SBPNEOFILT1060
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 10°x60°
SBPNEOFILT3060
SBPNEOFILT3060
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 30°x60°
SBPNEOFF
SBPNEOFF
(Optional)
Filter frame for SMARTBATPLUSNEO series
SBPNEOSNOOT
SBPNEOSNOOT
(Optional)
Snoot for SMARTBATPLUSNEO series
SBPNEOPOWER
SBPNEOPOWER
(Optional)
SMARTBATPLUSNEO recharging base
SBPUPBOXI
SBPUPBOXI
(Optional)
Interface between UPBOX1 and SMARTBATPLUS and SMARTBATPLUSNEO for make firmware upgrade
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartbatpneopack_A4_DATASHEET_(ITA).pdf(23/06/2025)1MB
Letter datasheetSmartbatpneopack_A4_DATASHEET_(EN).pdf(23/06/2025)1MB

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DSmartbatpneopac_CAD_2D.dwg(01/07/2024)8MB
Technical drawingSmartbatpneopac_TECHNICAL_DRAWING.pdf(01/07/2024)474KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
