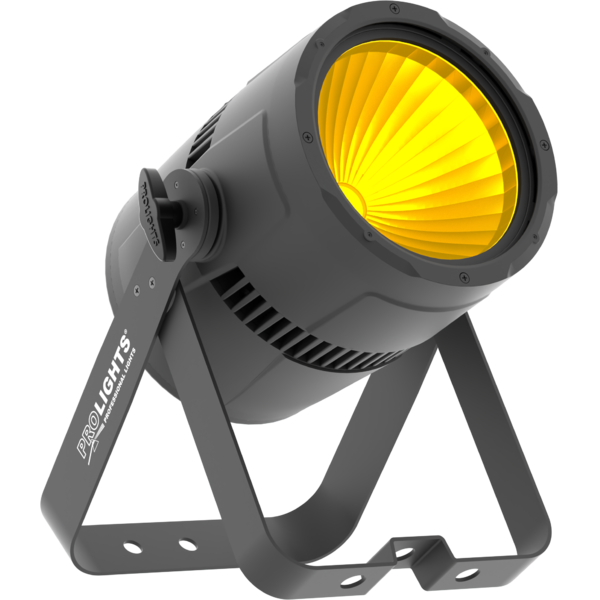

StudioCob FC

150W full colour COB PAR with parabolic reflector

StudioCob FC is a powerful, incredibly versatile and full colour LED PAR. Fusing the old and the new, it pairs a full colour COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • 150W full colour COB LED source with HD dimming and an extensive and even colour palette
  • Flexible lens options of 15° - 30° - 60°
  • Functional barn doors for beam control
  • RAL9003 white housing
See variants

PHOTO GALLERY

StudioCob FC
StudioCob FC
StudioCob FC
StudioCob FC
StudioCob FC
StudioCob FC
StudioCob FC
StudioCob FC

Technical specifications

LIGHT SOURCE
  • Source: 150W COB RGB / FC LED
  • Luminous flux: 3'682
  • Lux: (60°) 428lx @3 m full
  • Lux: (30°) 908lx @3 m full
  • Source life expectancy: > 30.000 hrs (L80B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (inc) - 15° (opt)
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror and white finishing available black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 5 / 8channel
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 145W
  • Max power consumption (at 120V): 145W
  • Output (at 230V): 30 units on a single power line
  • Power factor: 0,96
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
STUDIOCOBFCBK
STUDIOCOBFCBK (DISCONTINUED)
Black
STUDIOCOBFCCR
STUDIOCOBFCCR (END OF LIFE)
Chrome
STUDIOCOBFCWH
STUDIOCOBFCWH (DISCONTINUED)
White

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
STUDIOCOBL30
STUDIOCOBL30
(Included)
Optics for STUDIOCOB projectors series, 30°
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStudiocobfc_A4_DATASHEET_(IT).pdf416KB
Letter datasheetStudiocobfc_A4_DATASHEET_(EN).pdf432KB

User manual

File name File size Download
User manualStudiocobfc_USER_MANUAL_ITEN.pdf4MB

DMX chart & personalities

File name File size Download
DMX chartStudiocobfc_DMX_CHARTS.pdf49KB
STUDIOCOBFC Firmware rev. 3.1
manufacturer fixture library (Link) Link
prolights_studiocobfc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studiocobfc_3ch.fdfDownload
studiocobfc_5ch.fdfDownload
studiocobfc_8ch.fdfDownload
studio cob fc_mode1.sslDownload
studio cob fc_mode2.sslDownload
studio cob fc.ssl2Download
manufacturer fixture library (Link) Link
prolights@studio_cob_fc@3_channel@initial.xmlpDownload
prolights@studio_cob_fc@5_channel@initial.xmlpDownload
prolights@studio_cob_fc@8_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob fc 3 channel.fix2Download
studio cob fc 5 channel.fix2Download
studio cob fc 8 channel.fix2Download
manufacturer fixture library (Link) Link
STUDIOCOBFC Firmware rev. 2.1
manufacturer fixture library (Link) Link
prolights_studiocobfc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studiocobfc_3ch.fdfDownload
studiocobfc_5ch.fdfDownload
studiocobfc_8ch.fdfDownload
studio cob fc_mode1.sslDownload
studio cob fc_mode2.sslDownload
studio cob fc.ssl2Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob fc 3 channel.fix2Download
studio cob fc 5 channel.fix2Download
studio cob fc 8 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAStudiocobfc_3D.rfa1MB
3D SKPStudiocobfc_3D.skp2MB
2DStudiocobfc_CAD_2D.dwg3MB
3DStudiocobfc_CAD_3D.dwg540KB
2D cad symbolsStudiocobfc_CAD_2DSYMBOLS.dwg81KB
Technical drawingStudiocobfc_TECHNICAL_DRAWING.pdf422KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksSTUDIOCOBFC_SYMBOLS.zip3MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 13/06/2022 Firmware for units with fan different from SUNON.
  • Improved fan management in HIGH fan mode
3.2 STABLE 11/09/2021 Firmware for units with fan different from SUNON.
  • Improved Standalone mode operation (Auto/Static). Until you will not set any Auto or Static on the unit, when DMX signal will be lost, the unit will hold the last
    DMX frame received. If you set an Auto or Staic on the unit, when DMX signal will be lost, the unit will return on selected Auto or Static.
2.2 STABLE 11/09/2021 Firmware for units with SUNON fan.
  • Improved Standalone mode operation (Auto/Static). Until you will not set any Auto or Static on the unit, when DMX signal will be lost, the unit will hold the last DMX frame received. If you set an Auto or Staic on the unit, when DMX signal will be lost, the unit will return on selected Auto or Static.
3.1 STABLE 01/07/2019 Firmware for units with fan different from SUNON.
  • Changed the name of the unit showed on the display to STUDIOCOBFC.
 Rev. 1.0
2.1 STABLE 01/07/2019 Firmware for units with SUNON fan.
  • Changed the name of the unit showed on the display to STUDIOCOBFC.
 Rev. 2
