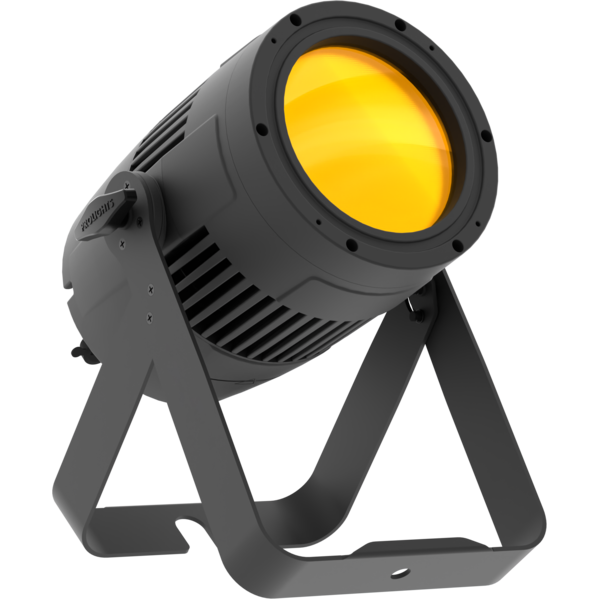

StudioCob PFC2

150W IP65 rated full colour COB LED Par

StudioCob PFC2 is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 150W RGBW COB LED source with HD dimming with an extensive and even colour palette
  • Flexible lens options of 18° - 38° - 60°
See variants

PHOTO GALLERY

StudioCob PFC2
StudioCob PFC2
StudioCob PFC2
StudioCob PFC2
StudioCob PFC2
StudioCob PFC2

Technical specifications

LIGHT SOURCE
  • Source: 150W COB RGBW / FC LED
  • CCT: white LED 5'700
  • Luminous flux: (18°) 3'632
  • Lux: (18°) 2'958lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
  • Field angle: (on-board) 36° - (inc) 63°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 38° (inc)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 4 / 6 / 10channel
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 140W
  • Max power consumption (at 120V): 145W
  • Output (at 230V): 22 units on a single power line
  • Power factor: 0,96
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 259x187x370mm / 10.2''x7.36''x14.57''
  • Weight: 5,6kg / 12.35lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
STUDIOCOBPFC2BK
STUDIOCOBPFC2BK (DISCONTINUED)
Black
STUDIOCOBPFC2WH
STUDIOCOBPFC2WH (DISCONTINUED)
White

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBPLUSL38
STUDIOCOBPLUSL38
(Included)
Optics for STUDIOCOBLUS projectors series, 38°
STUDIOCOBTPG
STUDIOCOBTPG
(Optional)
Filter frame for STUDIOCOB projectors
STUDIOCOBPLUSL60
STUDIOCOBPLUSL60
(Optional)
Optics for STUDIOCOBLUS projectors series, 60°
STUDIOCOBBD
STUDIOCOBBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
FCLCOBPLUS
FCLCOBPLUS
(Optional)
Flight case for 8 STUDIOCOBPLUS
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStudiocobpfc2_A4_DATASHEET_(EN).pdf390KB
Letter datasheetStudiocobpfc2_LETTER_DATASHEET_(EN).pdf390KB

User manual

DMX chart & personalities

File name File size Download
DMX chartStudiocobpfc2_DMX_CHARTS.pdf84KB
STUDIOCOBPFC2 Firmware rev. 1.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAStudiocobpfc2_3D.rfa1MB
3D sketchupSTUDIOCOBPFC2_3D_SKETCHUP.zip741KB
2D cad symbolsStudiocobpfc2_CAD_2DSYMBOLS.dwg65KB
2DStudiocobpfc2_CAD_2D.dwg5MB
3DSTUDIOCOBPFC2_3D.zip1MB
Technical drawingStudiocobpfc2_TECHNICAL_DRAWING.pdf226KB
VectorWorksSTUDIOCOBPFC2_SYMBOLS.zip1MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 31/10/2023 Improvement:
  • Increased to 65535 the maximum working hours of the device.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 17/09/2021
  • First stable firmware release.
