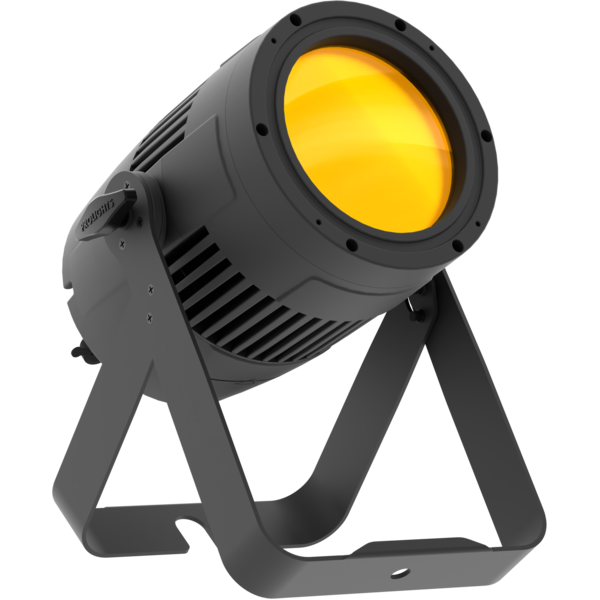

StudioCob PlusFC

150W IP65 rated full colour COB LED Par

StudioCob PlusFC is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 150W RGBW COB LED source with HD dimming with an extensive and even colour palette
  • Flexible lens options of 18° - 38° - 60°

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 150W RGBW COB LED
  • Luminous flux: (18°) 3'530 lm - (38°) 3'172
  • Lux: (18°) 2'558lx @3 m full
  • Lux: (38°) 645lx
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
  • Field angle: (on-board) 36° - (inc) 63°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 38° (inc)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 4 / 6 / 10ch
  • RDM: for remote addressing and parameter configuration
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 140W
  • Output (at 230V): 18 units on a single power line
  • Max power consumption (120V): 145W
  • Power factor: 0,96
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black or white finishing
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 259x187x370mm / 10.2''x7.36''x14.57''
  • Weight: 5,6kg / 12.35lbs
INSTALLATION
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
STUDIOCOBPLUSFCWH
STUDIOCOBPLUSFCWH (DISCONTINUED)
White

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBTPG
STUDIOCOBTPG
(Optional)
Filter frame for STUDIOCOB projectors
STUDIOCOBBD
STUDIOCOBBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStudiocobplusfc_LETTER_DATASHEET_(EN).pdf(28/09/2021)384KB
Letter datasheetStudiocobplusfc_A4_DATASHEET_(IT).pdf(30/04/2021)435KB
Letter datasheetStudiocobplusfc_A4_DATASHEET_(EN).pdf(02/09/2021)383KB

User manual

File name File size Download
User manualStudiocobplusfc_USER_MANUAL_ITEN.pdf(30/06/2021)2MB

DMX chart & personalities

File name File size Download
DMX chartStudiocobplusfc_DMX_CHARTS.pdf(30/06/2021)53KB

STUDIOCOBPLUSFC Firmware rev. 2.6

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_4ch.hedDownload
prolights_studiocobplusfc_6ch.hedDownload
prolights_studiocobplusfc_10ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob plus fc 4 channel.fix2Download
studio cob plus fc 6 channel.fix2Download
studio cob plus fc 10 channel.fix2Download

STUDIOCOBPLUSFC Firmware rev. 2.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_4ch.hedDownload
prolights_studiocobplusfc_6ch.hedDownload
prolights_studiocobplusfc_10ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob plus fc 4 channel.fix2Download
studio cob plus fc 6 channel.fix2Download
studio cob plus fc 10 channel.fix2Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 31/10/2023 Improvement:
  • Increased to 65535 the maximum working hours of the device.
