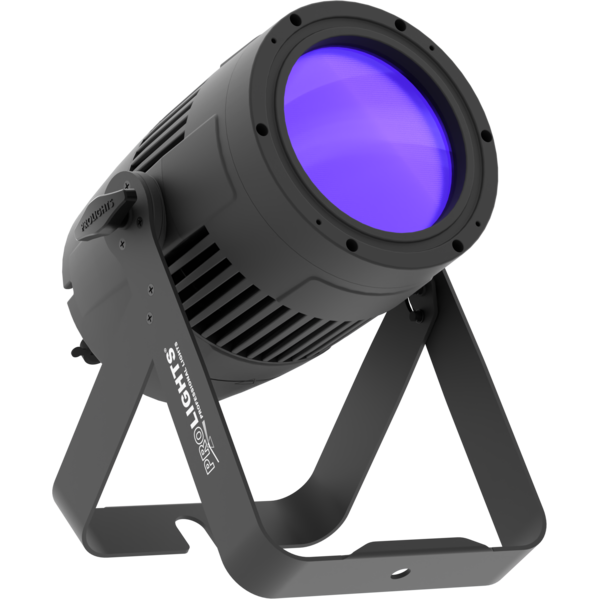

StudioCob PlusUV

ORDER CODE: STUDIOCOBPLUSUV

IP65 UV COB parled with interchangeable optical system

StudioCob PlusUV is a powerful, and incredibly versatile, IP65 rated LED par. Fusing the old and the new it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow, and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 100W real UV COB LED source with HD dimming and extensive, even colour palette
  • Flexible lens options of 18° - 38° - 60°
See variants

PHOTO GALLERY

StudioCob PlusUV
StudioCob PlusUV
StudioCob PlusUV
StudioCob PlusUV

Technical specifications

LIGHT SOURCE
  • Source: 380nm 108W COB UV LED
  • Luminous flux: (18°) without filter: 137,21lm - (18°) with filter: 128,92 lm - (38°) without filter: 129,07 lm - (38°) with filter: 120,63
  • Lux: (18°) 8'963 lx - (38°) 2'018lx @5 m without filter
  • Lux: (18°) 7'481 lx - (38°) 1'830lx @5 m with filter
  • CRI: 55,4
  • R9: 5
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (18°) 15,93° - (18°) with filter 16,49° - (38°) 35,6° - (38°) with filter 36,06°
  • Field angle: (18°) 28,2° - (18°)with filter 30,3° - (38°) 66,1° - (38°) with filter 69,1°
  • Lens diameter: 149.5mm / 5.89''
  • Lens type: UV PMMA lens
  • Additional optics: 18° lens on board and 38° lens in the package
  • Other: 60° lens is not availables for UV version
COLOUR SYSTEM
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Manual mode: manual adjustment of dimmer and strobe
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 5ch
  • RDM: for remote addressing and parameter configuration
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 132W
  • Output (at 230V): 13 units on a single power line
  • Max power consumption (120V): 133W
  • Output (at 120V): 7 units on a single power line
  • Power factor: 0,98 (120V) - 0,90 (230V)
CONNECTIONS
  • Signal connection: 5p IP IN/OUT
  • Power connection: IP IN/OUT power connector
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: low-noise fan with GORE membrane vents
  • Housing: Aluminium body
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 258.5x257x353.6mm / 10.18''x10.12''x13.92''
  • Weight: 5kg / 11.02lbs
INSTALLATION
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
STUDIOCOBBD
STUDIOCOBBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
STUDIOCOBTPG
STUDIOCOBTPG
(Optional)
Filter frame for STUDIOCOB projectors
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStudiocobplusuv_A4_DATASHEET_(EN).pdf(17/01/2023)178KB

User manual

File name File size Download
User manualStudiocobplusuv_USER_MANUAL_ITEN.pdf(20/04/2018)2MB

DMX chart & personalities

File name File size Download
DMX chartStudiocobplusuv_DMX_CHARTS.pdf(23/07/2018)47KB

Photometrics

File name File size Download
PhotometricsStudiocobplusuv_PHOTOMETRICS_REPORT.pdf(01/02/2023)442KB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings

File name File size Download
3D RFAStudiocobplusuv_3D.rvt(09/03/2020)509KB
3D SKPStudiocobplusuv_3D.skp(23/03/2020)2MB
2DStudiocobplusuv_CAD_2D.dwg(30/09/2021)5MB
2D cad symbolsStudiocobplusuv_CAD_2DSYMBOLS.dwg(09/03/2020)25KB
3DStudiocobplusuv_CAD_3D.dwg(26/08/2021)537KB
Technical drawingStudiocobplusuv_TECHNICAL_DRAWING.pdf(30/09/2021)226KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)627KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 19/01/2022 Improvements:
  • Changed KEY LOCK on OFF as default.
1.2 STABLE 17/12/2018 Improvements:
  • Changed BACKLIGHT to 10s as default.
