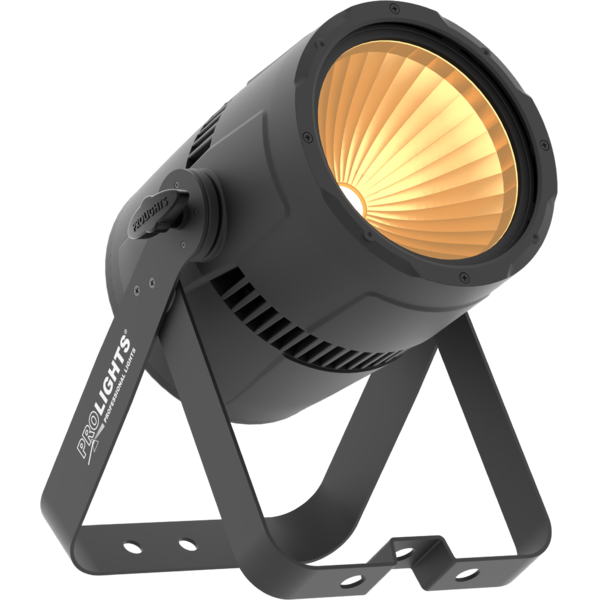

StudioCob TU

100W Tungsten White COB PAR with parabolic reflector

StudioCob TU is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 3.100 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

100W 3.100 K COB LED source with HD dimming and a high CRI
Flexible lens options of 15° - 30° - 60°
Functional barn doors for beam control

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 100W high-power white LED
CCT: 3.100
Luminous flux: 6'697
Lux: (60°) 666lx @3 m
Lux: (30°) 1'540lx @3 m
CRI: 92
R9: 57
TLCI: 88
TM30 Rf: 90
TM30 Rg: 101
Other:
Source life expectancy: > 30.000 hrs (L80B10 @Ta 25° C / 77° F)

OPTICS

Beam angle: 65°
Field angle: 96°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) - 15° (opt)

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black, mirror and white finishing available

CONTROL

Protocols: DMX512
DMX channels: 1 / 2 / 5channel
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 107W
Output (at 230V): 12 units on a single power line
Power factor: 0,94

PHYSICAL

IP rating: 20
Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
Weight: 4,5kg / 9.92lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x STUDIOCOBTU
1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
User Manual

Versions

Code

Housing

STUDIOCOBTUBK

Black

STUDIOCOBTUCR (END OF LIFE)

Chrome

STUDIOCOBTUWH (DISCONTINUED)

White

VIDEOS

Accessories & Related Products

C6002B

(optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

TOUR53415L03

(optional)

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

TOUR53413L03

(optional)

Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

958025L03

(optional)

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m

9513FCAL03

(optional)

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m

9533FCAL03

(optional)

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m

RSR0630B

(optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

STUDIOCOBBD

(optional)

Barn door 4 directional flaps to adjust the light beam, f. frame included

STUDIOCOBL15

(optional)

Optics for STUDIOCOB projectors series, 15°

STUDIOCOBL30

(included)

Optics for STUDIOCOB projectors series, 30°

FCLPAR4190

(optional)

Flight case for 8 STUDIOCOB, VERSAPAR

STUDIOCOBTPG

(optional)

Filter frame for STUDIOCOB projectors

Upbox 1

(optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

UPBOXPRO

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

	File name	File size	Download
	Studiocobtu_A4_DATASHEET_(EN).pdf	439KB
	Studiocobtu_A4_DATASHEET_(IT).pdf	414KB

User manual

	File name	File size	Download
	Studiocobtubk_USER_MANUAL_ITEN.pdf	2MB
	Studiocobtucr_USER_MANUAL_ITEN.pdf	2MB

DMX chart & personalities

	File name	File size	Download
	Studiocobtu_DMX_CHARTS.pdf	45KB

STUDIOCOBTU Firmware rev. 3.2

manufacturer fixture library (Link)	Link
prolights_studiocobtu.d4	Download

manufacturer fixture library (Link)	Link
prolights_studiocobtu_1ch.hed	Download
prolights_studiocobtu_2ch.hed	Download
prolights_studiocobtu_5ch.hed	Download

STUDIOCOBTU Firmware rev. 2.2

manufacturer fixture library (Link)	Link
prolights_studiocobtu.d4	Download

manufacturer fixture library (Link)	Link
prolights_studiocobtu_1ch.hed	Download
prolights_studiocobtu_2ch.hed	Download
prolights_studiocobtu_5ch.hed	Download

Photometrics

	File name	File size	Download
	prolights_studiocobtu_ies files.zip	3KB
	prolights_studiocobtu_ldt files.zip	2KB
	Studiocobtubk_PHOTOMETRICS_REPORT.pdf	2MB
	Studiocobtuwh_PHOTOMETRICS_REPORT.pdf	2MB
	Download DIALux product catalogue	-

CAD symbols & drawings

	File name	File size	Download
	Studiocobtu_3D.rfa	1MB
	Studiocobtu_3D.skp	2MB
	Studiocobtu_CAD_2D.dwg	3MB
	Studiocobtu_CAD_3D.dwg	540KB
	Studiocobtu_CAD_2DSYMBOLS.dwg	80KB
	STUDIOCOBTU_TECHNICAL DRAWINGS.zip	844KB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB
	STUDIOCOBTU_SYMBOLS.zip	3MB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide

Revision	Release date	Firmware changelog	HW Compatibility
Update Tool: UPBOX1UP5 UPBOXPRO
Check hardware changelog before downloading firmware
3.3 STABLE	16/11/2020	Firmware for RUNDA fan. Improved Stand Alone Functionality.
2.3 STABLE	16/11/2020	Firmware for SUNON fan. Improved Stand Alone Functionality.
3.2 STABLE	26/06/2019	Firmware for RUNDA fan. Improved Standalone mode operation (Auto/Static).	Rev. 1.0
2.2 STABLE	26/06/2019	Firmware for SUNON fan. Improved Standalone mode operation (Auto/Static).	Rev. 2
