STUDIOCOBUV
PROLIGHTS
discontinued

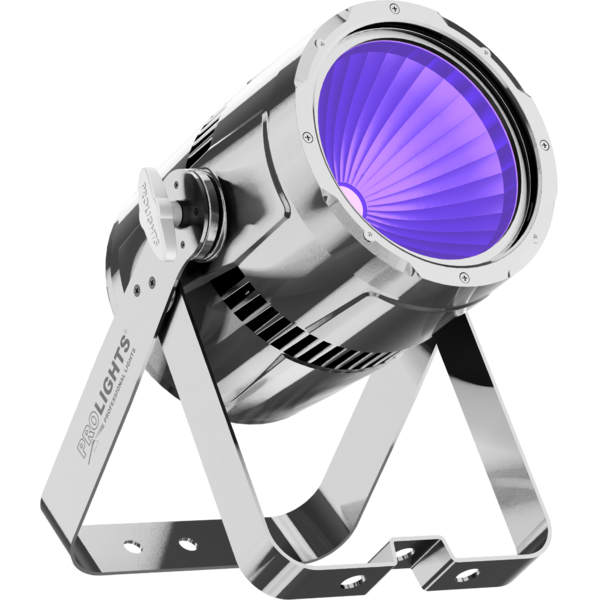

StudioCob UV

100W ultraviolet COB PAR with a parabolic reflector

StudioCob UV is a powerful and incredibly versatile UV LED PAR. Fusing the old and the new, it pairs a UV COB LED source with a traditional parabolic reflector to deliver a proper LED replacement to traditional UV lights.

Main features:

  • 100W UV COB LED source with HD dimming
  • Flexible lens options of 15° - 30° - 60°
  • Functional barn doors for beam control

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 405 nm 100W UV LEDs
  • Luminous flux: 79
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 2 / 5channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 124W
  • Max power consumption (at 120V): 128W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
STUDIOCOBUVBK
STUDIOCOBUVBK (DISCONTINUED)
Black
STUDIOCOBUVCR
STUDIOCOBUVCR (DISCONTINUED)
Chrome

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
STUDIOCOBL30
STUDIOCOBL30
(included)
Optics for STUDIOCOB projectors series, 30°
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBL15
STUDIOCOBL15
(optional)
Optics for STUDIOCOB projectors series, 15°
STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
FCLPAR4190
FCLPAR4190
(optional)
Flight case for 8 STUDIOCOB, VERSAPAR
STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

File name File size Download
User manualStudiocobuv_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
DMX chartStudiocobuv_DMX_CHARTS.pdf37KB
STUDIOCOBUV Firmware rev. 1.6
manufacturer fixture library (Link) Link
prolights_studiocobuv.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studiocobuv_1ch.fdfDownload
studiocobuv_2ch.fdfDownload
studiocobuv_5ch.fdfDownload
studio cob uv_mode1.sslDownload
studio cob uv_mode2.sslDownload
studio cob uv.ssl2Download
manufacturer fixture library (Link) Link
prolights@studio_cob_uv@2_channel@initial.xmlpDownload
prolights@studio_cob_uv@5_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
studio cob uv 2 channel.fix2Download
studio cob uv 5 channel.fix2Download
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 17/12/2018 10 second default display backlight
