SunBar 2000FC

ORDER CODE: SUNBAR2000FC

126K lumens RGBW LED graphic strobe batten with interchangeable lenses

SunBar 2000FC is an exceptionally powerful LED graphic strobe batten featuring also as static blinder and flood. SunBar 2000FC offers flexible control of beam coverage through an interchangeable lens system, passing from 120° wide to 40° beam increasing the light intensity up to x4.
Available in FC/RGBW versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

  • Staggering 126'000 lumen output (strobe) with 120° beam angle
  • Art-Net and DMX control
  • Graphic effects from 16 individually controllable groups of RGBW LEDs

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1.024x1W RGBW LEDs
  • Source CCT: W: 6.500K
  • Luminous flux: Strobe without lens (peak) 126000 lm; Static ON without lens 25774; Strobe with lens (peak) 46200; Static ON with lens 19183
  • Lux: (115°) 1'005 lx - (37°) 3'457lx @3 m full
  • Lux: (115°) 362 lx - (37°) 1'244lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: without lens 115°, with lens 37°
  • Field angle: without lens 155°, with lens 84°
  • Other: Mountable 40° lens reflector plate (included)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed static and dynamic pixel patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: Multi-layer pixel FX control
GOBOS
  • Rotating gobos: dynamic patterns with speed and rotation control
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, Kling-Net
  • DMX channels: from 4 ch to 87ch
  • Pixel control: 1 / 2 / 4 / 8 / 16 individually select and control sections
  • RDM: for remote addressing and parameter configuration
  • Display: black TFT touch display
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): strobe: 987 W - static: 610W
  • Output (at 230V): 3 units on a single power line
  • Max power consumption (120V): strobe: 1.065 W - static: 630W
  • Output (at 120V): 1 units on a single power line
  • Power factor: 0,98
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 1000x75x231mm / 39.37''x2.95''x9.09''
  • Dimensions with PO system (WxHxD): mm / ''
  • Weight: 9,5kg / 20.94lbs
INSTALLATION
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

OS26PLUS
OS26PLUS
(Optional)

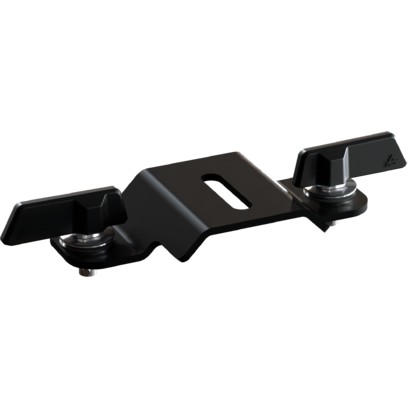

Quick-lock omega bracket, M12 hole
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
FCLSUNBAR
FCLSUNBAR
(Optional)
Flight case for 5pcs of SUNBAR

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSunbar2000fc_A4_DATASHEET_(IT).pdf(30/04/2021)226KB
Letter datasheetSunbar2000fc_A4_DATASHEET_(EN).pdf(02/09/2021)399KB

User manual

File name File size Download
User manualSunbar2000fc_USER_MANUAL_ITEN.pdf(21/03/2019)4MB
User manualSunbar2000fc_NET_PCB_Firmware_Update.pdf(08/01/2024)460KB

DMX chart & personalities

File name File size Download
DMX chartSunbar2000fc_DMX_CHARTS.pdf(21/03/2019)149KB

SUNBAR2000FC Firmware rev. 1.1

manufacturer fixture library (Link) Link
prolights_sunbar2000fc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_sunbar2000fc_advanced+1.hedDownload
prolights_sunbar2000fc_advanced+2.hedDownload
prolights_sunbar2000fc_advanced+3.hedDownload
prolights_sunbar2000fc_advanced+4.hedDownload
prolights_sunbar2000fc_basicpixel.hedDownload
prolights_sunbar2000fc_basicstatic.hedDownload
prolights_sunbar2000fc_basicstrobe.hedDownload
prolights_sunbar2000fc_pixelspixels1.hedDownload
prolights_sunbar2000fc_pixelspixels2.hedDownload
prolights_sunbar2000fc_pixelspixels4.hedDownload
prolights_sunbar2000fc_pixelspixels8.hedDownload
prolights_sunbar2000fc_pixelspixels16.hedDownload
prolights_sunbar2000fc_rgbwstrobe.hedDownload
prolights@sunbar2000fc_adv1@.xmlDownload
prolights@sunbar2000fc_adv3@.xmlDownload
sunbar 2000fc_bck.hog4showDownload
manufacturer fixture library (Link) Link

CAD symbols & drawings

File name File size Download
3D RFASunbar2000fc_3D.rfa(23/04/2021)608KB
3D SKPSunbar2000fc_3D.skp(26/03/2020)253KB
3DSunbar2000fc_CAD_3D.dwg(18/02/2020)642KB
2DSunbar2000fc_CAD_2D.dwg(20/05/2022)7MB
2D cad symbolsSunbar2000fc_CAD_2DSYMBOLS.dwg(09/03/2020)22KB
Technical drawingSunbar2000fc_TECHNICAL_DRAWING.pdf(11/05/2021)1MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(16/02/2022)169KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProfessional Uploader(03/03/2025)19MB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 14/11/2018 Added KlingNet functionality. Rev. 1
Rev. 2
