SUNRISE4
PROLIGHTS
discontinued

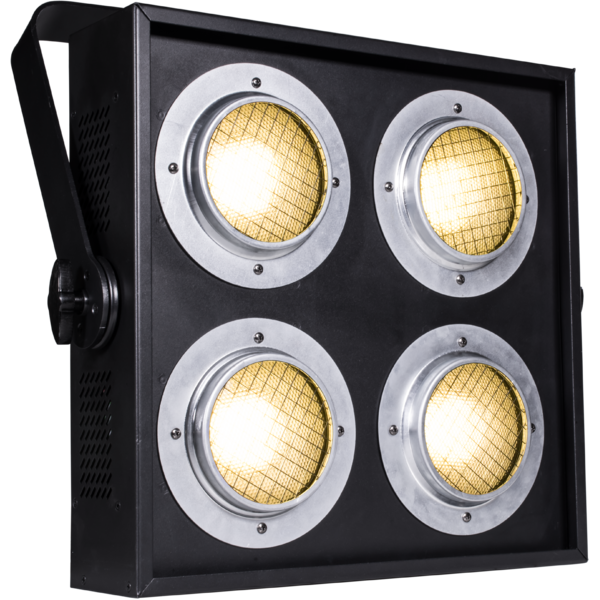

SunRise 4

ORDER CODE: SUNRISE4

4x100W high-efficiency COB LED blinder

SunRise 4 is the first blinder with LED source which equals the brightness of conventional projectors based on the DWE 4x650W halogen lamps. It's equipped with 4x100W COB LED 3.000 K and an optical glass that is able to reproduce the projection angle, colour temperature, dimmer ramp and brightness of a fluorescent bulb. The electronic SunRise 4 also offers many other key points such as the option to control each LED independently in pixel2pixel and the user can take advantage of a dedicated channel for the strobe in addition to the selection of different dimmer curves.

Main features:

  • 4x100W COB LED 3.200 K
  • Outstanding brightness of 22'594 lm, achieve the brightness of classic DWE blinders
  • Pixel control: individual control of each single LED with a selection of dimmer fade
  • No need for dimmers or lamp replacements, LED lifespan > 50.000 h
See variants

PHOTO GALLERY

SunRise 4
SunRise 4
SunRise 4
SunRise 4

Technical specifications

LIGHT SOURCE
  • Source: 4x100W White COB LEDs
  • Source CCT: 3.000K
  • Luminous flux: 22'594 @Full
  • Lux: 957lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 58°
  • Field angle: 85°
  • Lens type: HD anti-reflection lenses with achromatic coating
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 4 / 6 / 9ch
  • Pixel control: pixel2pixel control
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 325W
  • Output (at 230V): 8 units on a single power line
  • Power factor: > 0,95
CONNECTIONS
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Signal connection: XLR 3p + 5p IN/OUT connectors
PHYSICAL
  • IP rating: IP30
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy aluminium profile
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 466x454x128mm / 18.35''x17.87''x5.04''
  • Weight: 10,9kg / 24.03lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSunrise4_A4_DATASHEET_(IT).pdf(30/04/2021)489KB
Letter datasheetSunrise4_A4_DATASHEET_(EN).pdf(02/09/2021)543KB

User manual

File name File size Download
User manualSunrise4_USER_MANUAL_ITEN.pdf(31/05/2017)2MB

DMX chart & personalities

File name File size Download
DMX chartSunrise4_DMX_CHARTS.pdf(22/08/2014)1MB

SUNRISE4 Firmware rev. 2.2

manufacturer fixture library (Link) Link
prolights_sunrise4.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
sunrise4_4ch.fdfDownload
sunrise4_6ch.fdfDownload
sunrise4_9ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@sunrise_4@4_channel@initial.xmlpDownload
prolights@sunrise_4@6_channel@ma_library_update_v15.0.xmlpDownload
prolights@sunrise_4@9_channel@ma_library_update_v15.0.xmlpDownload
manufacturer fixture library (Link) Link
sunrise 4 4 channel.fix2Download
sunrise 4 6 channel.fix2Download
sunrise 4 9 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IEStribe_sunrise4_full.ies(12/08/2020)1KB
LDTtribe_sunrise4_full.ldt(12/08/2020)630KB
PhotometricsSunrise4_PHOTOMETRICS_REPORT.pdf(12/08/2020)2MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings

File name File size Download
3D RFASunrise4_3D.rfa(23/04/2021)452KB
3D SKPSunrise4_3D.skp(27/03/2020)230KB
2DSunrise4_CAD_2D.dwg(25/02/2021)2MB
3DSunrise4_CAD_3D.dwg(18/02/2020)645KB
2D cad symbolsSunrise4_CAD_2DSYMBOLS.dwg(09/03/2020)21KB
Technical drawingSunrise4_TECHNICAL_DRAWING.pdf(25/02/2021)164KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)311KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2 STABLE 03/12/2018 10 second default display backlight
