SWIXSW
SWISSON
discontinued

SWIXSW

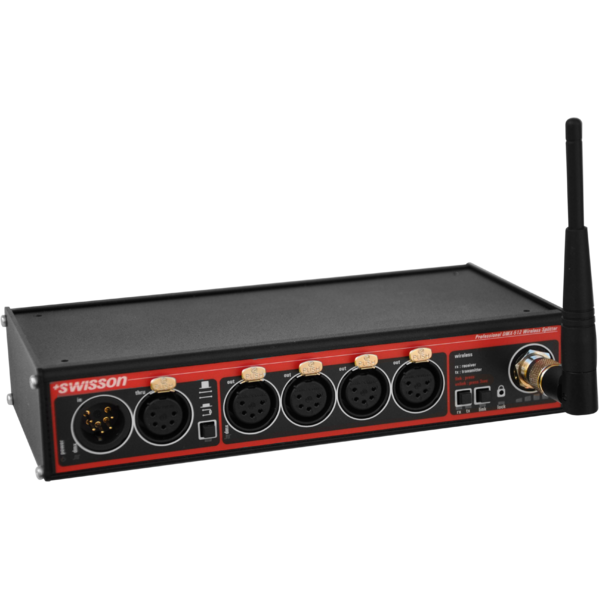

The XSW combines CRMX wireless DMX technology with our entire line of DMX splitters. The XSW can operate as a DMX transmitter or as a DMX receiver at the press of a button. The DMX splitter functionality is always available regardless of whether the device is configured as a transmitter or receiver. If only the splitter function is used, the wireless part is switched off. The splitter offers one input port, a thru port and 4 individually optically isolated output ports. Multiple radio links can be operated at the same time, allowing a setup with multiple DMX Universes. Multiple receivers can be connected to a single transmitter. A variety of wireless configurations can be built up with the same XSW components.


Main features:

  • Wireless DMX transmitter
  • Wireless DMX receiver
  • DMX splitter
  • DMX booster
  • Full individual optical isolation per port
  • DMX termination

PHOTO GALLERY

Technical specifications

Versions

Code
Model
In (pin)
Thru (pin)
Out (pin)
Conn.
SWIXSWTRWDMX3B
SWIXSWTRWDMX3B (DISCONTINUED)
box
3p
3p
4x 3p
XLR
SWIXSWTRWDMX5B
SWIXSWTRWDMX5B (DISCONTINUED)
box
5p
5p
4x 5p
XLR
SWIXSWTRCRMX3B
SWIXSWTRCRMX3B (DISCONTINUED)
box
3p
3p
4x 3p
XLR
SWIXSWTRCRMX5B
SWIXSWTRCRMX5B (DISCONTINUED)
box
5p
5p
4x 5p
XLR
SWIXSWTRWDMX3R
SWIXSWTRWDMX3R (DISCONTINUED)
rack
3p
3p
4x 3p
XLR
SWIXSWTRWDMX5R
SWIXSWTRWDMX5R (DISCONTINUED)
rack
5p
5p
4x 5p
XLR
SWIXSWTRCRMX3R
SWIXSWTRCRMX3R (DISCONTINUED)
rack
3p
3p
4x 3p
XLR
SWIXSWTRCRMX5R
SWIXSWTRCRMX5R (DISCONTINUED)
rack
5p
5p
4x 5p
XLR

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualSwixsw_USER_MANUAL.pdf3MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
