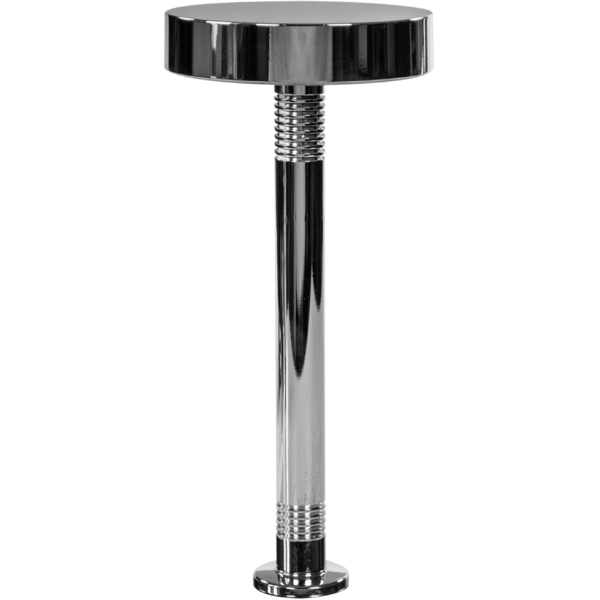

Tabled W

Revolutionary tunable white event battery table lamp

Tabled W is an ingenious product which offers beautiful table lighting for events whilst keeping with the atmosphere in the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control it can either act as a standalone table light or part of a spectacular event lighting package.

Main features:

Battery powered for fast deployment and accurate control
Tunable white LED source with 360° coverage for standard catering round tables of 1.8m
Available in a TABLED-W PACK featuring 4 lights with accessories in an ABS case

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 6x1 W + 6x1W Warm White + Cold White LEDs
CCT: 3.200 K - 5.600
CRI: 80
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 360° designed to light up standard 160/180 cm ceremony tables

COLOUR SYSTEM

Colour mixing: tunable white

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour

BODY

Hardware on-board: magnetic base
Body: sturdy die-cast aluminium body
Body colour: mirror finishing
Other: 1 x TABLEDDSK22W and 1x1 recharger included inside single unit box

CONTROL

Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
IR: infrared sensor controlled by remote (included in the pack, not included in single unit)

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45°

ELECTRICAL

Mains power supply: DC 24 V, 1 A, 24 W
Max power consumption: 9W

BATTERY

Battery: 2.200 m Ah - 14,8V lithium
Estimated battery life in single colour mode up to: W: 14h - A: 14,5h
Estimated battery life in full-mode up to: 8h
Re-charge connection: power supply
Re-charge time: 4h/max
Battery status: LED battery status indicator

PHYSICAL

IP rating: 30
Suspension and fixing: magnetic base to attach on every metal surface
Data connection: infrared sensor controlled
Dimensions (WxHxD): 140x307x220mm / 5.51''x12.09''x8.66''
Weight: 1,16kg / 2.56lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

Versions

Code

Tabled

Extensions

Bases

Recharger

IRC

TABLED-W (END OF LIFE)

x1 TABLEDDSK22W

1x1

TABLED-WPACK (DISCONTINUED)

x2 TABLEDEXT-027

x4 TABLEDDSK22W

1x4

VIDEOS

Accessories & Related Products

RSR0630B

(optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

C6002B

(optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

TABLEDEXT

(optional)

Extension tube for Tabled

IR Controller

(optional)

RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

TABLEDDSK22W

(included)

White disk for TABLED, D 220 mm

TABLEDDSK22MT

(optional)

Transparent disk with magnet for TABLED, D 220 mm

TABLEDDSK28MW

(optional)

White disk with magnet for TABLED, D 280 mm

TABLEDDSK40MW

(optional)

White disk with magnet for TABLED, D 400 mm

Upbox 1

(optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

TABUPBOXI

(optional)

Interface used between UPBOX1U and TABLED for make firmware upgrade

DOWNLOAD

Data sheet & specs

	File name	File size	Download
	Tabledw_A4_DATASHEET_(EN).pdf	251KB
	Tabledw_A4_DATASHEET_(IT).pdf	256KB
	Tabled-wpack_A4_DATASHEET_(IT).pdf	256KB
	Tabled-wpack_A4_DATASHEET_(EN).pdf	251KB

User manual

	File name	File size	Download
	Tabled-w_USER_MANUAL_ITEN.pdf	478KB
	Tabled-wpack_USER_MANUAL_ITEN.pdf	478KB
	Tabledw_USER_MANUAL_ITEN.pdf	478KB
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	Tabledw_GENERAL_SAFETY_INFO.pdf	9MB
	Tabled-wpack_GENERAL_SAFETY_INFO.pdf	9MB

DMX chart & personalities

	File name	File size	Download

Photometrics

	File name	File size	Download

CAD symbols & drawings

	File name	File size	Download
	Tabledw_3D.rvt	394KB
	Tabledw_3D.skp	230KB
	Tabled-w_CAD_3D.dwg	1MB
	Tabled-w_CAD_2D.dwg	570KB
	Tabledw_CAD_2DSYMBOLS.dwg	81KB
	TABLEDW_TECHNICAL DRAWINGS.zip	234KB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB
	VECTORWORKS_SYMBOLS.vwx	179KB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
