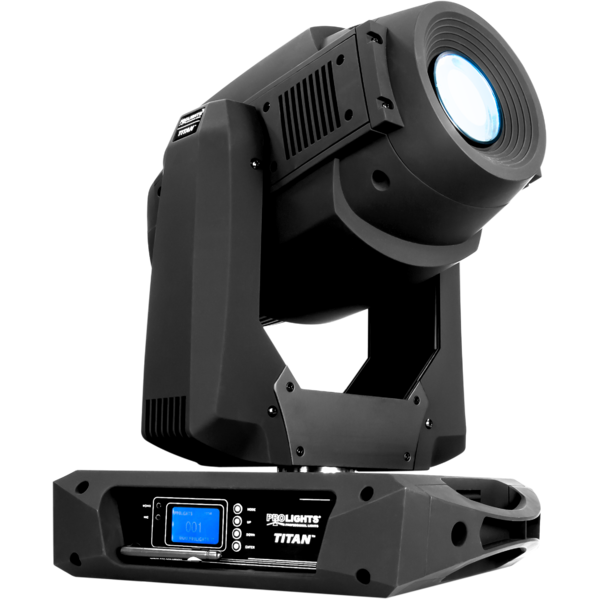

TITAN

ORDER CODE: TITAN

Main features:

---

TITAN is a new generation moving Spot, conceived to combine power, performance, green design and light-weight in the same fixture. The new generation optics combined with the high-efficiency 5R Platinum lamp allow an extreme brightness, higher than traditional fixture with MSI575W, reducing consumptions of 1:2 factor. TITAN offers an unprecedent effect range for such small fixtures as linear 9°-31° zoom, frost, Iris, focus, 14 colours, 18 gobos, 3 facet rotating prism.The special optic and the flexible control possibilities make TITAN a multipurpose fixture for Spot, Wash, Beam applications. The compact sizes (H. 50cm) and its light-weight profile (12,5Kg) make it a suitable fixture to be installed everywhere for Live, TV studio, theatre, showroom and conference event.

Lamp

• Philips MSD Platinum 5R 189W (cod. 800198 included)
• Colour temperature: 8000 K
• Luminous flux: 7.950 lm
• Average life span: 2000 h

Optics

• High definition anti-reflection lenses with achromatic coating
• Parabolic glass reflector with dichroic coating
• 9°-31° electronic linear zoom
• Focus: motorized focusing, from 2 m to infinity

Dimmer / shutter / strobe

• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 8 flash per second

Colour system

• Colour wheel with 14 dichroic filters + open (linear-step-less selection)
• 3200K + 5600K colour temperature filters
• Bidirectional rainbow effect

Effects

• 1st Gobo wheel: 9 dichroic rotating Gobos
• 2nd Gobo wheel: 9 metallic fixed Gobos
• 81 possible overlapping gobos combinations
• “Gobo-shake” effect and continuous rotation
• Easy access to gobo wheel for replacement
• Linear Frost filter for washer performance
• 3 facet prism effect, rotating, indexable, replaceable
• 5-100% motorized iris


Electronics

• LCD display for a simplified access to control menu, configuration and DMX addressing
• 2 DMX configurations available: 15/17 channels for full flexibility and control
• Integrated 2,4GHz WDMX receiver (Wireless solution)
• Input and output signal through XLR 3p and 5p connectors
• Remote ON/OFF lamp control by DMX
• Remote unit reset by DMX
• Electronic self-test and check-up for diagnostics
• Lamp life timer
• Thermal sensor monitoring optimum lamp temperature
• Cooling: filtered forced ventilation with variable speed low-noise fans

Structure and moving body

• Aluminium structure with polycarbonate cover, black colour
• Ergonomic side handles for transportation
• Motion Angle: Pan = 540°  Tilt = 270°
Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
• Feedback automatic repositioning
• Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system

Power supply

• Electronic ballast: 100-240V 50/60Hz universal power supply
• Power consumption: 400W at 230V/50Hz

Weight and dimensions

• Weight: 12,5 kg
• Dimensions (WxHxD): 375x557x365 mm
