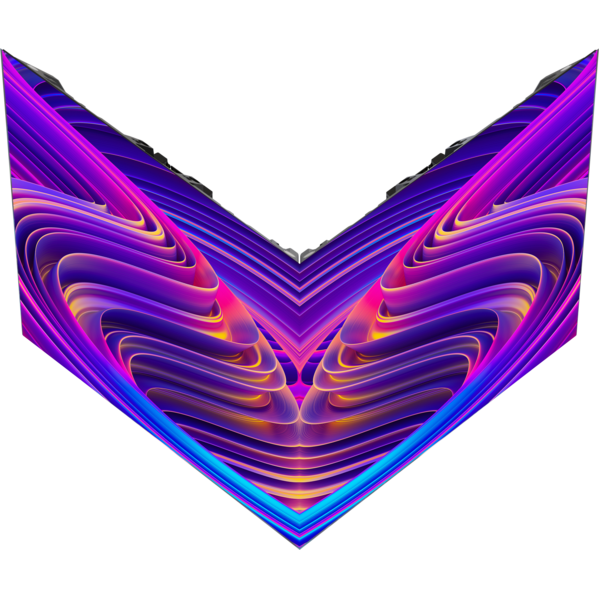

UNIURM3P26CI1X10B
UNILUMIN

URMIII P2.6 XC indoor black face new

ORDER CODE: UNIURM3P26CI1X10B

Indoor LED wall module, SMD1515 BF, XC vers., p.2,6mm, 50x50cm, 192x192pix, 1000nit, 7,2kg

The URMIII P2.6 XC is a premium indoor rental LED display designed for creative setups, live events, and immersive stage designs requiring outstanding image quality and flexible configurations.

With a 2.6 mm pixel pitch and a density of 147,456 pixels/m², it delivers sharp, detailed visuals, ideal for medium viewing distances. Thanks to 3-in-1 Black SMD technology, it offers deeper blacks and vibrant colors, while 1,000 nits brightness and a 5,000:1 contrast ratio ensure vivid and realistic content. The high 7,680 Hz refresh rate provides flicker-free, smooth playback, perfectly suited for broadcast and multimedia environments.

Each cabinet, compact in size and built from die-cast aluminum, weighs only 7.2 kg and is designed for creative setups such as cubes and corners, with full compatibility with standard URM III modules. Both front and rear maintenance options ensure practical and efficient servicing during events.

The URMIII P2.6 XC combines lightweight design, robustness, and efficiency, delivering reliable performance and long-term durability for demanding rental and touring applications.

Main features:

  • High definition: 2.6 mm pixel pitch for detailed, accurate visuals.
  • Powerful brightness: up to 1,000 nits for brilliant, vivid content.
  • Absolute smoothness: 7,680 Hz refresh rate for flawless playback.
  • Contrast and consistency: 5,000:1 ratio with wide 160°/160° viewing angles.
  • Creative freedom: ideal for cube, corner, and curved setups up to ±10°.
  • Lightweight and robust: die-cast aluminum cabinet weighing just 7.2 kg.
  • Versatile mounting: fully compatible with other URM III series modules.
  • Simplified maintenance: front and rear service access for maximum practicality.
  • Efficiency and durability: low power consumption and solid build for intensive use.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: SMD 1515 full black
  • Pixel pitch: 2.6mm / 0.1''
  • Panel resolution: 192x192pixels
  • Module resolution: 96x96pixels
  • Luminous flux: 1000nit
  • Contrast: 5.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 147.456LED/sqm
ELECTRICAL
  • Power input/output: Seetronic powerCON IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 130W
  • Avg power consumption (panel): 45W
  • Max power consumption (sqm): 520W
  • Avg power consumption (sqm): 180W
  • Standby power consumption (pannello): 13W
  • Max rated current/panel:: AC220V / 0.6A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500x73mm / 19.69''x2.87''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7,2kg / 15.87lbs
  • Weight per square meter: 28,8kg / 63.49lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
BODY
  • Body: die-cast aluminium housing
  • Curve configurations: convex and concave -10° / +10°
  • Body colour: black
PHYSICAL
  • IP rating: IP30
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC

Versions

Accessories & Related Products

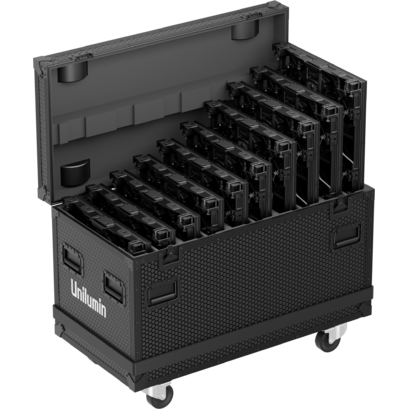

<b>URMIII</b> Flight case 10-in-1
URMIII Flight case 10-in-1
(Optional)
Flightcase 10 in1 for URMIII series
SIGMAXCFM
SIGMAXCFM
(Optional)
Optional female mechanics for SIGMAXC cabinets for corner / cube configurations
SIGMAXCMM
SIGMAXCMM
(Optional)
Optional male mechanics for SIGMAXC cabinets for corner / cube configurations

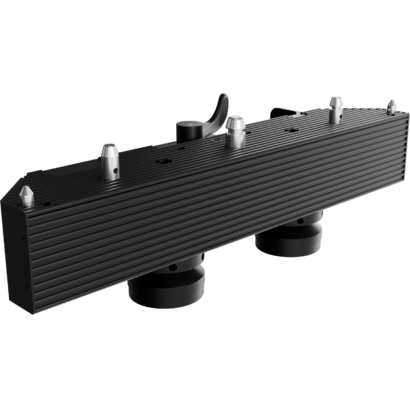

<b>URMIII</b> XC Fly / Ground bars
URMIII XC Fly / Ground bars
(Optional)
Fly bar / ground bar for URMIII XC system
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display

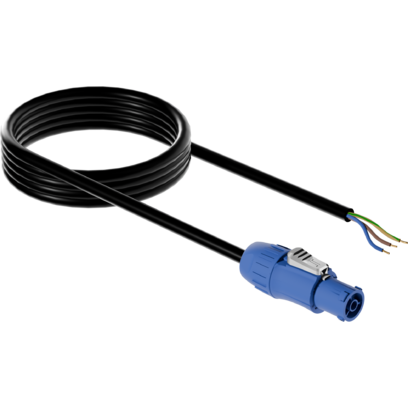

<b>URMIII</b> Indoor Power cables
URMIII Indoor Power cables
(Optional)
Power cable for URMIII Indoor LED Display series, Seetronic, L.1 m

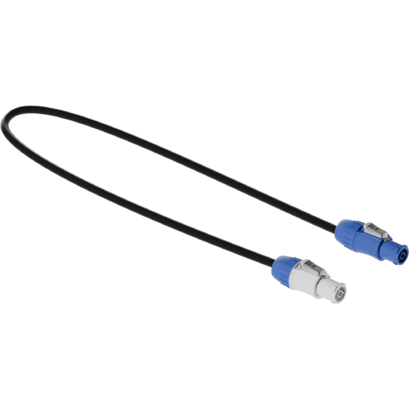

<b>URMIII</b> Indoor Power cables
URMIII Indoor Power cables
(Optional)
Power cable for URMIII Indoor LED Display series, Seetronic, L.10 m

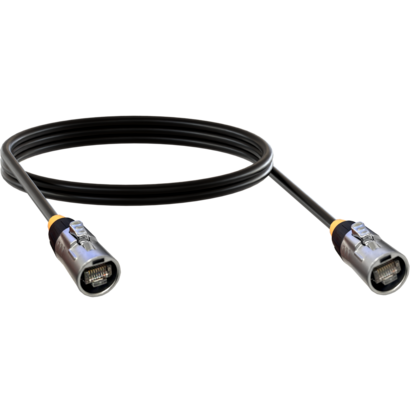

<b>URMIII</b> Indoor Data cables
URMIII Indoor Data cables
(Optional)
Data cable for URMIII LED Indoor Display series assembled with RJ45, L 1 m

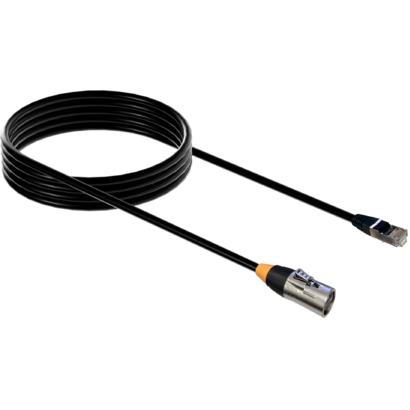

<b>URMIII</b> Indoor Data cables
URMIII Indoor Data cables
(Optional)
Data cable for URMIII Indoor LED Display series assembled with RJ45, L 10 m
FMTOOL
FMTOOL
(Optional)
Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)
MRTOOL
MRTOOL
(Optional)
Mask Replacement TOOL for OMEGAX26B and OMEGAX26BE

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DUniurm3p26ci1x10b_CAD_2D.dwg(17/11/2025)1MB
Technical drawingUniurm3p26ci1x10b_TECHNICAL_DRAWING.pdf(17/11/2025)541KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
