UNIURM3P390O1X20B
UNILUMIN

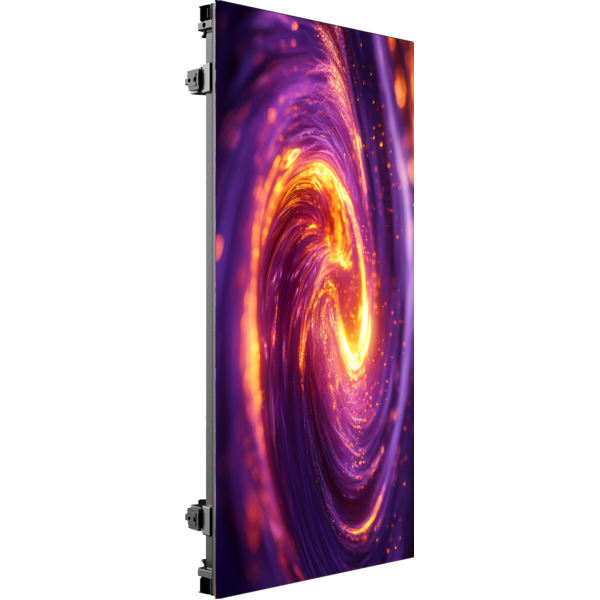

URMIII P3.9 50×100 cm outdoor full black new

ORDER CODE: UNIURM3P390O1X20B

Outdoor LED wall module, SMD1921 BF, p.3,9mm, 50x100cm, 128x256pix, 4000nit, 13,2kg

The URMIII P3.9 50×100 cm is a high-performance outdoor rental LED display, designed for large-scale events, touring productions, and temporary installations that require excellent image quality, durability, and ease of use.

With a 3.9 mm pixel pitch and a density of 65,536 pixels/m², it delivers sharp, clear visuals even at long viewing distances, making it ideal for stages, concerts, and large video walls. The 3-in-1 Black SMD technology enhances contrast and color depth, while 4.000 nits brightness and a 6,000:1 contrast ratio ensure vivid, impactful content even in direct sunlight. The high 7,680 Hz refresh rate guarantees smooth, flicker-free playback, perfectly suited for broadcast and video applications.

Each cabinet, built from die-cast aluminum, measures 500×1000 mm and combines strength with lightweight construction. The click-lock system enables quick installation by a single operator, while reinforced corners and IP65 protection make it reliable for demanding outdoor conditions. Supporting concave and convex curves up to ±10°, it allows creative setups and dynamic stage designs.

With a typical consumption of 90 W for a 50×100 cm cabinet, the URMIII P3.9 50×100 cm ensures energy efficiency, reliability, and long-term durability for intensive rental use.

Main features:

  • High-definition outdoor: 3.9 mm pixel pitch for crisp, clear visuals at distance.
  • High brightness: up to 4,000 nits for perfect daylight visibility.
  • Smooth playback: 7,680 Hz refresh rate for stable, flicker-free performance.
  • Deep contrast and vivid colors: 6,000:1 ratio with Black SMD technology.
  • Robust yet lightweight design: 500×1000 mm die-cast aluminum cabinet.
  • Quick installation: click-lock system for single-operator setup.
  • Comprehensive protection: IP65 weatherproofing and reinforced corners.
  • Creative versatility: supports concave and convex curves up to ±10°.
  • Energy efficiency: low power consumption for sustainable, intensive use.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: Kinglight SMD1921 full black
  • Pixel pitch: 3.9 mm
  • Panel resolution: 128×256pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 4.000nit
  • Contrast: 6.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65.536LED/sqm
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 260W
  • Avg power consumption (panel): 80W
  • Max power consumption (sqm): 520W
  • Avg power consumption (sqm): 160W
  • Standby power consumption (pannello): 18W
  • Max rated current/panel:: AC220V / 1.6A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card: A10S PRO
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration), Dynamic Booster and NCP file support
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×1.000×71mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 13,2kg / 29.1lbs
  • Weight per square meter: 26,4kg / 58.2lbs
  • Hanging Panel Quantity ≤: 10 for hanging and 6 for stacking
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex and concave -10° / +10°
CERTIFICATIONS / REPORTS
  • Compliance: TUV-CE/CB/FCC/IC/UL

Versions

Accessories & Related Products

<b>URMIII</b> P3.9 XS outdoor full black
URMIII P3.9 XS outdoor full black
(Optional)
Outdoor LED wall module, SMD1921 BF, XS ver., p.3,9mm, 50x50cm, 128x128pix, 4000nit, 7kg
<b>URMIII</b> P3.9 XC outdoor full black
URMIII P3.9 XC outdoor full black
(Optional)
Outdoor LED wall module, SMD1921 BF, XC ver., p.3,9mm, 50x50cm, 128x128pix, 4000nit, 7,8kg
<b>URMIII</b> outdoor series  big touring dolly
URMIII outdoor series big touring dolly
(Optional)
12 in 1 (cabinet with wind  frame) or 24 in 1 (cabinet  without wind frame) dolly for URMIII outdoor

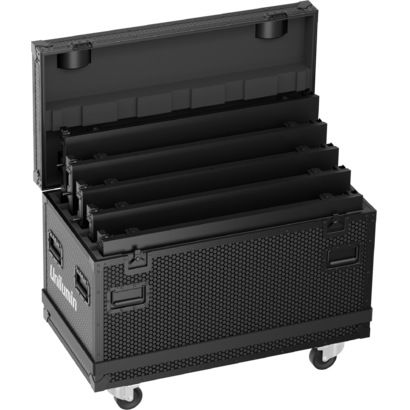

<b>URMIII</b> Flight case 5-in-1
URMIII Flight case 5-in-1
(Optional)
Flightcase 5 in1 for URMIII series

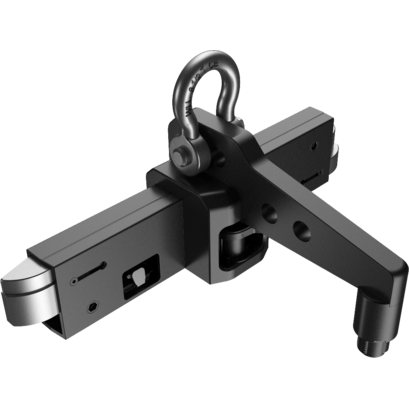

<b>URMIII</b> windframe fly bar
URMIII windframe fly bar
(Optional)
Dedicated fly bar for URMIII 500×1000 mm for the wind-resistant frame systems

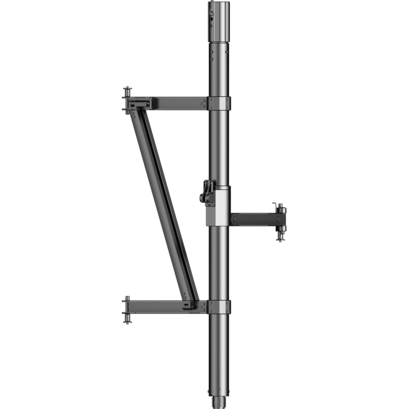

<b>URMIII</b> light windframe
URMIII light windframe
(Optional)
URMIII 500×1000 mm light wind-resistant frame

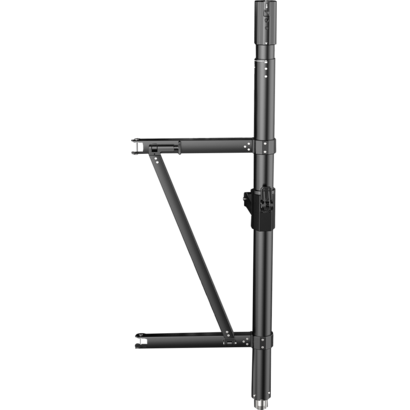

<b>URMIII</b> heavy windframe
